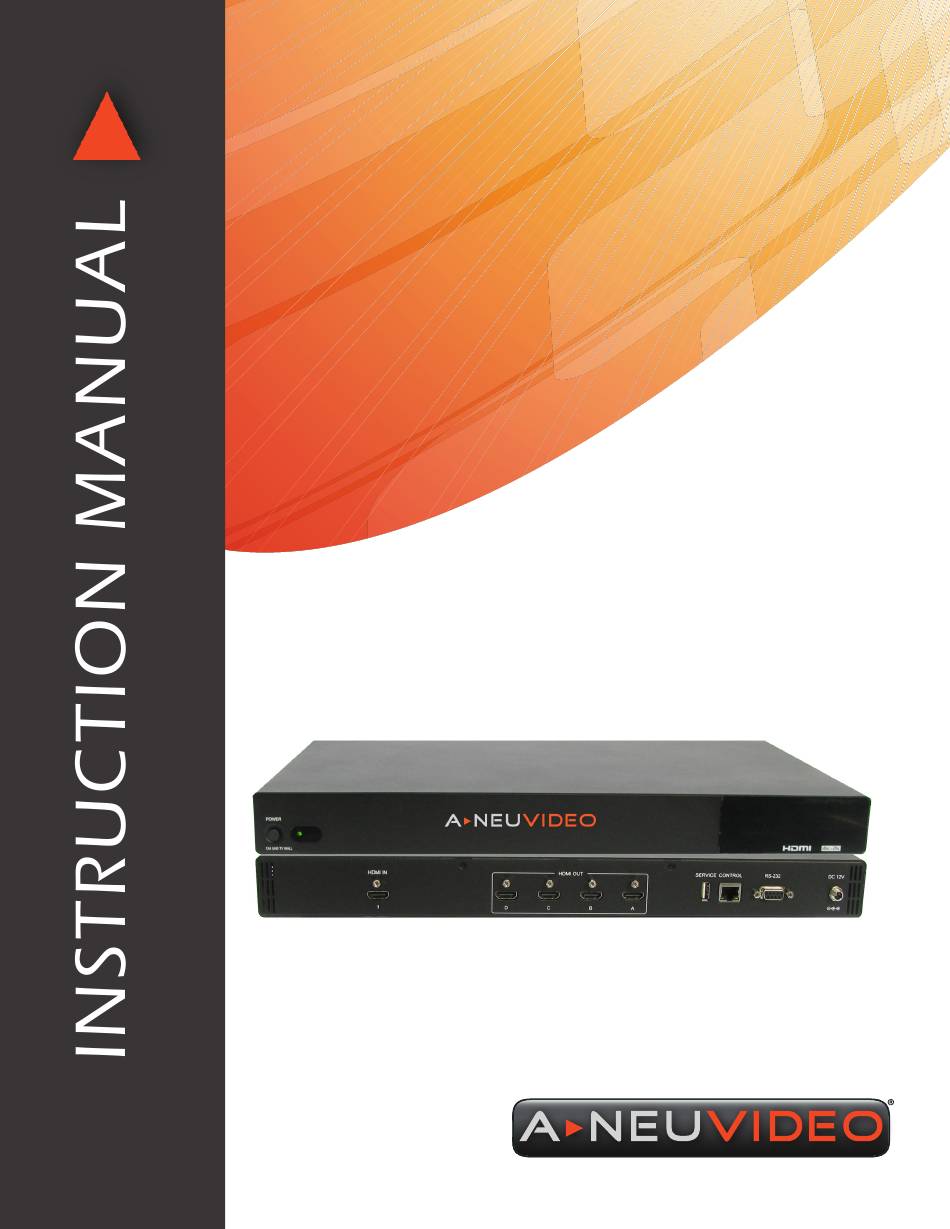

- Page 1 ANI-4K-VW 1x4 HDMI 4K Video Wall Splitter (Cascadable) A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it. The ANI-4K-VW 1x4 UHD TV Wall allows a HDMI 4K2K input • To protect the unit from overheating, do not block any vents or... -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI with 4K2K supported, HDCP and DVI compliant • Output source signal to (4) displays as a full image with adjustable Bezel correction • Supports Input PC resolutions from VGA~WUXGA and HDTV from 480i~1080p and 4K2K@24/25/30Hz •... -
Page 5: Front & Back Panels
This slot is for firmware update use only. Works with the power button. CONTROL: Connects to an active network for Telnet control. Controlled with the “ANI-4K-VW” application for multi-device control. RS-232: Connects from a PC/Laptop with D-Sub 9pin cables for RS-232 command control over the device. -
Page 6: Rs-232 & Telnet Commands
NEUVIDEO RS-232 & Telnet Commands RS-232 Protocols INPUT TIMING SUPPORTED REMOTE CONTROLLER (PC) Baud Rate: 115200bps Definition Definition Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 RS-232 & Telnet Commands COMMAND DESCRIPTION PARAMETER HELP(?) Shows Command List NONE HELP(?) X Shows Command Description... - Page 7 NEUVIDEO RS-232 & TELNET COMMANDS RS-232 & Telnet Commands COMMAND DESCRIPTION PARAMETER ROSDD Requests Current OSD Display State NONE SOSDD X Sets OSD Display to Enable/Disable 0 (OFF), 1 (ON) / X=numbers 0 thru 1 ROSDH Requests Current OSD Horizontal Position NONE SOSDH X Sets OSD Horizontal Position to X...
- Page 8 NEUVIDEO RS-232 & TELNET COMMANDS RS-232 & Telnet Commands COMMAND DESCRIPTION PARAMETER RMUTE Requests Current Mute NONE SMUTE X Sets Mute Audio X=0 (Unmute), 1 (Mute) / X=numbers 0 thru 1 RPOW Requests Current Power State NONE SPOW X Sets the Unit Power On/Off X=0 (Off), 1 (On) / X=numbers 0 thru 1 RVER Requests Version...
-
Page 9: Telnet Control
NEUVIDEO Telnet Control Telnet Control To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” in the search field then press ENTER. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” then press ENTER. -
Page 10: Pc Application Control
PC Application Control Visit A-NeuVideo.com to download the software application for the ANI-4K-VW and execute it to control the Video Wall system. Note: Before installing, remove any former versions that are existing. Once the application is installed successfully, click and open the “Video Wall Set”. - Page 11 NEUVIDEO PC Application Control PC Application Control Connect Interface CONNECT: Click “Connect” to link the unit. DISCONNECT: Click “Disconnect” to terminate the link. MAC: Click on “MAC” with the arrow down button to show all the TV Wall units and select the nominated unit/MAC for connection.
- Page 12 NEUVIDEO PC Application Control PC Application Control TV W all Setup (1) FAST TV WALL SETTING: TV Wall’s fast setting. Click on hot keys to preset the TV Wall setup. TV W all Setup (2) MANUAL SETUP: Manually setup the TV wall’s settings by rows and columns from 1~15 and click “Send”...
- Page 13 NEUVIDEO PC Application Control PC Application Control I/O Setup OUTPUT RESOLUTION & OSD MENU ADJUSTMENT: All settings under I/O Setup can be done with a single TV Wall unit or units with a single click on “ALL IP”. Parameters and default values are as stated in the RS- 232 description parameters.
-
Page 14: Supported Resolutions
NEUVIDEO SUPPORTED RESOLUTIONS Supported Resolutions INPUT RESOLUTION OUTPUT RESOLUTION 640x480@60/72/75/85 640x480 1280x768@60/75 480p@60 (720x480) 1024x768@60/70/75/85 576p@50 (720x576) 1280x1024@60/75 800x600 800x600@56/60/72/75/85 848x480 480p@60 1024x768 576p@50 720p@50 (1280x720) 480i@60 720p@60 (1280x720) 576i@50 1280x768 720p@50/60 1280x800 1080i@50/60 1280x960 1080p@24/50/60 1280x1024 848x480@60 1360x768 852x480@60 1366x768 854x480@60 1400x1050... - Page 15 NEUVIDEO SUPPORTED RESOLUTIONS Supported Resolutions Input Resolution 3840x2160 VIDEO WALL 10x10 15x15 640x480 480p@60 (720x480) 576p@50 (720x576) ...
- Page 16 NEUVIDEO SUPPORTED RESOLUTIONS Supported Resolutions Input Resolution 4096x2160 VIDEO WALL 10x10 15x15 640x480 480p@60 (720x480) 576p@50 (720x576) ...
- Page 17 NEUVIDEO SUPPORTED RESOLUTIONS Supported Resolutions Input Resolution 2048x1080/2048x1152 VIDEO WALL 10x10 15x15 640x480 480p@60 (720x480) 576p@50 (720x576) ...
-
Page 18: Connection & Installation
NEUVIDEO CONNECTION & INSTALLATION... - Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 20 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
