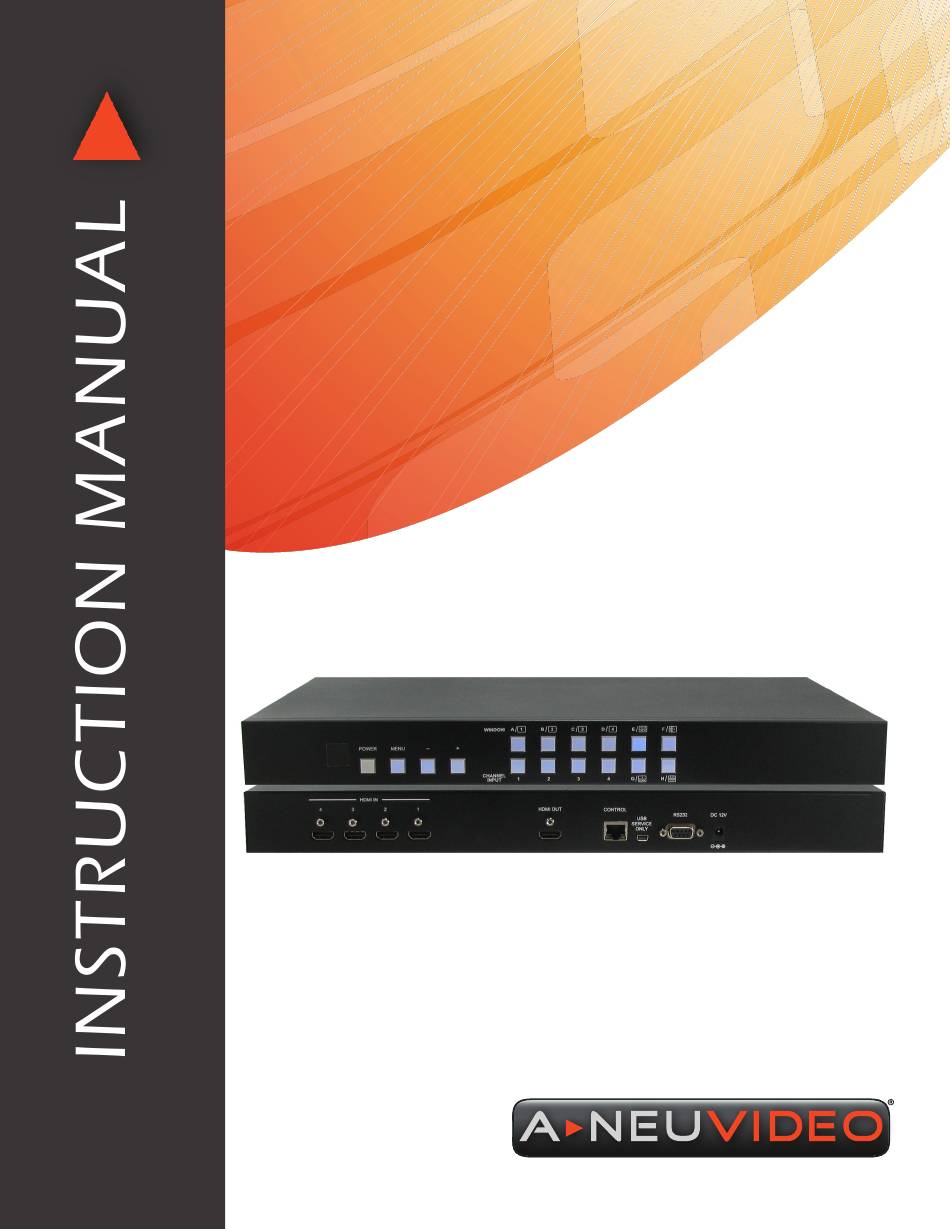

- Page 1 ANI-QUAD-GRPHX 4x1 HDMI Seamless Quad PiP/PoP Scaler With Graphic Insert Overlay Feature A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V1.0 AUDIO / VIDEO MANUFACTURER...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
INTRODUCTION DISCLAIMERS The ANI-QUAD-GRPHX 4x1 HDMI Seamless Quad PiP Scaler is a The information in this manual has been carefully checked and high performance, high speed zooming/shrinking system that can is believed to be accurate. We assume no responsibility for any... -
Page 4: System Requirements
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • Seamless switching between channels and windows • Zoom and Shrink 4CH input images and/or overlay them • Supports PiP, PoP and multi-windows display • Supports OSD, RS-232, Telnet, WebGUI, Remote and on-panel controls • Fade-In-Out, Chromakey, Mirror and Rotation (90˚ left & right and 180˚ up & down) functions •... -
Page 5: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS & FUNCTIONS Front Panel IR WINDOW: Accepts IR signal from the device’s remote control included in the package. POWER: Press this button to power ON the device or set it to standby mode. MENU: Press this button to bring up the OSD menu on screen. -/+ BUTTONS: Press these buttons to scroll up /down the OSD selections. -
Page 6: Output Resolutions
NEUVIDEO Remote Control Output Resolutions POWER: Press this button to switch on the device or press it again to set it to standby mode. INFO: Press this button to show the device’s firmware version. INPUT CH 1~4: Press these buttons to rotate HDMI 1~4 input source on each channel to be display on screen. -
Page 7: Osd Menu
NEUVIDEO OSD MENU OSD MENU Note: Bold or Italic fonts and ( ) figures are factory default setting figures. MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER On/Off On/Off On/Off Image Still Adjust On/Off All Channel On/Off Menu Exit Image Adjust CH 1 CH 2 Swap CH 1 CH 3 Swap CH 1 CH 4 Swap... - Page 8 NEUVIDEO OSD MENU OSD MENU MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Mirror On/Off Off/1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8 Fade In-Out /1.9/2.0/2.1/2.2/2.3/2.4/2.5/2.6/2.7/2.8 Channel 1/2/3/4 /2.9/3.0 Window Convert Convert Rotation L90/R90/180/Off Window Reset Menu Exit Minimum for R/G/B 000~255 (0) User 1 Maximum for R/G/B 222~255 (255) Minimum for R/G/B 000~255 (0)
- Page 9 NEUVIDEO OSD MENU OSD MENU MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Audio Setup Audio Source Mute/CH1/2/3/4 Sys Reset On/Off Screen HDMI Native xxxxxx Information F/W version vx.xx F/W Upgrade Menu Exit Menu Exit * Chromakey Setup works only under CH1& CH2 where CH1 is the background and CH2 is the top layer. This special function is designed for picture overlap video such as news reports, weather forecasts or educational videos.
-
Page 10: Rs-232 Protocols
576i50 720p60 480p60 1080p24 576p50 1080p25 720p50 1080p30 720p60 1080p50 1080i50 1080p60 1080i60 1080p24 1080p50 1080p60 RS-232 Protocols Baud Rate: 115200bps ANI-QUAD-GRPHx REMOTE CONTROL Data Bit: 8 bits ASSIGNMENT ASSIGNMENT Parity: None Flow Control: None Stop Bit: 1 ► ◄... -
Page 11: Rs-232 & Telnet Commands
NEUVIDEO RS-232 & Telnet Commands RS-232 and Telnet Commands COMMAND CODE DESCRIPTION PARAMETER PRINTS ALL AVAILABLE RS-232/TELNET COMMANDS TO THE SCREEN HELP PRINTS ALL AVAILABLE RS-232/TELNET COMMANDS TO THE SCREEN SPOW 0/1 SET THE UNIT POWER ON/OFF 0=OFF, 1=ON RPOW SHOW CURRENT POWER STATE SRES 0~18 SET OUTPUT RESOLUTION... - Page 12 NEUVIDEO RS-232 & Telnet Commands COMMAND CODE DESCRIPTION SYNTAx SSWAP (0~5) SET OUTPUT IMAGE SWAP 0= CH1 CH2 SWAP 1= CH1 CH3 SWAP 2= CH1 CH4 SWAP 3= CH2 CH3 SWAP 4= CH2 CH4 SWAP 5= CH3 CH4 SWAP RSWAP SHOW IMAGE CURRENT INPUT SOURCE 0=CH1 CH2 CURRENT INPUT SOURCE...
- Page 13 NEUVIDEO RS-232 & Telnet Commands COMMAND CODE DESCRIPTION SYNTAx SLABEL N M ASSIGN A PRESET NAME N= CHANNEL 1~4 M= A~Z/0~9…. RLABEL SHOW PRESET NAME TO SCREEN 0=ALL CHANNEL 1~4=CHANNEL 1~4 SSTORE 1~4 SAVE THE CURRENT WINDOW TO FAV1~FAV4 1~4= FAV1~FAV4 SRECALL 1~12 SET A OUTPUT WINDOWS TO WINDOWS A~WINDOWS FAV4 (1) WA...
- Page 14 NEUVIDEO RS-232 & Telnet Commands COMMAND CODE DESCRIPTION SYNTAx SCHRC N M Set the r,G,B COLOr raNGe FOr the ChrOma Key N=0~11 (0) USER1 G MAx (1) USER1 G MIN (2) USER1 R MAx (3) USER1 R MIN (4) USER1 B MAx (5) USER2 B MIN (6) USER2 G MAx (7) USER2 G MIN (8) USER2 B MAx (9) USER2 B MIN...
- Page 15 NEUVIDEO RS-232 & Telnet Commands COMMAND CODE DESCRIPTION SYNTAx SMUTE 0/1 SET MUTE AUDIO 0=MUTE 1= UNMUTED (1) RMUTE SHOW CURRENT MUTE TO SCREEN SAUDIO 1~4 SET OUTPUT AUDIO TO SPECIFIED SOURCE 1~4=INPUT AUDIO RAUDIO SHOW OUTPUT AUDIO SOURCE TO SCREEN SCHRE 0~4 RESET THE WINDOWS E ~ WINDOWS FAV4 0=RESET ALL...
-
Page 16: Telnet Control
NEUVIDEO Telnet Control Before attempting to use the Telnet control, please ensure that both the Scaler (via the ‘CONTROL’ port) and the PC/Laptop are connected to the active networks. To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” in the search field then press ENTER. -
Page 17: Web Gui Interface
NEUVIDEO Web GUI Control On a PC/Laptop that is connected to an active network as the Scaler, open a web browser and type device’s IP address on the web address entry bar. The browser will display the device’s Image Adjust, Output Resolution, and ... etc. Click on the ‘Image Adjust’... -
Page 18: Web Gui Control
NEUVIDEO Web GUI Control Click on the ‘Output Resolution’ tab to set the output display resolution. Clicking on the ‘Windows Setup’ tab to set the output display format. Note: This function is only available under window E~H. - Page 19 NEUVIDEO Web GUI Control Clicking on the ‘OSD/LOGO Settings’ tab to set the OSD & LOGO’s function and position. Load and upload logo can also be done under this page. Upload procedure please refers to the rear panel description of USB SERVICE ONLY port. Clicking on the ‘Window Convert’...
- Page 20 NEUVIDEO Web GUI Control Clicking on the ‘Chromakey Setup’ tab to set the output display color. Note: This function is only available under window A~D. Clicking on the ‘Ethernet’ tab to reset the IP configuration. The system will ask for a reboot of the device every time when any of the settings are changed.
-
Page 21: Connection & Installation
NEUVIDEO CONNECTION & INSTALLATION... - Page 22 THIS PAGE IS INTENTIONALLY LEFT BLANK.
-
Page 24: Terms And Conditions Of Use
BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
