Summary of Contents for A-Neuvideo ANI-353

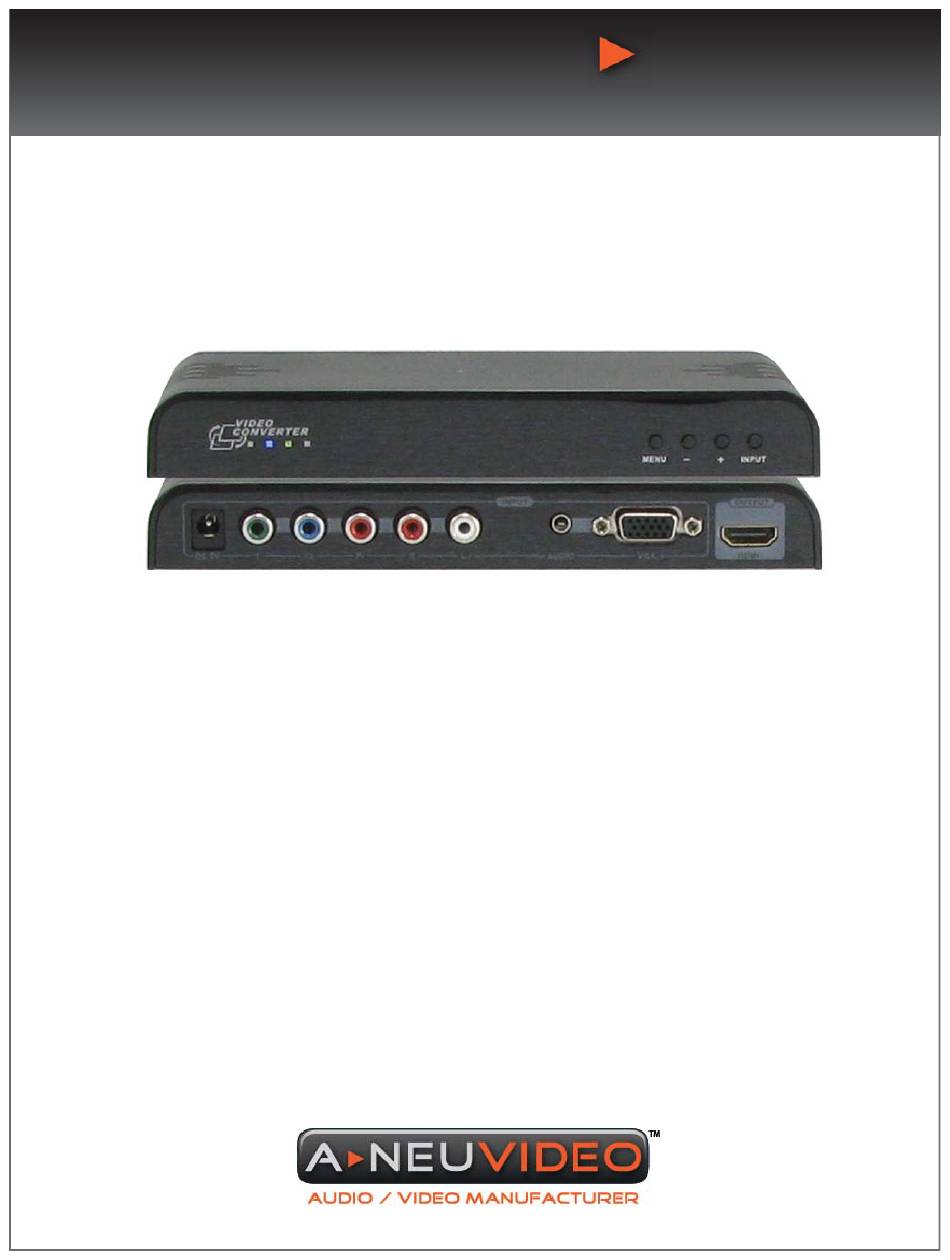

- Page 1 ANI-353 CVBS/YPbPr/VGA to HDMI Converter INSTRUCTION MANUAL A-NeuVideo.com | Frisco, Texas 75034 (317) 456-2461 V.1.1...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
We assume no responsibility for any inaccuracies that may be carton: contained in this document. We make no commitment to update or • ANI-353 Converter box to keep current the information contained in this document. • 3.5mm audio cable We reserve the right to make improvements to this document and/ •... -
Page 4: Specifications
SPECIFICATIONS SPECIFICATIONS Supports VGA Input Resolutions: • Supports adjust phase position, underscan, overscan, automatically. • Resolutions supported: • 640x480 (60Hz) • 800x600 (60Hz) • 1024x768 (60Hz) • 1280x720 (60Hz) • 1280x768 (60Hz) • 1280x960 (60Hz) • 1280x1024 (60Hz) • 1360x768 (60Hz) •... -
Page 5: Installation And Operation
INSTALLATION & OPERATION INSTALLATION STEPS 1. Connect the converter to CVBS/YPbPr/VGA port of the source with CVBS/YPbPr/VGA cable. 2. Connect the converter to the HDTV with HDMI cable, then power on the converter, and switch the TV to the corresponding channel. OPERATION 1. -
Page 6: Oso Menu Option
OSO MENU OPTION Buttons on converter box Enter Select Exit ● ● ● ● ● MENU MENU INPUT (left/right/down) MENU OPTION SELECTION 1. Press “MENU” to open the main menu. 2. Press “+” “-” to select the option to adjust. 3. - Page 7 OSO MENU OPTION SETTING OPTION 1. Press “MENU” to open setting option. 2. Press “+” “-” to adjust the value of the parameter. 3. Press”INPUT” to exit the menu. Output resolution: 720p@50Hz, 720p@60Hz, 1080p@50Hz,1080p@60Hz (default 1080p@60Hz) Sound mode: Standard/Concert/Movie (default: Standard) Volume: 0-100 Ratio: 4:3 16:9 16:10 Auto (default:16:9) VPbPr: 4:3 16:9 16:10 Auto...
-
Page 8: Connection Diagram
CONNECTION DIAGRAM CONNECTION DIAGRAM Take Windows XP as an example and the windows system settings as shown above: 1. Right click the mouse on desktop of computer then left click ‘Properties’ . 2. Left click ‘settings’ to adjust the resolution (please refer to the VGA resolutions supported list of the converter. 3. - Page 9 BY, THROUGH OR UNDER A-NEUVIDEO, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-Neuvideo, Inc. at the return address set forth on the Product’s packing label at your expense.
