See also: Homeowner's Installation and Operating Manual , Owner's Manual

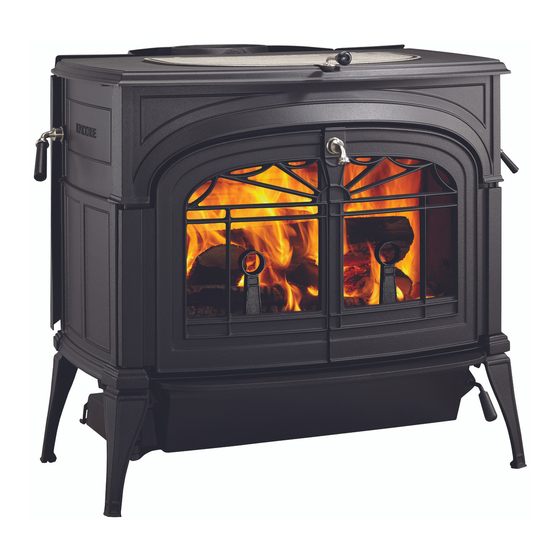

Encore
FlexBurn
®
Wood Burning Stove
Installation and Operating Manual
Model 2040
Report No. 227-S-42-2
SAFETY NOTICE: IF THIS APPLIANCE IS
NOT PROPERLY INSTALLED, OPERATED
AND MAINTAINED, A HOUSE FIRE MAY
RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW
THE INSTALLATION INSTRUCTIONS. FAIL-
URE TO FOLLOW INSTRUCTIONS MAY
RESULT IN PROPERTY DAMAGE, BODILY
INJURY OR EVEN DEATH. CONTACT LO-
CAL BUILDING OFFICIALS ABOUT RE-
STRICTIONS AND INSTALLATION INSPEC-
TION REQUIREMENTS IN YOUR AREA.
The French language version of this manual is available online:www.vermontcastings.com
La version française de ce manuel est disponible en ligne : www.vermontcastings.com
DO NOT DISCARD THIS MANUAL. RETAIN FOR FUTURE USE.
Non-Catalytic/Catalytic
®
For use in the
United States and Canada
2425
Encore NC Cover
5/05
30005295 0515 Rev. 23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vermont Castings 2040

Summary of Contents for Vermont Castings 2040

  • Page 1 FlexBurn Non-Catalytic/Catalytic ® ® Wood Burning Stove Installation and Operating Manual Model 2040 Report No. 227-S-42-2 SAFETY NOTICE: IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, OPERATED For use in the AND MAINTAINED, A HOUSE FIRE MAY United States and Canada RESULT.
