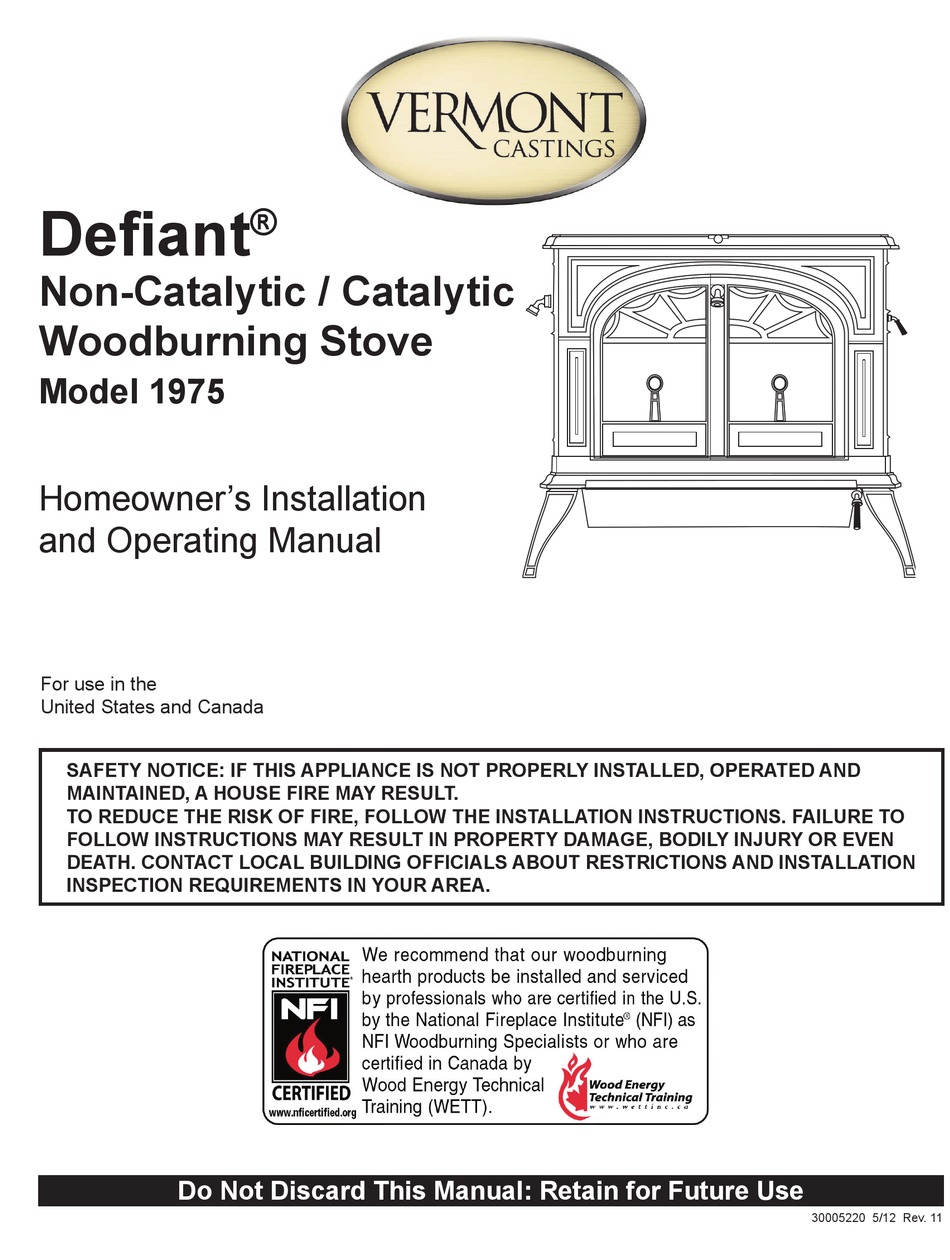

Defiant
Non-catalytic / catalytic
woodburning Stove
Model 1975
Homeowner's Installation
and Operating Manual
For use in the
United States and Canada
SaFeTy NoTice: iF ThiS appliaNce iS NoT pRopeRly iNSTalleD, opeRaTeD aND
MaiNTaiNeD, a hoUSe FiRe May ReSUlT.
To ReDUce The RiSk oF FiRe, Follow The iNSTallaTioN iNSTRUcTioNS. FailURe To
Follow iNSTRUcTioNS May ReSUlT iN pRopeRTy DaMage, boDily iNjURy oR eveN
DeaTh. coNTacT local bUilDiNg oFFicialS aboUT ReSTRicTioNS aND iNSTallaTioN
iNSpecTioN ReqUiReMeNTS iN yoUR aRea.
Do Not Discard This Manual: Retain for Future Use
®
Nous recommandons que nos appareils de chauffage
au bois soient installés et entretenus apr des
professionnels qui ont été accrédités aux É.-U. par le
National Fireplace Institute® (NFI) comme étant des
spécialistes du NFI en matière d'appareilsde chauffage
au ois, ou qui sont accrédités au Canada
0968
Defiant cover
11/00
30005220 5/12 Rev. 11

Advertisement

Table of Contents
