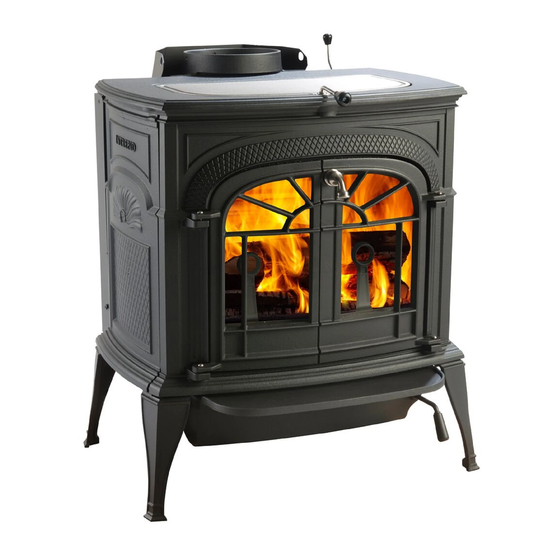

Intrepid flexburn wood burning stove
Hide thumbs Also See for 2115:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE: SAVE THESE INSTRUCTIONS
Intrepid FlexBurn
Model 2115 / 2115-CAT
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
To obtain a French translation of this manual, please
contact your dealer or visit www.vermontcastings.com
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
vermontcastings.com
3-90-30007345c
Owner's Manual
Operation & Care
Wood Burning Stove
®
NOTE
Vermont Castings • Intrepid FlexBurn
If the information in these instructions is not
followed exactly, a fire may result causing
property damage, personal injury, or death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void your
warranty.
• Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fireplace.
•
Alert children and adults to hazards of high
temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
Owner's Manual_R2 • 2018 - ___ • 07/18
®
!
WARNING
!
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
1
