Getting Started
I I d d e e n n t t i i f f y y i i n n g g P P a a r r t t s s o o f f t t h h e e D D i i s s k k A A r r r r a a y y
F F r r o o n n t t V V i i e e w w

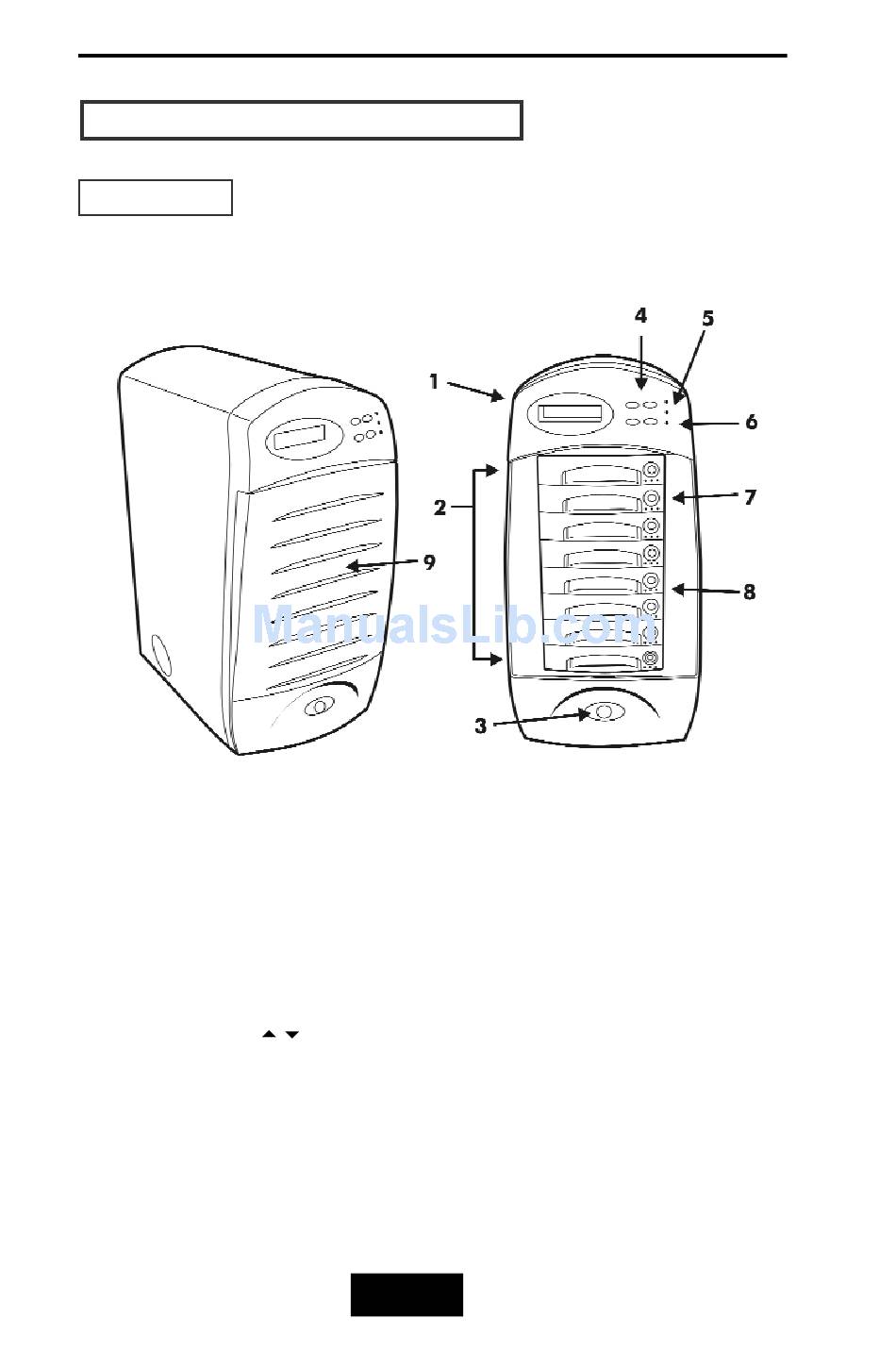

Figure : Front View
1. LCD Status Display Panel
2. HDD Trays 1 ~ 8
3. Power Supply State Indicator (light up Green / Red)

4. Function Keys (

, Enter , ESC )
5. Power-On Indicator (PWR Unit 1, PWR Unit 2)
6. Host Computer Access Indicator
7. HDD Tray Lock ( Lock / Unlock )
8. HDD Status Indicator
( From left to right: Error (Red), Access (Yellow), Power-On (Green) )
9. Front Cover
