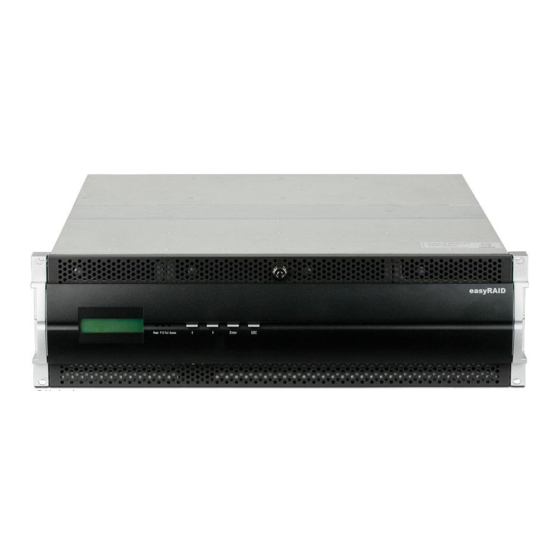

- Page 1 Q16Q-2GR3 Hardware User Manual iSCSI 1Gb to Serial ATA II Disk Array Systems Version 1.1...
- Page 3 Q16Q-2GR3 iSCSI 1Gb to Serial ATA II Disk Array System Hardware User Manual...
-
Page 5: Table Of Contents
Components ......................4 Closed Front Panel ................... 4 Open Front Panel ..................... 5 Disk Tray ......................6 easyRAID Q16Q-2GR3 Rear View ..............7 Installing Disks ...................... 9 Making Connections ................... 10 Connecting the Host Interface ................ 10 Connecting a network ..................10 Connecting and Turning on the Power ............ -
Page 7: Preface
Preface About this Manual This manual is designed to make the disk array system as easy to use as possible. Information contained in this document has been checked for accuracy, but no guarantee is given that the con- tents are correct. Information and specifications are subject to change without notice. Copyright Notice ©... - Page 8 Q16Q-2GR3 Serial ATA II Disk Array Systems Important Safety Instructions, Care and Handling Before starting, take a few minutes to read this manual. Read all of these instructions and save this manual for later reference. Protect the disk array system from extremely high or low temperatures.
- Page 9 Q16Q-2GR3 Serial ATA II Disk Array Systems The appliance must be grounded. The disk array system is equipped with a 3-wire grounded type of power cord. This power cord will only fit into a grounded type of power outlet.
- Page 10 Q16Q-2GR3 Serial ATA II Disk Array Systems Placement Notes • The disk array system LCD panel can be damaged by exposure to direct sunlight. Limit exposure to subdued or indirect sunlight only. • The disk array system should be used only in clean environments that are free from airborne contaminants such as dust, dirt, and smoke.
-
Page 11: Chapter 1 System Requirements
1 System Requirements Ensure that the following requirements are met before installing the disk array system. Operating Environment • 15 cm (6-inches) of space around the disk array system for proper ventilation • ambient temperature of 5°C to 40°C (40°F to 104°F) •... -
Page 13: Chapter 2 Basic Configuration
2 Basic Configuration This chapter describes disk array system connections and disk installation. Unpacking Contact your supplier if any of the following items are missing or damaged. Caution The disk array system is heavy. Be careful when lifting and moving it. Disk Array System Rails Rail Extenders... -
Page 14: Components
Q16Q-2GR3 Serial ATA II Disk Array Systems Components Closed Front Panel Power P/S Fail Access Enter Name Description Displays warning, operating, and configuration LCD panel information. Power-on indicator Indicates the disk array system power is on. Power supply fail indicator Indicates a failed power supply. -
Page 15: Open Front Panel
Q16Q-2GR3 Serial ATA II Disk Array Systems Open Front Panel 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Tray LED Indication Color Status Bule Access Green Disk Online No Disk Name... -
Page 16: Disk Tray
Q16Q-2GR3 Serial ATA II Disk Array Systems Disk Tray Front Name Description Power/Error indicator LED Different colors indicate different disk states: • Green – Disk online • Orange – Disk full • Red – No disk This blue LED indicates that the disk is being Access indicator LED accessed. -
Page 17: Easyraid Q16Q-2Gr3 Rear View
Q16Q-2GR3 Serial ATA II Disk Array Systems easyRAID Q16Q-2GR3 Rear View Host 1 Host 2 Term Name Description Cooling fan 1 System cooling fan. Host Port 1 Connects to the host server. (Primary SCSI channel) Host Port 2 Connects to the host server. -
Page 18: Installing Disks
Q16Q-2GR3 Serial ATA II Disk Array Systems Installing Disks This section describes how to install disks in the disk array system. 1 Unlock the front panel door, then pull it open. Tray LED Indication Color Status Bule Access Green... - Page 19 Q16Q-2GR3 Serial ATA II Disk Array Systems 5 Slide the disk tray back into the empty slot (A), then slowly close the disk tray handle (B). 6 Repeat steps 2 to 5 until all of the required disks have been installed.
-
Page 20: Making Connections
The easyRAID Q16Q-2GR3 has network cable interfaces. Follow these instructions to make connections. 1 Connect the SCSI terminator (A) to the right connector of the easyRAID Q16Q-2GR3 host port 1 (primary iSCSI channel) at the rear of the disk array system. -
Page 21: Connecting And Turning On The Power
Q16Q-2GR3 Serial ATA II Disk Array Systems Connecting and Turning on the Power 1 Plug a power cable (A) to a power connector at the rear of the unit, then plug the second power supply cable into the second power connector (B). -
Page 22: Mounting In A Rack
Q16Q-2GR3 Serial ATA II Disk Array Systems Mounting in a Rack When the disk array system is completely set up, it can be installed in a standard 19-inch rack. Follow the instructions in this section to install the disk array system in a rack. -
Page 23: Installing The Rail Extenders
Q16Q-2GR3 Serial ATA II Disk Array Systems Installing the Rail Extenders Follow these instructions to fit the rail extenders if required. 1 If required, bolt the rail extenders into place as shown using the small bolts provided. 2 Slide the disk array system into the rack and bolt it into place with the supplied fixing screws. -
Page 25: Chapter 3 Maintenance
3 Maintenance Replacing a Disk A disk failure is indicated when the Power/Error LED at the front of the drive tray turns red and the audible alert sounds. Note Turn off the audible alert by pressing the Up and Down function but- tons on the front panel twice simultaneously. -
Page 26: Replacing A Power Supply
Q16Q-2GR3 Serial ATA II Disk Array Systems Replacing a Power Supply The disk array system is equipped with a Power Supply Fail Indicator LED at the front of the unit that turns red when one of the power supplies fails. The message “Power x failure” also appears on the LCD panel, where x refers to power supply 1, or 2, and an audible alert sounds. - Page 27 Q16Q-2GR3 Serial ATA II Disk Array Systems 4 Pull the power supply handle out. 5 Remove the faulty power supply by pulling the power supply handle A and pressing the release catch B at the same time. Release catch 6 Insert a new power supply.
-
Page 28: Upgrading Memory
Q16Q-2GR3 Serial ATA II Disk Array Systems Upgrading Memory The disk array system takes a single DDR-333 184-pin DIMM with a maximum capacity of 1 GB. Follow these instructions to upgrade the memory. 1 Loosen the screws holding the controller cage in place. - Page 29 Q16Q-2GR3 Serial ATA II Disk Array Systems 4 Gently push the new DIMM into the socket, then push the corners of the DIMM down. The DIMM is secured by the DIMM retaining clips. Note The DIMM module will fit in only one direction. Do not force the DIMM into place.
-
Page 31: Appendix
Appendix Hardware Specifications Item Specification Host Interface Dual channel(2) RJ45 Network Connectors Disk Interface SATA II, 3.0 Gb/s Dimensions 132 mm (H) x 447 mm (W) x 574 mm (D) Weight 19 Kg without disks RAID Functions • Raid levels: JBOD, 0, 1, 0+1, 3, 5, 10, 30, 50, 6, 60 •... - Page 32 Q16Q-2GR3 Serial ATA II Disk Array Systems Item Specification Controller Intel i80331 64-bit RISC microprocessor Disk Interface SATA II (3.0 Gb/s) Disk Channels 16 channels Disk Interface Chipset Marvell MV88SX8050 Memory Type DDR-333 184-pin DIMM Memory Sockets Memory Size...
