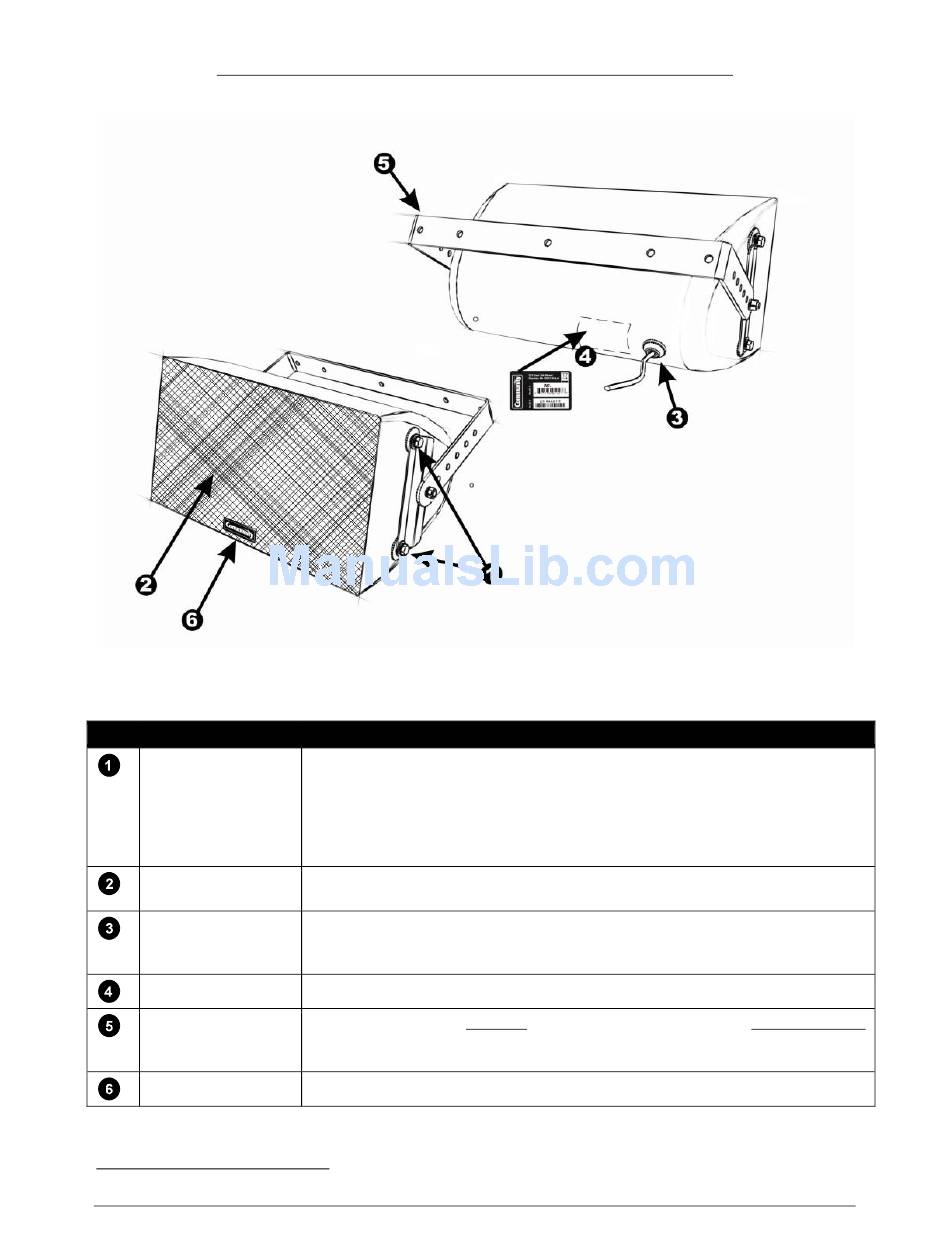

Figure 1 - Physical Features of a Typical Large WET II Enclosure

NO. FEATURE
MOUNTING/RIGGING
2
POINTS
GRILLE
INPUT CABLE
WET II LABEL
MOUNTING YOKE
NAMEPLATE
2
150 lbs (68 kg) Working Load Limit / 15:1 Safety Factor
DESCRIPTION
½"-13 captive zinc plated inserts with ½"-13 x 2" stainless steel bolts and lock,
flat and rubber washers. Used for attaching the yoke mounting brackets or
customer-supplied mounting system.
W2-218, W2-228 and W2-2W8 include two ½"-13 rigging points.
W2-112 and W2-312 include four ½"-13 rigging points.
W2-215, W2-322L, W2-315, W2-122 and W2-125 include six ½"-13 rigging points.
Powder-coated perforated steel backed by reticulated foam and a UV-resistant
layer of fine-mesh screen. Supplied, mounted to front of enclosure.
For signal connections to the loudspeaker. About 12 feet of 16-2 SJOW (or 18-
gauge, 5-conductor, UV-resistant for 70V/100V models) retained by a factory-
sealed gland nut.
Model number, coverage pattern and serial number.
The yoke shown is an optional mounting kit (model SSY25KIT) sold separately
for W2-312 and W2-112 that utilizes two metal plates in addition to a yoke
bracket for added safety.
Community logo.
Community WET II - Operation and Installation Manual - Page 12
