Summary of Contents for Phonak eXtra 11 CIC/MC

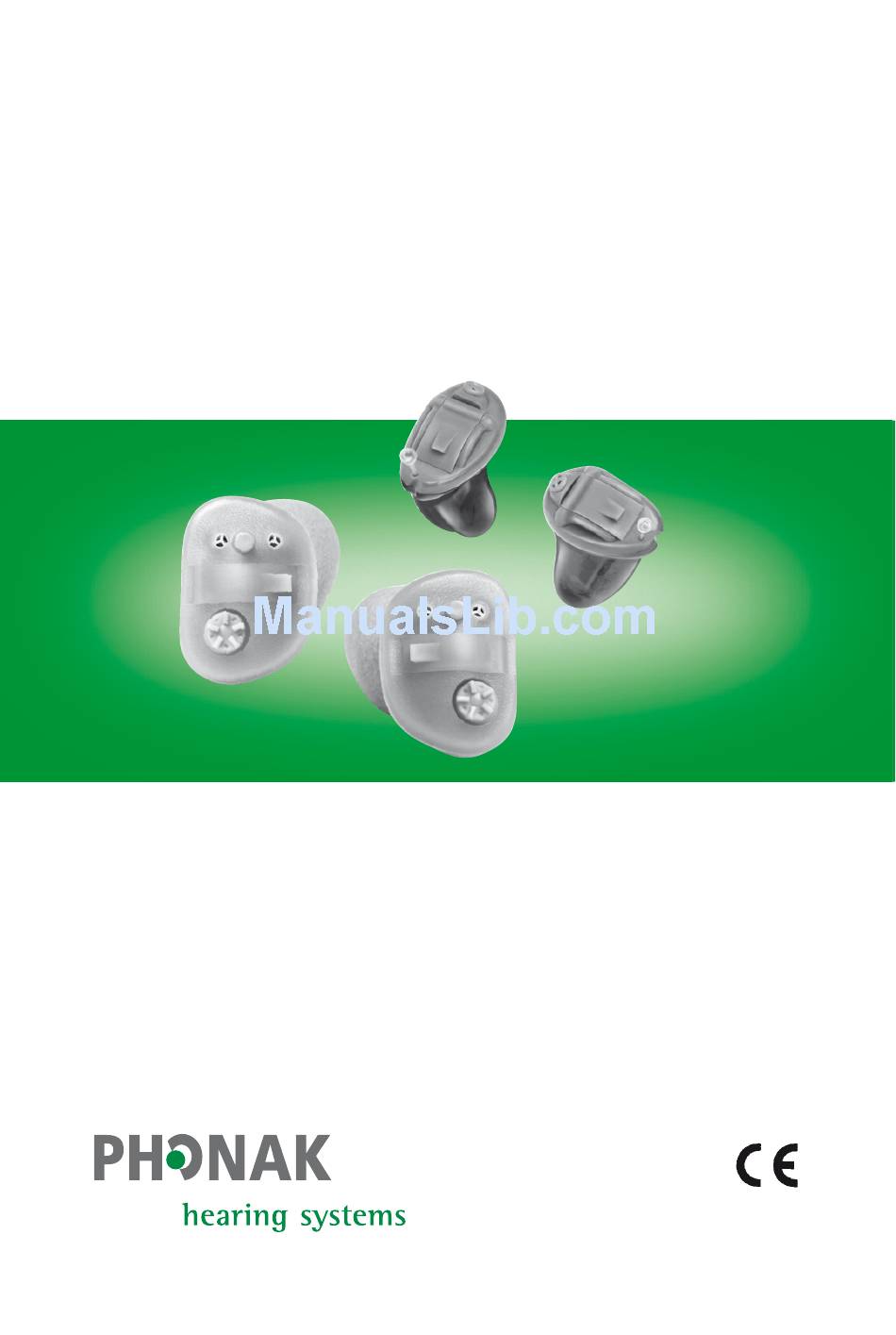

- Page 1 eXtra ™ User Guide 0459...
-
Page 2: Table Of Contents
Description Preparation Replacing the battery Inserting eXtra in your ear Removing eXtra from your ear Operation Switching ON/OFF Controlling the volume (optional) Selecting a hearing program Telecoil (optional) EasyPhone (optional) Maintenance Important points Warning Service and Warranty Phonak distributors worldwide... -
Page 3: Welcome
Ask your hearing care professional if you have any questions. eXtra is a quality product developed by the Swiss company Phonak, a world leader in hearing technology, innovation and reliability. With proper care and usage, your eXtra hearing system will support your hearing and understanding for many years. -
Page 4: Description
Description eXtra 11 CIC/MC Standard Battery size 10 eXtra 22 ITC/HS eXtra 22 ITC/HS AZ Standard Battery size 312... - Page 5 eXtra 33 FS eXtra 33 FS AZ eXtra 33 FS Power Standard Battery size 13 Protected Microphone Input (2 on models with AudioZoom technology) Battery compartment with ON/OFF Program switch (optional) Volume control (optional) with ON/OFF Receiver (Sound outlet) Custom made shell Removal handle (eXtra 11 only)
-
Page 6: Preparation
Preparation Replacing the battery 1) Remove the protective foil from the new battery. 2) Hold the hearing system with the battery compartment upwards and open the battery cover. - Page 7 3) Remove the old battery. 4) Insert the new battery. Please ensure that the “+” sign on the battery (flat side) is on the same side as the “+” sign on the battery cover.
- Page 8 Preparation 5) Gently shut the battery cover, until you feel it “click” into place.
- Page 9 Replacing the battery Handle the battery cover gently and do not use excessive force. Do not try to open the cover further than shown on the drawing. If there is any resistance when closing the cover, ensure that the battery is correctly inserted. The cover will not close if the battery is inserted upside down.
-
Page 10: Inserting Extra In Your Ear
Preparation Inserting eXtra in your ear If possible, select the mute mode (see page 15) before insertion to avoid whistling. Alternatively, your hearing care professional may have activated a delayed start-up timer. This function delays the activation of the hearing system (for 9 or 15 seconds) after the battery door was closed. - Page 11 Grasp the hearing system between the thumb and index finger, using the hand on the same side you wear your hearing system. Insert it canal end first into the ear canal. Tug gently on your ear lobe and push the hearing system into the correct position.
-
Page 12: Removing Extra From Your Ear
Preparation Removing eXtra from your ear If possible, select the mute mode (see page 15) before removing your eXtra to avoid whistling. • eXtra with removal handle Grasp the handle between your thumb and index finger and pull the hearing system upwards out of your ear. - Page 13 • eXtra without a removal handle Put your thumb behind your lobe, (just below the hard cartilage) and gently press your ear upward to push the hearing system out of the canal. In order to help it along, make chewing movements with your jaw.
-
Page 14: Operation
Operation Switching ON/OFF (without volume control) Switching ON: The hearing system is switched ON when the battery cover is closed. Switching OFF: To switch the hearing system OFF, open the battery cover. - Page 15 Note: Switching eXtra ON /OFF with volume control see page 16 Your hearing care professional may have delayed the activation of your eXtra hearing system after switching ON (9 or 15 seconds), in order to avoid any disturbance when placing it in your ear. The activation is confirmed by an acoustic signal.
-
Page 16: Controlling The Volume (Optional)
Operation Controlling the volume (optional) and switching ON/OFF (with volume control) left right down down Increase volume: Turn the volume control forwards. Reduce volume: Turn the volume control backwards. Note: A single beep indicates the default volume setting. -
Page 17: Selecting A Hearing Program
Switching ON: Turn the volume control forwards slightly for both left and right ears until a “click” is felt. Wait for about two seconds until the instrument powers-up, then set the volume as desired. Switching OFF: Turn the volume control backwards until a “click” is felt. -
Page 18: Telecoil (Optional)
Operation Enhanced program selection: Upon request, your hearing care professional can program for you additional individual hearing programs dedicated to specific hearing situations. Important: Ask your hearing care professional to print out the complete description of your individual hearing programs and how to access them with your program switch. -
Page 19: Easyphone (Optional)
EasyPhone (optional) The EasyPhone function enables your eXtra hearing system to automatically select your telephone program when the telephone handset is held close to your ear. An acoustic signal confirms the switching. It automatically returns to the previous hearing program when the telephone handset is removed from your ear. - Page 20 Operation Fixing the EasyPhone magnet Clean the telephone handset thoroughly. Hold the telephone handset nearly vertically, similarly to making a telephone call. Hold the magnet near to the “listening end” of your telephone handset and release it. The magnet will automatically flip to the correct side at the right location.
- Page 21 Use of EasyPhone Use the telephone in a normal manner. At the beginning, you may need to move it slightly to find the optimum position for reliable switching and comfortable hearing. If necessary, move the magnet to another position on the handset to increase your comfort of use.
-
Page 22: Maintenance
Avoid strong jolts and vibration. 5) Daily cleaning and the use of a drying system is highly recommended. We recommend CleanLine from Phonak to care for your eXtra hearing systems. Your hearing care professional will gladly... - Page 23 advise you. Never use household cleaning products (washing powder, soap, etc.) to clean your hearing systems. 6) Hair spray, face creams and make-up can damage hearing systems. Remove them before applying cosmetics. 7) If you experience any soreness or inflammation in your ear, contact your hearing care professional.
-
Page 24: Warning
Warning Hearing instrument batteries are toxic when swallowed! Keep them out of reach of children and pets. If batteries are swallowed, please seek the advice of a medical practitioner! Use only hearing instruments that have been specially programmed for you by a hearing care professional. -
Page 25: Service And Warranty
Damage caused by third parties or non-authorized service centers renders the Phonak warranty null and void. This warranty does not include any services performed by a hearing care professional in their office. This warranty applies to the Phonak products listed below: Serial number –... -
Page 26: Phonak Distributors Worldwide
Brazil CAS Produtos Médicos, São Paulo – SP 04363-100 Canada Phonak Canada Limited Mississauga, Ontario L5S 1V9 China Phonak (Shanghai) Co. Ltd., Shanghai City 200233 Denmark Phonak Danmark A/S, Nitivej 10 2000 Frederiksberg France Phonak France SA, 69500 Bron Germany... - Page 27 Manufacturer: Phonak AG, Laubisrütistrasse 28 CH-8712 Stäfa, Switzerland The CE symbol is confirmation by Phonak AG that Savia products and accessories meet the requirements of directive 93/42/EEC on medical devices. This symbol indicates that Savia products comply with requirements for a BF type applied part according to EN 60601-1.
- Page 28 Your hearing care professional: www.phonak.com...
