TuffStuff AXT-225 Owner's Manual page 16

Step 2

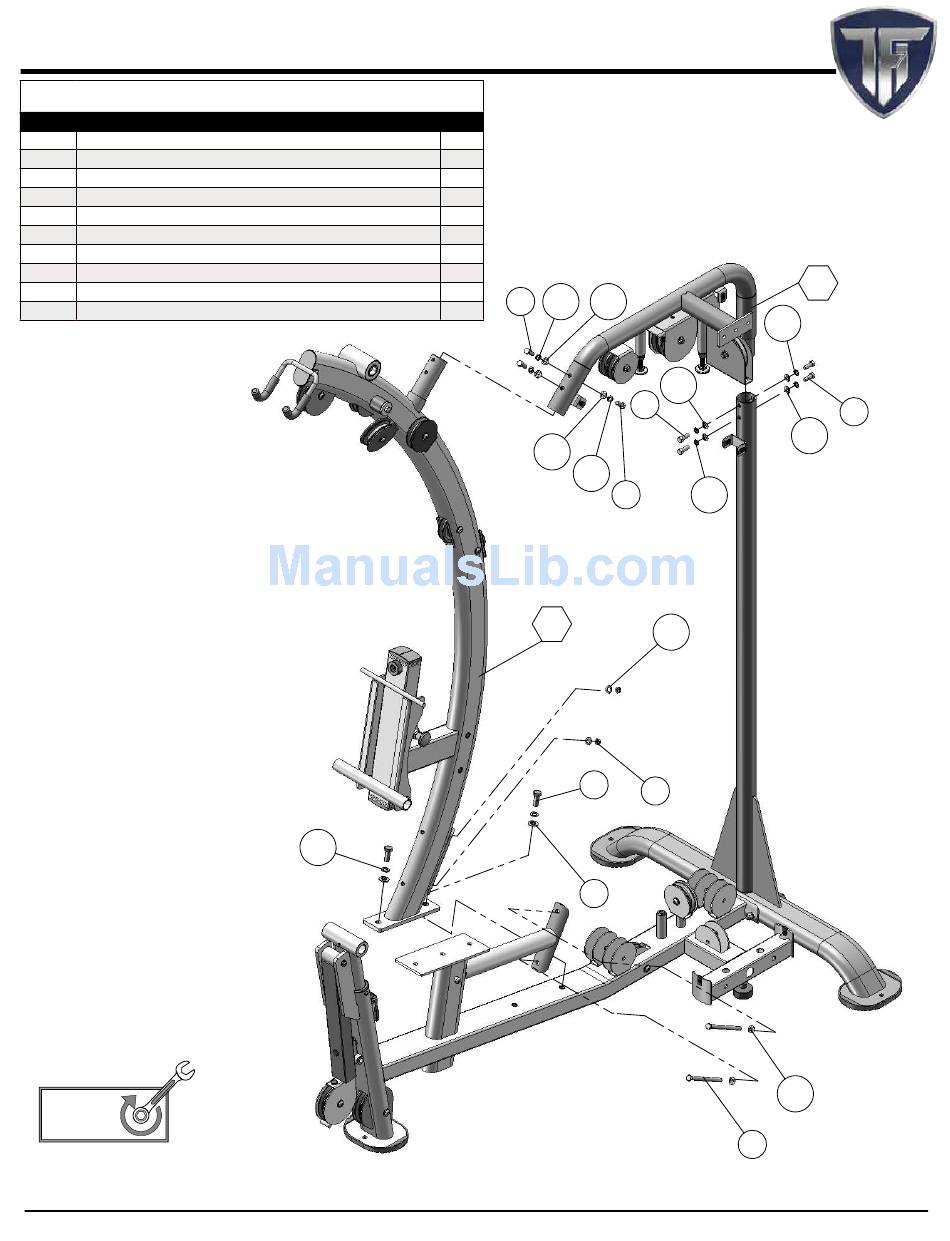

Step 2 Assembly List
Item #
*12 FRONT UPRIGHT
*24 TOP FRAME
61 FLAT WASHER SAE Z/P 1/2"
66 HEX HEAD CAP SCREW Z/P 1/2-13 X 1 1/4
68 HEX HEAD CAP SCREW Z/P 3/8-16 X 1
71 HEX HEAD CAP SCREW Z/P 3/8-16 X 5 1/8
83 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
113 SPLIT LOCK WASHER Z/P 1/2"
115 SPLIT LOCK WASHER Z/P 3/8"
126 OVAL WASHER Z/P 3/8"
Fully Tighten
100%
Fully Tighten
Wrench tighten all hardware in this and
previous loosely tighten steps.
16
Description
113
www.tuffstuffitness.com
Qty.
1
1
2
2
7
2
2
2
7
68 115 126
11
126
115
68
*12
66
61
*24
115
126
68
126
115
126
83
126
71
