TuffStuff RLM-855WS Owner's Manual

TuffStuff RLM-855WS Owner's Manual

Lat machine w/200 lbs steel weight stack

Advertisement

Quick Links

O W N E R ' S
M A N U A L

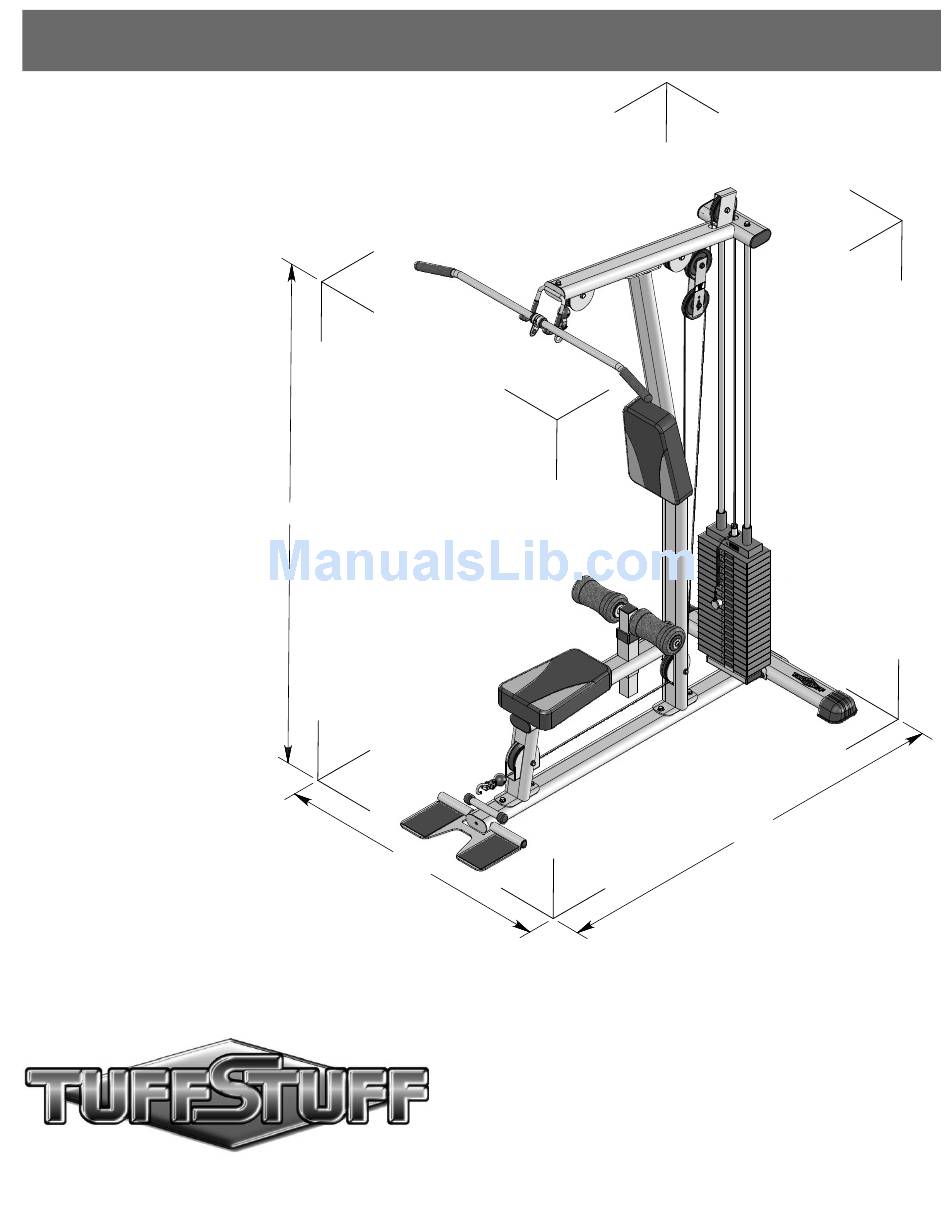

83 1/2"
64 3/4"
RLM-855WS
45 1/4"
Lat Machine W/200 Lbs Steel
Weight Stack
A
'
P
E
E
MERICA
S
REMIER
XERCISE
QUIPMENT
RLM-855WS Rev0
Revision Date 5-30-2007
