USING TWO MASTERS

Two masters can be used in situations for example where a main house and a granny
flat require to be connected in terms of communication but independent in terms of
radio operation.
In this situation one master remains on the standard code setting of '1' and the other
master is set to No '2' by means of changing the jumper settings of L2 and L3 on the
main board. Location of Jumpers L2 and L3 are shown below.
............
M2

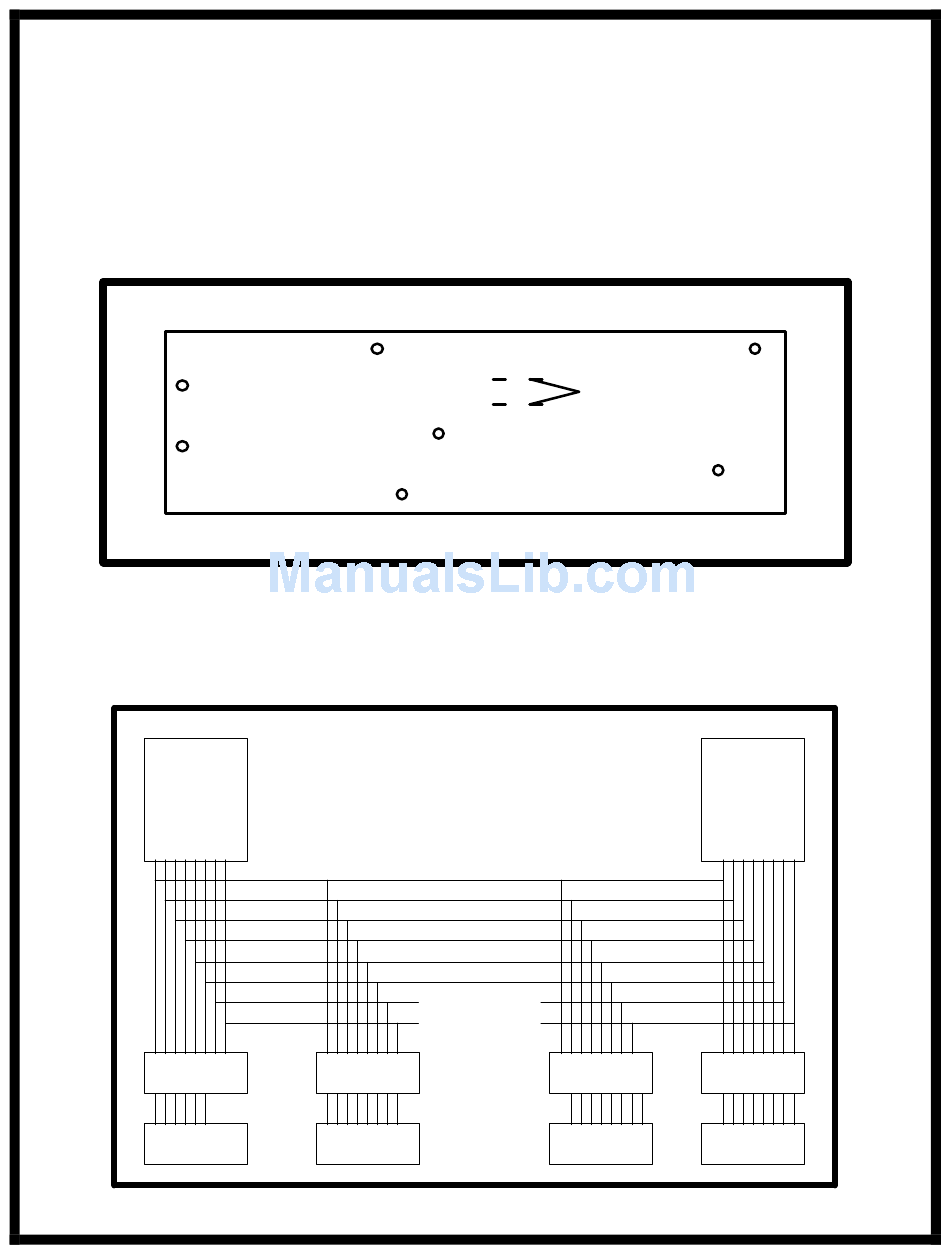

NOTE: Music lines (Green and Orange) do not connect between systems as shown
in diagram below.
MASTER
SHIELDED WHITE
ROOM
DOOR
M1
..............
M3
RED
BLACK
SHIELDED RED
WHITE
BLUE
GREEN
ORANGE
ROOM
ROOM
................
...
L2
...
JUMPERS
L3
1 2
N.C. N.C.
N.C. N.C.
ROOM
ROOM
32
580-186-P1
MASTER
RED
BLACK
SHIELDED RED
SHIELDED WHITE
WHITE
BLUE
GREEN
ORANGE
ROOM
ROOM
