AUX
MUS2
MUS1
COM2
COM1
SHLD
VLC
TC
NEG
POS
TB1
AUX
MUS2
MUS1
COM2
COM1
SHLD
VLC
TC
NEG
POS
LOAD
TB1
RESISTOR
WIRES FROM THE POWER SUPPLY SHOULD BE CONNECTED TO THE MOST CENTRALY LOCATED ROOM STATION
NOTE: Even though a Load Resistor comes with every Room Station, ONLY ONE Load Resistor is to be installed
for the entire intercom system. This one and only resistor is to be connected, as shown above, to the Room
Station that has the Power Supply connected to it.
SINGLE CORE
ORANGE
GREEN
BLUE
WHITE
DRAIN WIRE
SHIELDED YELLOW
SHIELDED GREY
BLACK
RED

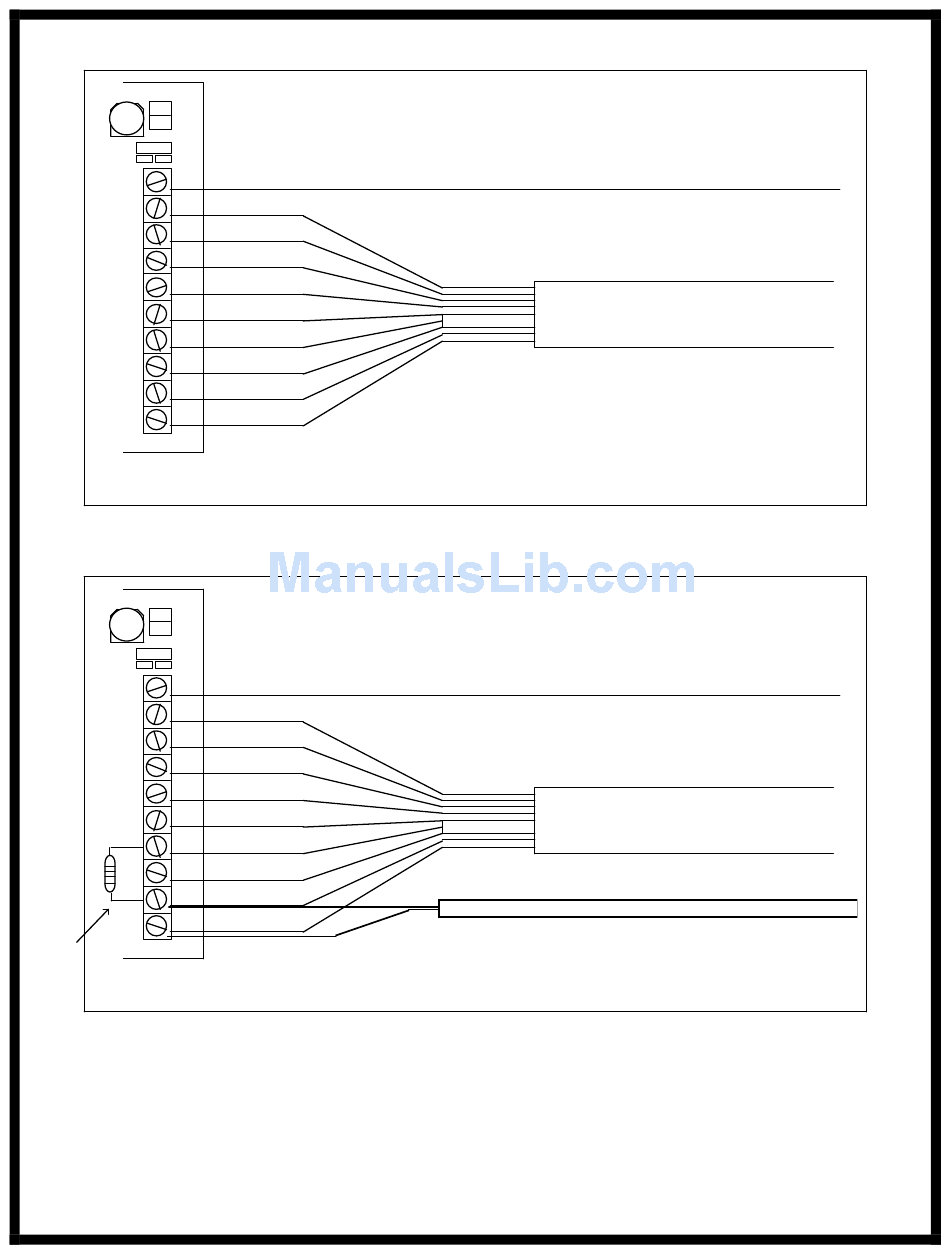

VR102 ROOM STATION - CABLE TERMINATION
SINGLE CORE
ORANGE
GREEN
BLUE
WHITE
DRAIN WIRE
SHIELDED YELLOW
SHIELDED GREY
BLACK
RED
NOTE:
- DRAIN WIRE should be wired to every room station at
the 'SHLD' terminal
- DRAIN WIRE should be insulated.
- SINGLE CORE not required if Aux/Lock Board(s) not fitted to system.
WIRE FROM POWER SUPPLY.
16
