Valet System One Installation Instructions Manual page 16

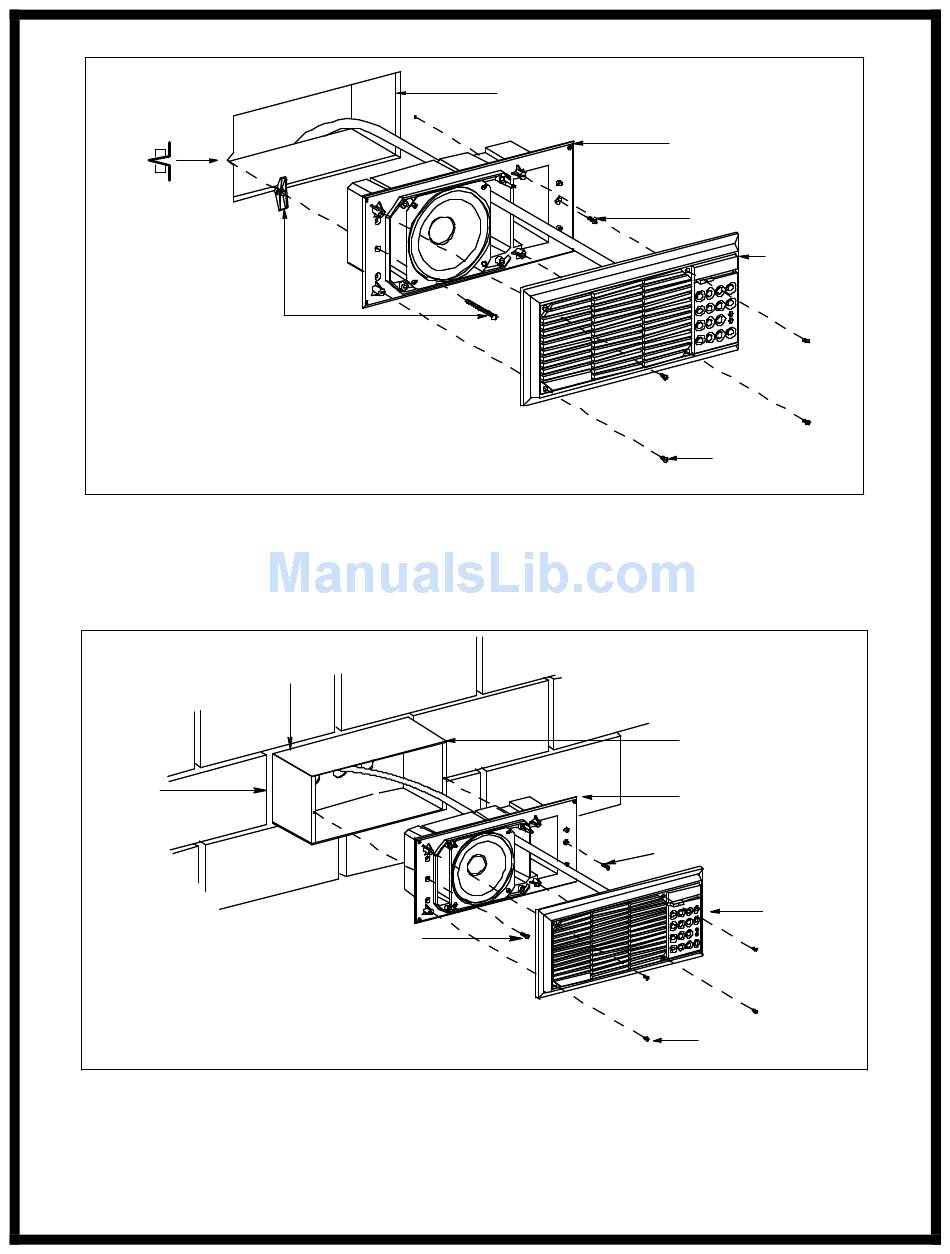

Cut out opening
3-5/8" x 8-7/8"
(H x W)
Wing Toggle Bolt
N o t e :
No W a l l B o x i s required for
this installation.
Insert Wall Box
into opening
BRICK
REMOVED
R O O M S T A T I O N
Wood Fixing Screw (26mm)
R O O M STATION
15
Wall Stud
- T I M B E R F R A M E
- C A V I T Y B R I C K W A L L
ROOM STATION HOUSING
1 Wood Fixing Screw (26mm)
ROOM
STATION
FACIA
4 x Facia Fixing
Screws (12mm)
WALL BOX
ROOM STATION HOUSING
Wood Fixing Screw (26mm)
ROOM STATION
FACIA
4 x Facia Fixing
Screws (12mm)
