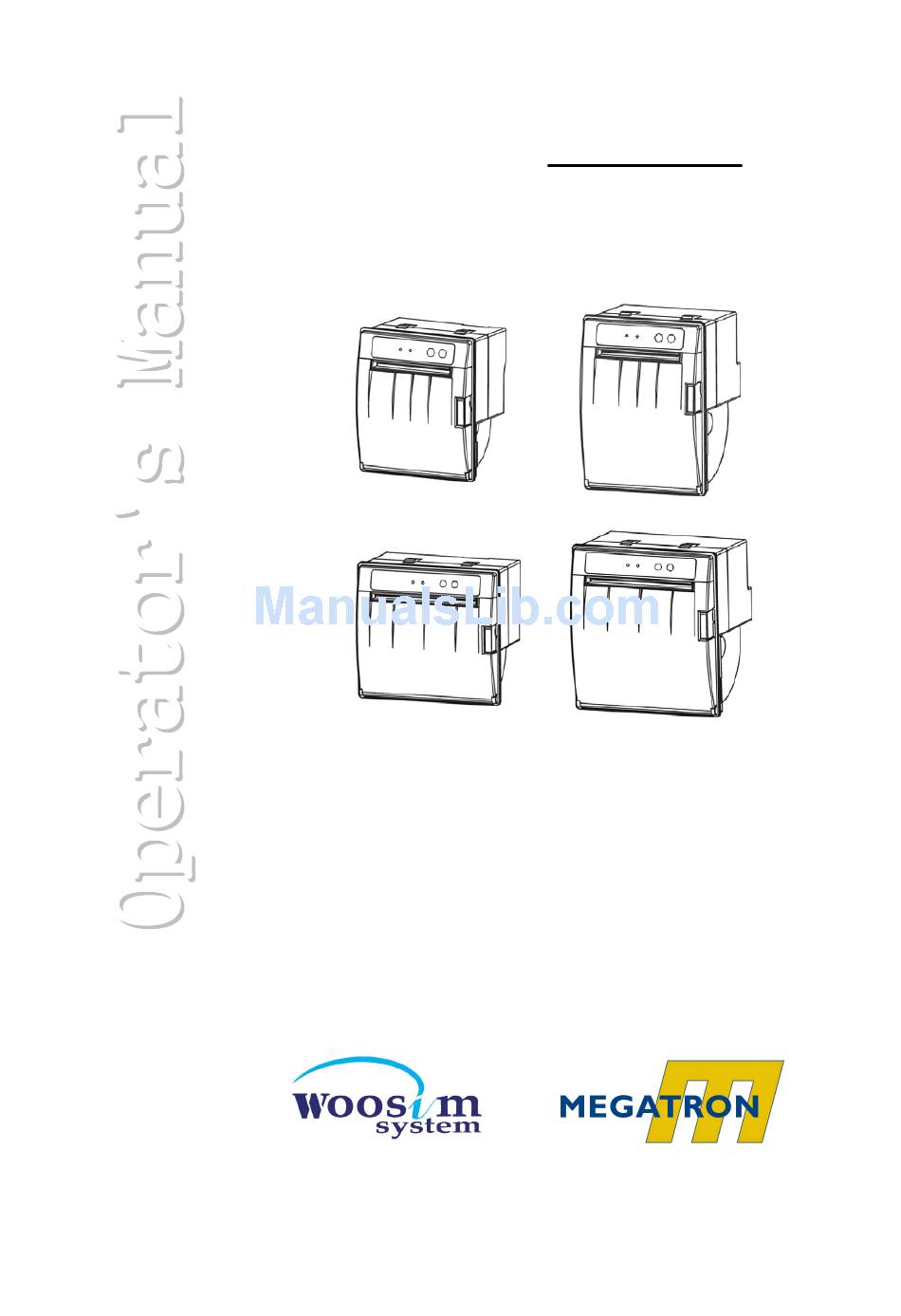

- Page 1 WSP-CP MODEL (2,3inch Panel Printer) All specifications are subjected to change without notice Megatron S.A.R.L - 451 route des Blaves - Z.I de Noyer 74200 ALLINGES - FRANCE +33 (0)4.50.70.54.54 http://www.megatron.fr...
- Page 2 Introduction The WSP-CP is an extremely simple and functional panel printer. It is the ideal solution for applications which require the immediate printing of data on a paper, whether they be of an industrial, professional or laboratory nature. Medical analyzer, Industrial instrument, Recorder, Geological analyzer, Underground analyzer, Chemical analyzer, Metallic analyzer, etc.
- Page 3 Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas. Suitable environment for the use of the printer is as follows: ◆...
-
Page 4: Table Of Contents
CONTENTS 1. Outline ............................5 1.1. Model classifications ......................5 1.2. Product Part Number System ....................5 1.3. Specifications ........................... 6 2. Setting up the printer ........................ 8 2.1. Printer & Accessories ......................8 2.2. Printer Features ........................9 2.3. -
Page 5: Outline
1.1. Model classifications WSP–CP Model name Inch&Paper (60 Øor80 Ø) 2inch : 260 or 280 3inch : 360 or 380 Interface A0 : UART Power None : 24VDC, 3A 1.2. Product Part Number System Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30... -
Page 6: Specifications
1.3. Specifications Specification Item 2inch (CP260, CP280) 3inch(CP360, CP380) Print method Thermal dot line printing Characters per line 42cpl (MAX) 64cpl (MAX) Character size Eng. : 9×24dots, 12×24dots Kor. : 16×24dots, [24×24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request. - Page 7 Item Specifications -10°C ~ 50°C (operating) Temperature Environment -20°C ~ 60°C (storage) conditions Humidity 30% - 85% (operating) Activation pulse 100 million pulses or more resistance Life span Abrasion 100km or more (excluding damage caused by (at 25℃ and rated resistance dust and foreign materials) energy)
-
Page 8: Setting Up The Printer
2.1. Printer & Accessories Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. WSP-CP260 WSP-CP280 WSP-CP360 WSP-CP380 Screw M2x5PH Thermal roll paper Bracket (2EA) -
Page 9: Printer Features
2.2. Printer Features... -
Page 10: Dimension
2.3. Dimension CP260 CP280... - Page 11 CP360 CP380...
-
Page 12: Panel Installation Ⅰ
2.3. Panel Installation Ⅰ... -
Page 13: Panel Installation Ⅱ
2.3. Panel Installation Ⅱ Uses BRACKET and fixes, like the picture of difficult case lower part and will be able to fix with SCREW. -
Page 15: Replacing Paper Roll
2.4. Replacing paper roll Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. 2. -
Page 16: Specified Power Supply
2.5. Specified power supply The following specifications are requested for power supply. Input : DC 24V / Max 3A Avoid using power supply which its power capacity of power current is extremely high. -
Page 17: Interface
3.1. UART ( RS-232C or TTL ) The WSP-CP printer has UART(RS-232C or TTL) interface and power connector is connected by 6 pin female connector. In the following table, the signals present on the connector are listed: Pin no. Signal name Direction Function INPUT... -
Page 18: Usb
3.2. USB The WSP-CP printer has USB interface and power connector is connected by 8 pin female connector. In the following table, the signals present on the connector are listed: Pin no. Signal name Function INPUT 24VDC/3A INPUT 24VDC/3A USB_VCC 5VDC Data “+”... -
Page 19: Using The Printer
4.1. Control panel BUTTON - FEED : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - CUTTER : Paper once cutting. PANEL LAMP - Power(Green) : Printer is ON and ready to receive data. At the time of the reel which will know the shift time of the paper POWER LAMP blinks. -
Page 20: The Self Test
4.2. The self test The Self-Test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. For Self-Test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly. -
Page 21: Consumable Parts
5.1. Recommended paper Type : Thermal Paper Paper width 57.5±0.5mm(2-inch), 79.5±0.5mm(3-inch) Paper thickness : 60 ±5㎛ Outer diameter : Ø60, Ø80mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has near end mark printing on its near end is recommended. -
Page 22: Printing Position
5.2 Printing position 2Inch 3Inch... -
Page 23: Revision History
Date Version Comments Revision History Initial Release Dec. 20. 2010 Product weight revision P13 2.3. Panel Installation Ⅰ Nov. 03. 2011 (CP380 dimension correction)
