Summary of Contents for Megatron WSP-i250

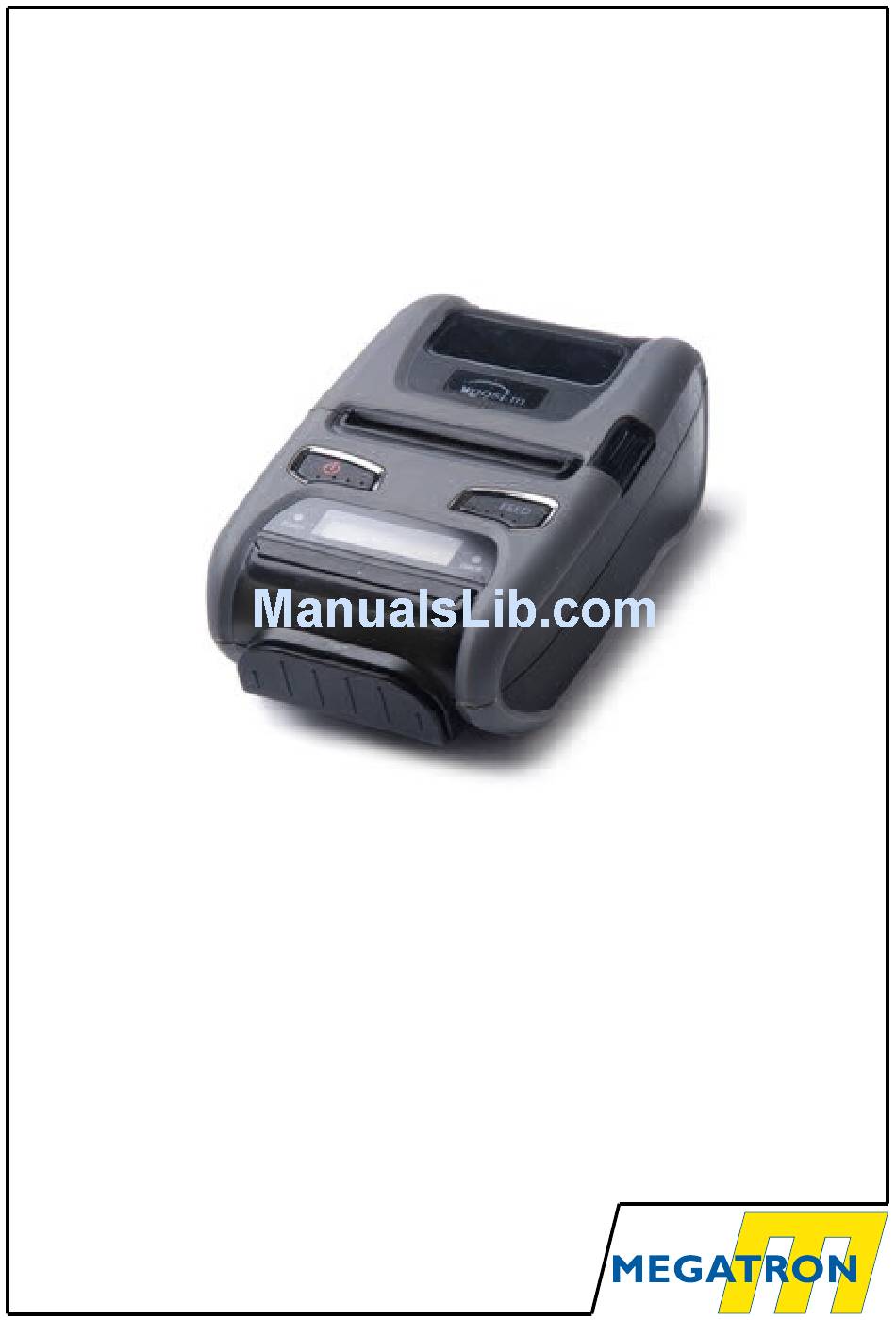

- Page 1 WSP-i250 Mobile thermal printer ● Pocket size ● Support text and graphic printing ● LCD screen with backlight ● UART (RS-232C or TTL), Bluetooth Ver2.1, USB, WiFi ● High resolution (203dpi : 8 points /mm) Version 0.1...
-
Page 2: Table Of Contents
Operating precautions :.................4 Spécifications :....................5 Setting up the printer :..................6 Printer features :....................7 Dimensions :....................8 Replacing the paper roll:................10 Power supply :....................11 Control panel :....................13 Set operation mode :...................14 Interface :....................16 The self-test :....................19 Using belt-clip :..................19 Consumable parts :..................20 Doc WSP-i250... -
Page 3: Introduction
Introduction → The WSP-i250 is the perfect partner in application such as mobile bank system, retail, point of sales, credit card transaction, other travelling and mobile computing, etc... → General features : ➢ Compact size (92.2 x 140.56 x 59.75 mm) ➢... -
Page 4: Operating Precautions
Do not rub the paper with hard object. • Do not allow plastic film, erasers, or adhesive tape to touch the paper for long • periods. Do not use chemical glue. • Always use the clean thermal paper. • Doc WSP-i250... -
Page 5: Spécifications
ISO 7810/7811/7812 Triple tracks (1&2&3) reading ISO 7816 Compliant (EMV level 1 certified) Module Smart Card T=0, T=1 / 1 SAM (Security Application Module) 128 x 32 dots FSTN (Blue LED backlight) Batterie Rechargeable, 7.4V DC, 1400mAh/1800mAh/2200 mAh (Li-ion) Doc WSP-i250... -
Page 6: Setting Up The Printer
Setting up the printer : a) Printer & accessories → Your printer should include these items. If any items are damaged or missing, please contact your dealer for assistance. Box contents : Printer WSP-i250 : • Thermal Roll Paper : • Communication cable : •... -
Page 7: Printer Features
Optional accessories: MSR: • Car charger: • Smart Card: • Shoulder strap: • SAM: • Printer features : Doc WSP-i250... -
Page 8: Dimensions
Note : The features are the same for the MSR printer. Dimensions : Doc WSP-i250... - Page 9 MSR model : Doc WSP-i250...
-
Page 10: Replacing The Paper Roll
→ Install the paper roll as shown below : 1) – Open the paper cover by pressing the open switch: 2) – Insert the paper roll as shown: 3) – Tear the excess paper off using the edge of paper door as a tear bar : Doc WSP-i250... -
Page 11: Power Supply
Installing the battery : → To install the battery, please follow the steps as shown below : 1) – Insert the battery connector in the direction of the arrow : 2) – To remove battery pack, proceed the above order reverse. Doc WSP-i250... - Page 12 → The recharging time depends on the voltage level and ambient temperature of the battery. Normally, it takes around 4 to 5 hours to recharge a battery pack. → You must use only the supplied adapter. → Red lamp : charging the battery. → Green lamp : charging is finished. Doc WSP-i250...
-
Page 13: Control Panel
POWER (green) : The printer is on and ready to receive data. → ERROR (red) : Indicates a fault condition or a printer error (no paper, paper cover open, etc...). LCD: • → The LCD screen will display most of the printer status (connetion type, end of paper, etc...) Doc WSP-i250... -
Page 14: Set Operation Mode
→The menu navigation in operation mode is done as: POWER button: Used for changing OPTION status of a mode. FEED button: Used to switch from one MODE to another. Doc WSP-i250... - Page 15 38400 bps 57600 bps 115200 bps 7 DATA bits Data bit 8 DATA bits No parity Parity bit Odd parity Even parity 1 Stop bit Stop bit 2 Stop bit Density Medium High Quality High No use Mark Gap/hole Doc WSP-i250...
-
Page 16: Interface
Note : →Bluetooth(iAP) is used only for Apple devices (iPod, iPhone, iPad,,,) → When you will leave the operation mode, the printer will print a ticket with her setting on. Interface : a) UART(RS-232C or TTL) / USB interface Doc WSP-i250... - Page 17 Bluetooth specifications : Category Specification Bluetooth spec. Bluetooth Ver2.1 / Class2 (10m) Frequency range 2.4GHz ISM band Data transmission rate 57600 bps Data bit 8 data bit fixed Parity bit No parity fixed Stop bit 1 stop bit fixed Doc WSP-i250...
- Page 18 TCP Client Mode Communication mode TCP Server/ Client (AT command emulation) d) Card reading and Smart Card insert: Insert Smart Card in the slot with chip facing down Please notice that magnetic card can be read in both directions. Doc WSP-i250...
-
Page 19: The Self-Test
And then a pattern of characters will be printed out. The self-test will be finished automatically and turned to the standby status. Using belt-clip : → Insert belt-clip in the hole and screw it with a screwdriver or a coin. Doc WSP-i250... -
Page 20: Consumable Parts
2) – chemicals or oil may change the color of paper, or printed characters may fade. 3) – Change of paper color starts from approximatively 70°C. 4) – Color of paper may be changed by being scratched with a nail or hard metal, etc… Doc WSP-i250... - Page 21 Printing position : Doc WSP-i250...
- Page 22 Centre de production Résistances de précision et Bureaux Commerciaux Servo-Systèmes Capteurs MEGATRON Interfaçage 451 route des Blaves Systèmes d'impression Z.I. de Noyer Joysticks-Trackballs F- 74200 ALLINGES Tél: +33 (0) 4.50.70.54.54 - Fax: +33 (0) 4.50.70.56.56 Internet: http://www.megatron.fr - E-mail: info@megatron.fr...
