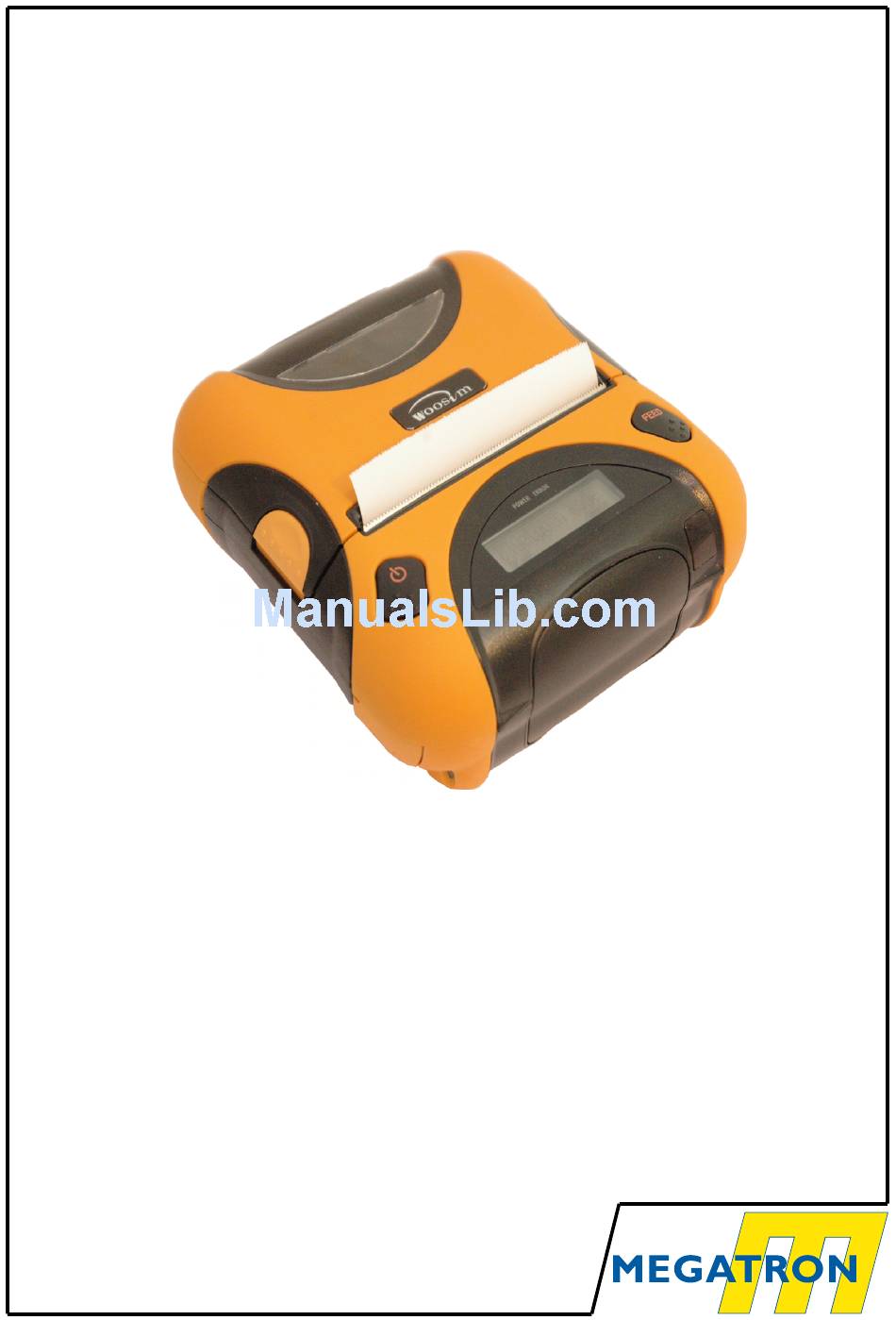

- Page 1 WSP-i350 Mobile thermal printer ● Pocket size ● Support text and graphic printing ● LCD screen with backlight ● UART (RS-232C or TTL), Bluetooth Ver2.1, USB, WiFi ● High resolution (203dpi : 8 points /mm) Version 0.1...
-
Page 2: Table Of Contents
Operating precautions :.................4 Spécifications :....................5 Setting up the printer :..................6 Printer features :....................7 Dimensions :....................8 Replacing the paper roll:................10 Power supply :....................11 Control panel :....................13 Set operation mode :...................14 Interface :....................16 The self-test :....................19 Using belt-clip :..................19 Consumable parts :..................20 Doc WSP-i350... -
Page 3: Introduction
Introduction → The WSP-i350 is the perfect partner in application such as mobile bank system, retail, point of sales, credit card transaction, other travelling and mobile computing, etc... → General features : ➢ Compact size (120 x 130.5 x 58.3 mm) ➢... -
Page 4: Operating Precautions
Do not rub the paper with hard object. • Do not allow plastic film, erasers, or adhesive tape to touch the paper for long • periods. Do not use chemical glue. • Always use the clean thermal paper. • Doc WSP-i350... -
Page 5: Specifications
ISO 7810 / 7811 / 7812 1&2 ou 2&3 tracks reading ISO 7816 Compliant (EMV level 1 certified) Module Smart Card T=0, T=1 / 1 SAM (Security Application Module) 128 x 32 dots FSTN (Blue LED backlight) Battery Rechargeable, 7.4V DC, 1400mAh/1800mAh/2200 mAh (Li-ion) Doc WSP-i350... -
Page 6: Setting Up The Printer
Setting up the printer : a) Printer & accessories → Your printer should include these items. If any items are damaged or missing, please contact your dealer for assistance. Box contents : Printer WSP-i350 : • Thermal Roll Paper : • Communication cable : •... -
Page 7: Printer Features
Optional accessories: MSR: • Shoulder strap: • Printer features : Doc WSP-i350... -
Page 8: Dimensions
Note : The features are the same for the MSR printer. Dimensions : Doc WSP-i350... -
Page 9: Replacing The Paper Roll
→ Install the paper roll as shown below : 1) – Open the paper cover by pressing the open switch: 2) – Insert the paper roll as shown: 3) – Tear the excess paper off using the edge of paper door as a tear bar : Doc WSP-i350... -
Page 10: Control Panel
POWER (green) : The printer is on and ready to receive data. → ERROR (red) : Indicates a fault condition or a printer error (no paper, paper cover open, etc...). LCD: • → The LCD screen will display most of the printer status (connetion type, end of paper, etc...) Doc WSP-i350... -
Page 11: Set Operation Mode
→The menu navigation in operation mode is done as: POWER button: Used for changing OPTION status of a mode. FEED button: Used to switch from one MODE to another. Doc WSP-i350... - Page 12 → The WSP-i350 present the following modes and options : Mode Options UART (RS-232C) Protocol UART (RS-232C) Communication type Bluetooth Protocol Bluetooth 9600 bps 19200 bps Baud rate 38400 bps 57600 bps 115200 bps 7 DATA bits Data bit 8 DATA bits...
-
Page 13: Interface
To leave the operation mode, press simultaneously on the FEED and POWER button again. Note : → When you will leave the operation mode, the printer will print a ticket with her setting on. Interface : a) UART(RS-232C or TTL) / USB interface Doc WSP-i350... - Page 14 → The WSP-i350 printer has a UART/USB interface and is connected by a means of 5 pin mini USB socket. In the following table, the signal present on the mini- USB socket are listed : USB: N° pin Name Function DATA «...
-
Page 15: The Self-Test
And then a pattern of characters will be printed out. The self-test will be finished automatically and turned to the standby status. Using belt-clip : → Insert belt-clip in the hole and screw it with a screwdriver or a coin. Doc WSP-i350... -
Page 16: Consumable Parts
2) – chemicals or oil may change the color of paper, or printed characters may fade. 3) – Change of paper color starts from approximatively 70°C. 4) – Color of paper may be changed by being scratched with a nail or hard metal, etc… Doc WSP-i350... - Page 17 Printing position : Doc WSP-i350...
- Page 18 Centre de production Résistances de précision et Bureaux Commerciaux Servo-Systèmes Capteurs MEGATRON Interfaçage 451 route des Blaves Systèmes d'impression Z.I. de Noyer Joysticks-Trackballs F- 74200 ALLINGES Tél: +33 (0) 4.50.70.54.54 - Fax: +33 (0) 4.50.70.56.56 Internet: http://www.megatron.fr - E-mail: info@megatron.fr...
