Summary of Contents for Megatron PORTI-T380

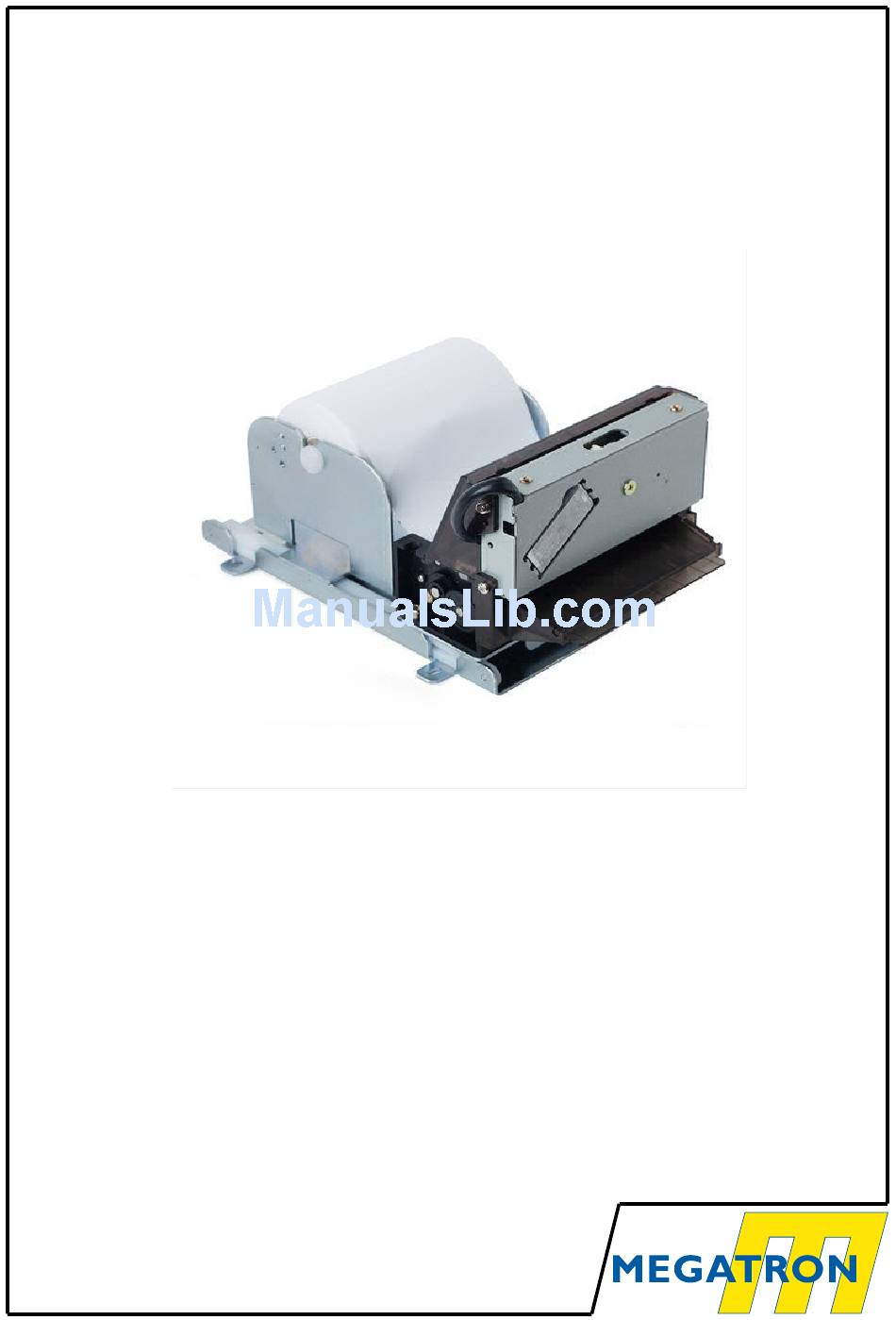

- Page 1 PORTI-T380 Thermal kiosk printer ● Auto cutting ● Support text and graphic printing ● Low energy consumption ● UART (RS-232C or TTL) ● High resolution (203dpi : 8dots/mm) Version 0.1...
-
Page 2: Table Of Contents
Operating precautions :.................4 Specifications :....................5 Setting up the printer :..................6 Printer features :....................7 Dimensions :....................8 Replacing the paper roll:................9 Power supply :....................11 Sensors [option] :..................12 Interface :....................13 Using the printer :..................14 The self-test :....................15 Consumable parts:..................16 Printing position:..................17 Doc PORTI-T380... -
Page 3: Introduction
Introduction →150mm/sec high-speed printer. The 3inch thermal panel printer PORTI-T380 is most suitable for ticketing applications, such as transportation, coupons, industrial machine, lottery, ATM and kiosks. →General features : ➢ Silent printing through direct thermal printing method. ➢ High speed (150mm/sec). -
Page 4: Operating Precautions
Do not leave the paper with hard object. • Do not allow plastic film, erasers, or adhesive tape touch the paper for long • periods. Do not use chemical glue. • Always use a clean thermal paper. • Doc PORTI-T380... -
Page 5: Specifications
Sliding mount assembly Temperature : -10°C ~ 50°C (operating) -10°C ~ 70°C (storage) Environmental conditions Humidity : 30 %-80 % (operating) 10 %-90 % (storage) Mechanical : 37.000.000 lines MCBF (Mean Cycle Before Failure) Head : 50km approximately Doc PORTI-T380... -
Page 6: Setting Up The Printer
→ When unpacking your printer box, make sure it contains the printer an all accessories. If any accessories are missing or damage, please contact your dealer for assistance. Box content : PORTI-T380 printer : • Shaft : • Paper roll : •... -
Page 7: Printer Features
Printer features : Doc PORTI-T380... -
Page 8: Dimensions
Dimensions : Top view: Side view: Doc PORTI-T380... -
Page 9: Replacing The Paper Roll
→ Remove the used paper roll (if there is one) → Install the paper roll as shown below : 1) – Insert the paper roll like below with a special attention to the paper roll direction : Doc PORTI-T380... - Page 10 2) – Push the paper as shown below : Doc PORTI-T380...
-
Page 11: Power Supply
Power supply : Power connector : → The PORTI-T380 printer is equipped to an external supply electric power. The functions assigned to the pins in the connector are as follows: Warning A wrong connection of power supply connector could damage the printer. -
Page 12: Sensors [Option]
Sensors [option] : N° Pin Pin Spec. Function Anode Signal Collector Emitter Doc PORTI-T380... -
Page 13: Interface
Interface : a) UART (RS-232C ou TTL) → The PORTI-T380 printer has a UART(RS-232C or TTL) interface and is connected by means of 3 pin female connector. In the following table, the signal present on the connector are listed: MOLEX : 51004-0300... -
Page 14: Using The Printer
When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. Panel lamp : →POWER : Printer is ON and ready to receive data. →ERROR : Indicates a fault condition or a printer error. (i.e : no paper, ect...) Doc PORTI-T380... -
Page 15: The Self-Test
2) – The self test prints the current printer status, which provides the control ROM version and the communication method setting. 3) – After printing the current printer status, the self test will print a pattern using the built-in character set.. 4) – The self test automatically ends. Doc PORTI-T380... -
Page 16: Consumable Parts
2- Chemicals or oil may change the color of paper, or printed characters may fade. 3- Change of paper color starts from approx: 70°C. Pay attention to heat, humidity and sun light. 4- Color of paper may be changed by being scratched by nail or hard metal, etc... Doc PORTI-T380... -
Page 17: Printing Position
Printing position: Doc PORTI-T380... - Page 18 Doc PORTI-T380...
- Page 19 Doc PORTI-T380...
- Page 20 Centre de production Résistances de précision et Bureaux Commerciaux Servo-Systèmes Capteurs MEGATRON Interfaçage 451 route des Blaves Systèmes d'impression Z.I. de Noyer Joysticks-Trackballs F- 74200 ALLINGES Tél: +33 (0) 4.50.70.54.54 - Fax: +33 (0) 4.50.70.56.56 Internet: http://www.megatron.fr - E-mail: info@megatron.fr...
