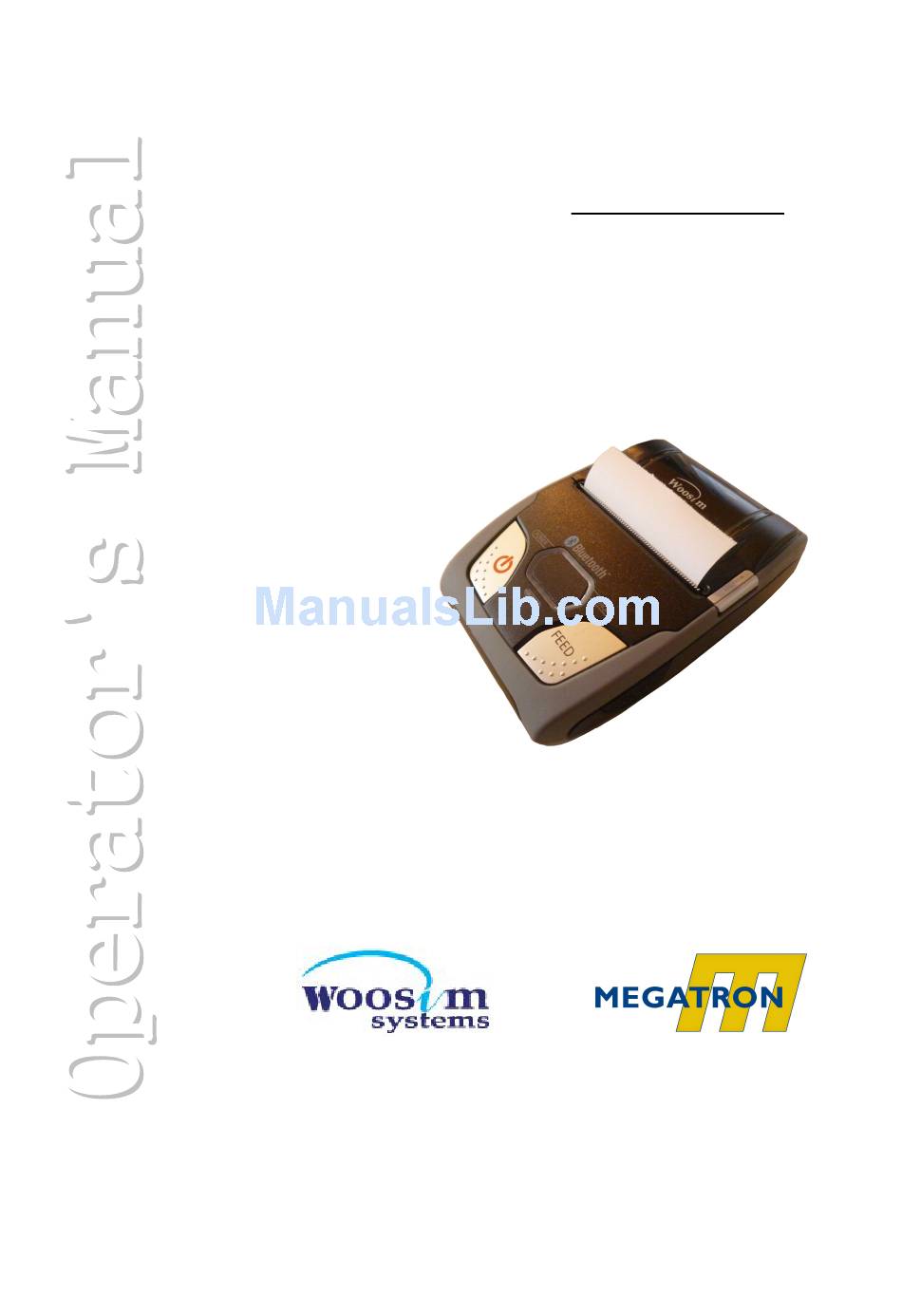

- Page 1 WSP-R240 MODEL (2inch Mobile Printer) All specifications are subjected to change without notice Megatron sarl - 451 route des Blaves - Z.I de Noyer 74200 ALLINGES - FRANCE +33 (0)4.50.70.54.54 http://megatron.fr...
- Page 2 ¦ Introduction The WSP-R240 is suitable designed for use with a growing variety of mobile devices. Bluetooth/Serial interfaces make the WSP-R240 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.
-
Page 3: Operating Precautions
¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas. Suitable environment for the use of the printer is as follows: ◆... - Page 4 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. These equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 6 WSP-R240 Model Interface A1:UART/Bluetooth Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported.
- Page 7 Item Specification Printing method Direct thermal line printing Characters per line 42cpl (MAX) Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Optional Characters Japanese, Persian, Latin9 and Others upon request. Resolution 203dpi, 8dots/mm Print width 2-inch (48mm, 384dots)
- Page 8 Item Specification -10°C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment Conditions 30% - 80% (operating) Humidity 10% - 90% (storage) Mechanical 37,000,000 lines MCBF (Mean Cycle Between failure) Head Approximately 50 Km < Table 1 >...
- Page 9 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Thermal roll paper Battery Pack WSP-R240 Battery charger adaptor Communication cable ▼ OPTIONAL External Battery Cradle Car charger...
- Page 10 ▶ Part Name...
- Page 11 ▶ Dimensions...
- Page 12 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. 2.
- Page 13 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer to Table 2) ** Only the printer which support iOS Bluetooth interface comes out at the circumstance to change the printer mode.
- Page 14 Press MODE & POWER Button during the Error Lamp flickers 5 times. ® You will see the Power Lamp and the Error Lamp flickers once. ® Press the POWER Button twice and the Error Lamp flickers 3 times. And then, interface mode has set to Bluetooth mode. When you press POWER button once again, Power Lamp flickers twice and...
- Page 15 When you press FEED Button once again, Power Lamp flickers 8 times Error Lamp flickers once. ® Press POWER Button once, Error Lamp flickers twice And then the sensor has set to Sensor medium1. When you press FEED Button once again, Power Lamp flickers 9 times Error Lamp...
- Page 16 ERROR Lamp POWER Lamp MODE Option (Green) (Red) UART(RS-232C) Protocol UART(RS-232C) Communication Bluetooth Port Protocol Bluetooth Bluetooth(iAP) 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity Parity Odd Parity Even Parity 1 stop bit...
- Page 17 ERROR Lamp POWER Lamp MODE Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 2 > Notice : Bluetooth(iAP) is the mode which is used in iPod, iPhone and iPad Whole aspect.
- Page 18 (Fig.3.1) The WSP-R240 printer has a UART(RS-232C or TTL) or USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ① UART(RS-232C) ②...
- Page 19 Category Specification Bluetooth Spec. Bluetooth Ver2.1 +EDR / Class2 (10m) Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed. Please take notice that Magnetic Stripe Card should be swapped in direction of arrow.
- Page 20 (Fig.4.1) Button FEED Button: When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. POWER Button: ① When of 5 or more seconds presses and power comes to on or off. ②...
-
Page 21: Panel Lamp
Panel lamp - Power : Printer is ON and ready to receive data. (GREEN) - Error : Indicates a fault condition or a printer error. (RED) (i.e : no paper, paper cover opened. etc.) - Bluetooth : Indicates a Bluetooth connection status. (BLUE) - Battery Power : These lamps(Green) indicated the battery power remaining. - Page 22 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core, and the roll paper which has near end mark printing on its near end is recommended.
