Summary of Contents for Megatron WSP-R241

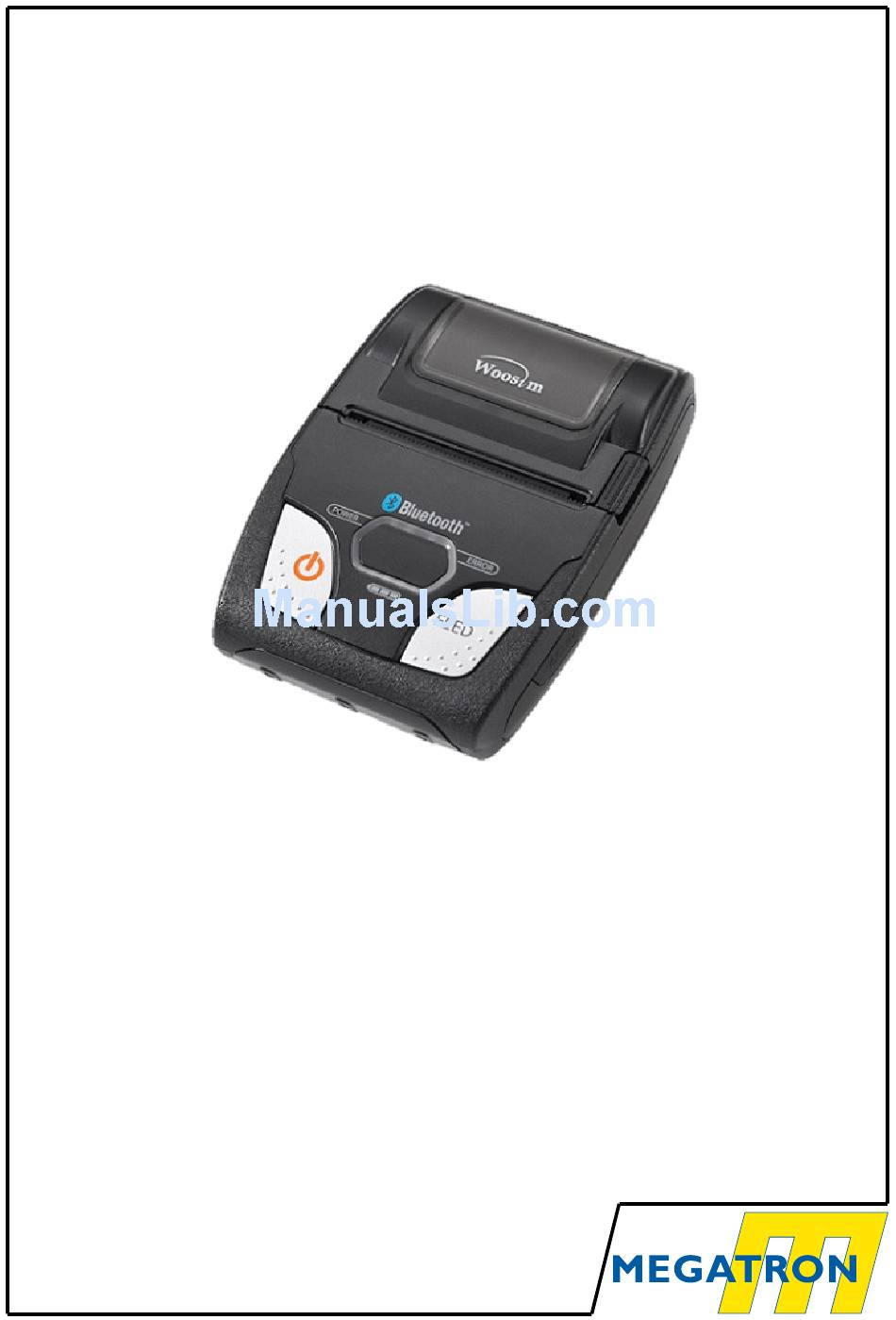

- Page 1 WSP-R241 Mobile thermal printer ● Pocket size. ● Support text and graphic printing. ● Low power consumption ● Interface USB / Bluetooth Ver3.0 ● High resolution (203 dpi : 8 dots /mm) Version 0.1...
-
Page 2: Table Of Contents
Introduction....................3 Operating precautions :.................4 Specifications :....................5 Setting up the printer :..................6 Printer features :....................7 Dimensions :....................8 Replacing the paper roll:................9 Power supply :....................10 Control panel :....................12 Set operation mode :...................13 Interface :....................15 The self-test :....................18 Consumable parts :..................18 Doc WSP-R241... -
Page 3: Introduction
Introduction → The WSP-R241 printer is suitable designed for use with a growing variety of mobile devices. Bluetooth/USB interfaces make the WSP-R241 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare. -
Page 4: Operating Precautions
Do not rub the paper with hard object. • Do not allow plastic film, erasers, or adhesive tape to touch the paper for long • periods. Do not use chemical glue. • Always use the clean thermal paper. • Doc WSP-R241... -
Page 5: Specifications
MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit Receive buffer size 1M bytes Triple tracks (1&2&3 tracks reading) MSR [option] Supports 3DES & AES encryption Battery Rechargeable, 7,4V DC, 1100mAh (Li-ion) Battery duration 1 hours continuous printing Doc WSP-R241... -
Page 6: Setting Up The Printer
Setting up the printer : a) Printer & accessories → Your printer should include these items. If any items are damaged or missing, please contact your dealer for assistance. Box contents : Printer WSP-R241 : • Thermal Roll Paper : • Communication cable : •... -
Page 7: Printer Features
Optional accessories: MSR : • Car charger : • External battery crade : • Printer features : Note : The features are the same for the MSR printer. Doc WSP-R241... -
Page 8: Dimensions
Dimensions : MSR model : Doc WSP-R241... -
Page 9: Replacing The Paper Roll
→ Install the paper roll as shown below : 1) – Open the paper cover by pressing the open switch: 2) – Insert the paper roll as shown: 3) – Tear the excess paper off using the edge of paper door as a tear bar : Doc WSP-R241... -
Page 10: Power Supply
2) – To remove battery pack, proceed the above order reverse. Recharging the battery : → For recharging the battery pack, insert the battery pack in the printer. Insert the battery charger to the charge connector of the printer: Doc WSP-R241... - Page 11 → The recharging time depends on the voltage level and ambient temperature of the battery. Normally, it takes around 4 to 5 hours to recharge a battery pack. → You must use only the supplied adapter. → Red lamp : charging the battery. → Green lamp : charging is finished. Doc WSP-R241...
-
Page 12: Control Panel
→ BLUETOOTH (blue) : Indicates a Bluetooth connection status. → BATTERY : Indicates the remaining battery power thanks to a progress bar simulated by 3 lamps. If there is only one lamp ON, you must recharge your battery using the battery charger. Doc WSP-R241... -
Page 13: Set Operation Mode
ERROR lamp. FEED button: Used to switch from one MODE to another. The lamp showing the chosen option is the POWER lamp. → The WSP-R241 present the following modes and options : Doc WSP-R241... - Page 14 Bluetooth(iAP) Density Medium High No use Mark Medium 1 Sensor sensitivity Medium 2 High No use 1min sleep 2min sleep 3min sleep 4min sleep Power down 5min sleep 1min OFF 2min OFF 3min OFF 4min OFF 5min OFF Doc WSP-R241...
-
Page 15: Interface
POWER button again. Note : →Bluetooth(iAP) is used only for Apple devices (iPod, iPhone, iPad,,,) → When you will leave the operation mode, the printer will print a ticket with her setting on. Interface : a) USB interface Doc WSP-R241... - Page 16 → The WSP-R241 printer has a USB interface and is connectd by a means of 5 pin mini USB socket. In the following table, the signal present on the mini-USB socket are listed : N° pin Name Function DATA « - »...
- Page 17 → Check the direction of the magnetic stripe and read the card. → Please hold the card correctly as show above to pass the card at a steady speed. → When the card reading is successful, buzzer sound one time. If it fails, buzzer sounds three times. Doc WSP-R241...
-
Page 18: The Self-Test
Consumable parts : a) Recommended paper Type : Thermal paper. • Paper width : 58 mm • Paper thickness : 60 + 5μm • Outer diameter : Ø40 mm or less. • Recording side : Outside of the roll. • Doc WSP-R241... -
Page 19: Printing Position
2) – chemicals or oil may change the color of paper, or printed characters may fade. 3) – Change of paper color starts from approximatively 70°C. 4) – Color of paper may be changed by being scratched with a nail or hard metal, etc... Printing position : Doc WSP-R241... - Page 20 Doc WSP-R241...
- Page 21 Doc WSP-R241...
- Page 22 Centre de production Résistances de précision et Bureaux Commerciaux Servo-Systèmes Capteurs MEGATRON Interfaçage 451 route des Blaves Systèmes d'impression Z.I. de Noyer Joysticks-Trackballs F- 74200 ALLINGES Tél: +33 (0) 4.50.70.54.54 - Fax: +33 (0) 4.50.70.56.56 Internet: http://www.megatron.fr - E-mail: info@megatron.fr...
