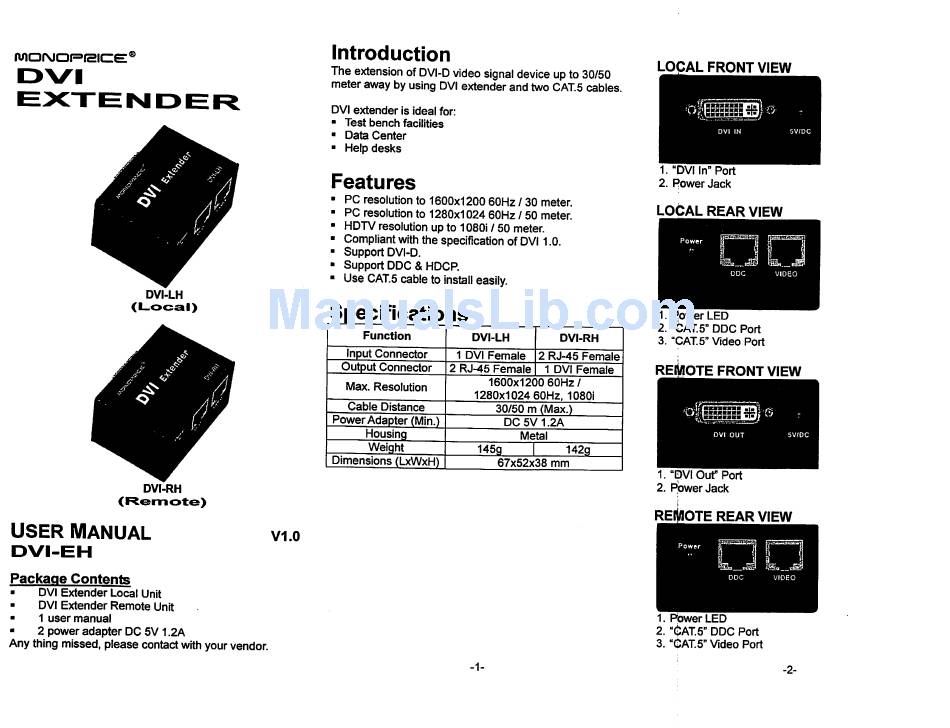

Monoprice DVI-LH User Manual

Introduction
DVI
DVI-LH
(Local)
DVI-RH
(Remote)
USER MANUAL vi.o
DVI-EH
Package Contents
■ DVI Extender Local Unit
■ DVI Extender Remote Unit
■ 1 user manual
■ 2 power adapter DC 5V 1.2A
Any thing missed, please contact with your vendor.
The extension of DVI-D video signal device up to 30/50
meter away by using DVI extender and two CAT.5 cables.
DVI extender is ideal for:
■ Test bench facilities
■ Data Center
■ Help desks
Features
PC resolution to 1600x1200 60Hz / 30 meter.
PC resolution to 1280x1024 60Hz / 50 meter.
HDTV resolution up to 1080i / 50 meter.
Compliant with the specification of DVI 1.0.
Support DVI-D.
Support DDC & HDCP.
Use CAT.5 cable to install easily.
LOCAL FRONT VIEW
1. "DVI In" Port
2. Power Jack
LOCAL REAR VIEW
1. Power LED
2. "CAT.5" DDC Port
3. UCAT.5M Video Port
FRONT VIEW
1."G)VI Out" Port
2. Power Jack
TE REAR VIEW
1. Power LED
2. tt6AT.5M DDC Port
3. W6AT5" Video Port
-1-
-2-
