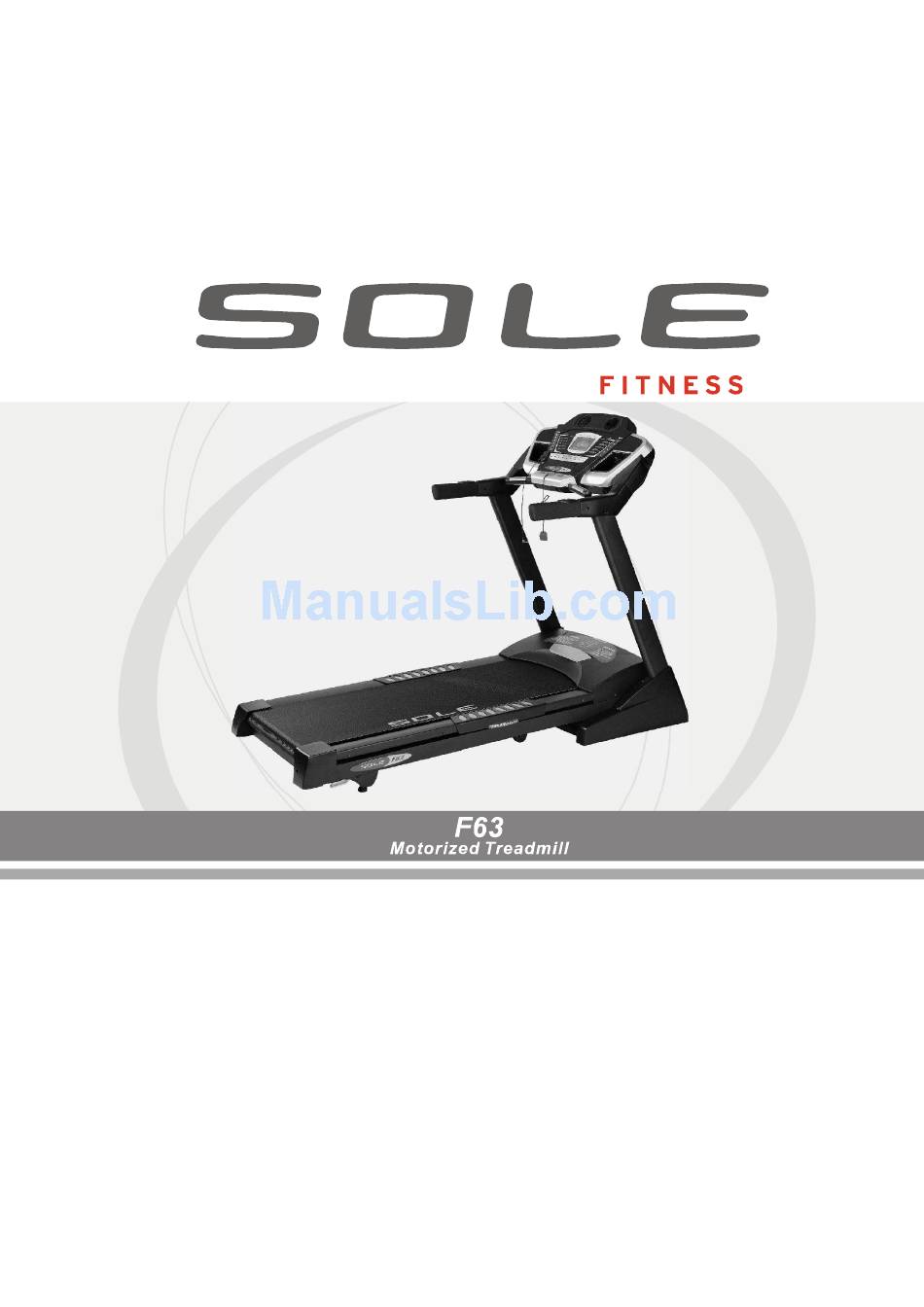

- Page 1 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!
-
Page 2: Table Of Contents
Table of Contents Product Registration ...2 Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Folding Instructions Transport Instructions Operation of Your New Treadmill Programmable Features General Maintenance. Service Checklist - Diagnosis Guide Manufacturer s Limited Warranty... -
Page 3: Product Registration
If you have any questions about your treadmill or warranty contact SOLE Fitness at 1-866-780-SOLE (7653). For SOLE service call 866-MYSOLE1 (697-6531). Please take a moment at this time to record below the name of the dealer, their telephone number, and the date of purchase for easy contact in the future. -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your SOLE treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet with only the treadmill plugged into the circuit.. -
Page 5: Important Electrical Information
Important Electrical Information WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power. -
Page 6: Important Operation Instructions
Important Operation Instructions NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the computer. Understand that changes in speed and incline do not occur immediately. Set your desired speed on the computer console and release the adjustment key. The computer will obey the command gradually. -
Page 7: Assembly Instructions
Assembly Instructions (F63) !!ATTENTION: IMPORTANT UNPACKING INSTRUCTIONS. PLEASE READ BEFORE UNPACKING YOUR FOLDING TREADMILL!! Serious injury could occur if this folding treadmill is not unpacked properly. There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding accidentally during shipping. - Page 8 ASSEMBLY PACK CHECK LIST #128. Speed Nuts Clip (6pcs) #140. M5 x 10 m/m #113. Phillips Head Screw (8 pcs) Split Washer (4pcs) #130. 5/16 x1/2 #119. 3.5x12 m/m #120. 5 x 16 m/m Button Head Socket bolt (8 pcs) Screw (4 pcs) Tapping Screw (6 pcs) #139.
- Page 9 Step 1. Remove the treadmill from the carton and lay it aside on smooth, level ground. Step 2. 1. Install the 6pcs of speed nuts (#128) on the Frame Base left and right side. 2. Install the Frame Base Cap (#62 & #63) through the Upright tubes (#4 & #5), and connect the Computer Cable (Lower #49) to the Computer Cable (Middle #50).
- Page 10 Step 4. Install the Frame Base Cap (#61 & #62) on the Frame Base (#2) with the 6pcs of 5x16mm tapping Screws (#120) by using the Combination M5 Allen Wrench & Phillips Head Screw Driver (#131). Step 5. Connect the Speed Adjustment Switch Cable (#54) to the Speed Cable, Upper (#37). Connect the Incline Adjustment Switch Cable (#55) to the Incline Cable, Upper (#38).
- Page 11 Step 7. Install the Left Handgrip Side Cap and Right Handgrip Side Cap to cover the top of the upright tubes (#4 & #5) and Console Assembly Support tubes, with the 8pcs of M5x10mm Phillips Head Screws (#140) and 4pcs of 3.5x12mm Screws (#119) by using the Combination M5 Allen Wrench &...
-
Page 12: Folding Instructions
Folding Instructions Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord is secured to avoid possible damage. Use both handrails to maneuver the unit to the desired position. To Fold The Treadmill: Make certain the treadmill is at minimum incline. -
Page 13: Operation Of Your New Treadmill
Operation of Your Treadmill Getting familiar with the control panel F63Console Getting started: Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not power on without it. -
Page 14: Incline Feature
Quick-Start Operation: STEP 1: Attach the Safety key to wake display up (if not already on). STEP 2: Press the Start key to begin belt movement then adjust to the desired speed using the Fast / Slow keys (console or handgrip). You may also use the rapid speed keys 2 through 10 to adjust the speed. - Page 15 Dot Matrix Center Display (Program Operation): Twenty colums of dots (8 high) indicate each segment of a workout. The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate a specific value - only an approximate percent to compare levels of intensity. In operation the Speed / Incline dot matrix window will build a profile picture as values are changed during a workout.
-
Page 16: Programmable Features
Programmable Features Factory preset programs, 2 user defined programs, one Manual program (P0) and P1-P5 programs. Each preset program has a maximum speed level that is displayed when a desired workout is chosen. The maximum speed that the particular program will achieve will be displayed in the Speed window. - Page 17 STEP 5: The first column (segment) will now be blinking. Using the Fast / Slow or rapid keys, adjust the speed level to your desired effort for the first segment then press enter. The second column will now be blinking. Repeat the above process until all segments have been programmed.
-
Page 18: General Maintenance
General Maintenance Belt and Bed - Your treadmill uses a very high-efficient low-friction bed. Performance is maximized when the bed is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly under the belt edge. - Page 19 TREADBELT TRACKING ADJUSTMENT: The performance of your treadmill is dependent on the frame running on a reasonably level surface. If the frame is not level, the front and back roller cannot run parallel, and constant belt adjustment may be necessary. The treadmill is designed to keep the treadbelt reasonably centered while in use.
-
Page 20: Belt/Deck Lubrication Procedure
Belt/deck lubrication procedure: Do not lubricate with other than SOLE approved lubricant. Your treadmill comes with one tube of lubricant and extra tubes can be ordered directly from SOLE. There are commercially available lube kits, but the only one currently approved by SOLE is Lube-N-Walk. These kits come with an application wand that makes applying the lubrication easier. -
Page 21: Service Checklist - Diagnosis Guide
Service Checklist - Diagnosis Guide Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill s warranty. PROBLEM SOLUTION/CAUSE Display does not light Tether cord not in position. -
Page 22: Manufacturer S Limited Warranty
DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused. 5. For any further information, or to contact our service department by mail, send your correspondence to: SOLE Fitness P.O. Box 2037 Jonesboro, AR 72402-2037 Product features or specifications as described or illustrated are subject to change without notice.
