Summary of Contents for Alfresco ALX2
- Page 2 Grill Burners from the grill’s firebox. STEP 2: Detach the Rotisserie Panel by removing the holding screws located at each top cor- ner of the panel. (Note: ALX2-56 BFG units have two separate panels - remove screws from both panels) STEP 3: To access the burner’s orifice behind the...
- Page 3 STEP 4: 1/2” OPEN Remove the Rotisserie orifice WRENCH ORIFICE with a 1/2” open wrench from the 3/8” compression elbow fitting. Install the replacement orifice for 3/8” the proper fuel you are replacing. ELBOW FITTING (See orifice kits at the end of this booklet).
- Page 4 GRILL BURNER ORIFICES (SEARZONE™) : STEP 7: If your grill has a SearZone™ burner, use a ratcheting wrench, a 3” driver extender and a 1/2” socket, remove the orifice from the inside of the grill. The SearZone™ orifice is located just below the burner’s igniter electrode.
- Page 5 DO NOT over tighten the compression fitting to the NOTE: 1/8” aluminum gas line. COMPRESSION FITTING MIGHT REMAIN WITH 1/8” ALUMINUM GAS LINE SIDE BURNERS: (ALX2-56 MODEL ONLY) COVER STEP 12: GRATE Remove the side burners’ cover, cooking grate, burner exterior and inner cap.
- Page 6 GAS PRESSURE REGULATOR CONVESION: STEP 15: The ALX2 grill is equipped with a Maxitrol™ pressure regulator that is suitable for LP or NG fuel regulation. To convert the regulator to proper fuel, remove the brass cap located in it’s center.
- Page 7 AIR SHUTTER ADJUSTMENT: Adjust the “AIR SHUTTER” to regulate the amount of air that enters into the burner for combustion. Loosen the set-screw of the air shutter. Reinstall the burner. Make certain that the burners are sitting properly on the orifices. Light the burners and adjust according to the following directions: 1.

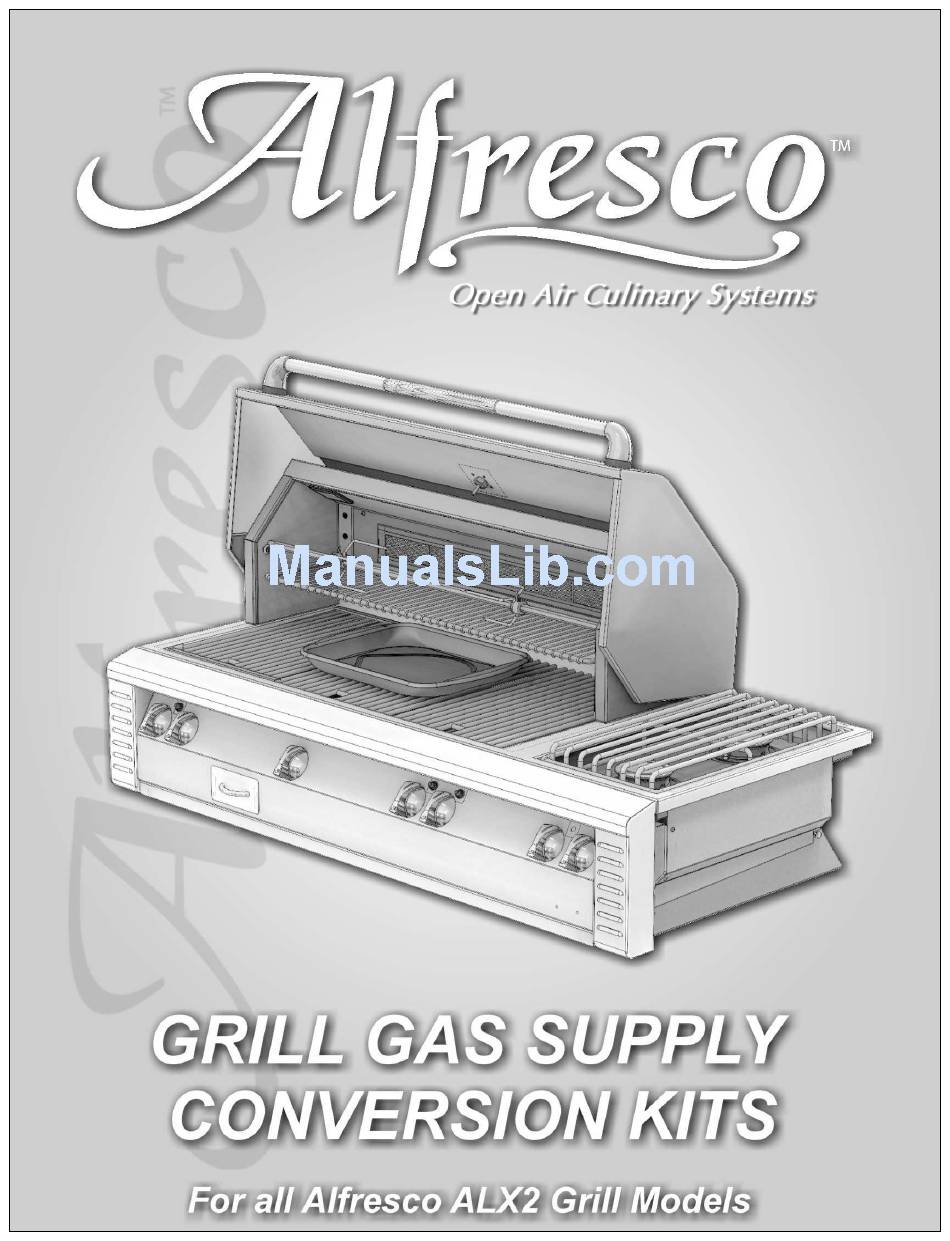

- Page 8 ™ Gourmet Grill is now ready for use with the new fuel. ALX2 GAS CONVERSION KIT NUMBERS GRILL SIZE: NG TO LP LP TO NG ALX2-30 (30SZ) 190-0048 190-0049 ALX2-42 / 56 (42SZ / 56SZ) 190-0050 190-0051 190-0052 190-0053 ALX2-56 BFG Alfresco ™ ALX2 Grill Gas Supply...
