Care and Use Manual
ALX2-42

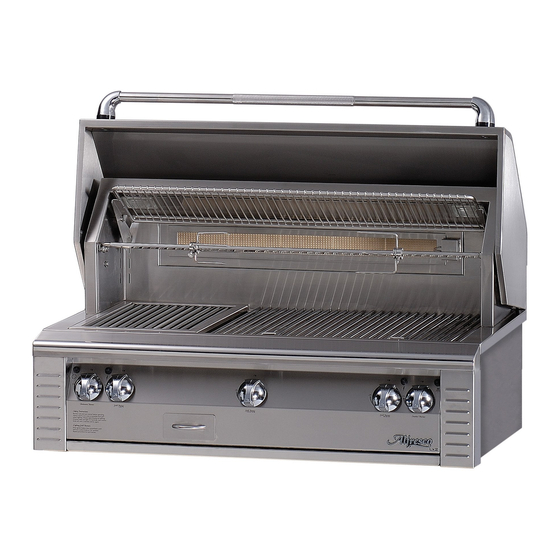

BUILT-IN 42" BBQ GRILL WITH TRIPLE BURNERS
INTEGRATED ROTISSERIE MOTOR AND LIGHTS
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
CREATED:
COMMERCE, CA. 90040
PROJECT TITLE:
PERMISSION
FROM
SUPERIOR
DRAWING TITLE:
ALX2-42 BBQ UNIT - BUILT IN
ADRIAN CRISCI
January 24, 2007 10:49:55 AM
C:\Working\
ALX2-42 BBQ
DRAWING NO.:
500-0019 MANUAL
SHEET 1 OF 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alfresco ALX2-42
Summary of Contents for Alfresco ALX2-42
- Page 1 SUPERIOR EQUIPMENT SOLUTIONS 7039 EAST SLAUSON AVENUE CREATED: January 24, 2007 10:49:55 AM COMMERCE, CA. 90040 PROJECT TITLE: PERMISSION FROM SUPERIOR DRAWING TITLE: ALX2-42 BBQ UNIT - BUILT IN ADRIAN CRISCI C:\Working\ ALX2-42 BBQ DRAWING NO.: 500-0019 MANUAL SHEET 1 OF 1...
-
Page 2: Bill Of Material
IGNITER MOUNTING PLATE LEFT 100-1212 ALX2-42 FIREWALL 200-0093 WASHER - PUSH LOCK 1/8" ID X 3/8" OD (FOR LOGO) 265-0005 BRIQUETTES - ALFRESCO CERAMIC (SET OF 24 PCS) 290-0031 LOGO - ALFRESCO 290-0038 BURNER - GRILL - "U" SHAPE 290-0059... - Page 3 BILL OF MATERIAL PART DESCRIPTION NUMBER 100-1081 SMOKER TRAY 100-1082 SMOKER TRAY HANDLE 290-0135 HANDLE - 3/8"Ø X 3" L - TAPPED 200-0200 WASHER - # 8 - LOCK SPRING - SS 200-0083 8-32 X 1/4 - PAN HEAD - PHILIPS SCREW THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC.
- Page 4 BBQ TRAY SUPPORT ASSY - RIGHT SIDE 510-0129 BBQ TRAY SUPPORT ASSY - LEFT SIDE 510-0219 ALX2-42 FIREBOX - WELDED PARTS THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN EQUIPMENT SOLUTIONS, INC.
- Page 5 ROTISSERIE GEAR ASSEMBLY 510-0218 42" BBQ - ROTISSERIE PANEL ASSY 510-0221 ALX2-42 BACK HOOD AND RIM - WELDED PARTS THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN EQUIPMENT SOLUTIONS, INC.
- Page 6 REGULATOR GAS - MAXITROL RV48CL440002 220-0341 MANIFOLD - 42" BBQ - 2006 MODEL 290-0030 KNOB BBQ - ALFRESCO "A" LETTER 290-0041 GAS VALVE - STRAIGHT - WITHOUT ORIFICES 290-0066 GAS VALVE - ANGLED - ORIFICE: INT= 0.95 mm / EXT=NONE SEE NOTE GAS VALVE - ANGLED WITH ORIFICE >>>...
- Page 7 290-0119 ROLLER WHEEL - STAINLESS STL - ¾" Ø - 510-0220 ALX2-42 GREASE TRAY - WELDED PARTS THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN EQUIPMENT SOLUTIONS, INC.
- Page 8 BILL OF MATERIAL PART DESCRIPTION NUMBER DRAWN BY: CREATED: QTY. ALX2-42 BBQ ALX2-42 FRONT HOOD - MAIN ASSEMBLY 510-0196 MANUAL...
-
Page 9: Replacement Lamp
IGNITER MODULE - 2 POINTS (WITH CAP) 210-0198 SWITCH - WEATHER BOOT & CAP 210-0331 ALX2-BBQs RIGHT LAMP ASSEMBLY WITH HARNESS 210-0333 ALX2-42 LEFT LAMP ASSEMBLY WITH HARNESS 210-0335 ALX2-BBQs LIGHT SWITCH WITH HARNESS 210-0338 ALX2-42 ROTISSERIE SWITCH WITH HARNESS 210-0340... - Page 10 SCREW 8-18 X ½ - SS - MMC# 92364A194 210-0240 ELECTRODE - DUAL TIP - IR BURNERS 510-0222 ALX2-42 - ROTISSERIE PANEL - WELDED PARTS THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN EQUIPMENT SOLUTIONS, INC.
- Page 11 ALX2-BBQ WIRING DIAGRAM ALX2-BBQ 6 POLE TERMINAL WITH 90° QUICK TABS DRAWN BY: CREATED:...
- Page 12 NOTES: HOW TO OBTAIN SERVICE (866) 203-5607 • • • • • www.alfrescogrills.com Visit us on the WEB at:...
