Alfresco ALX2-56 BFG Manual

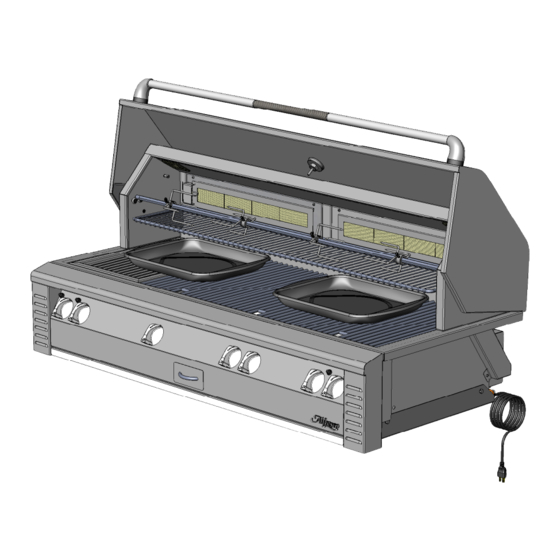

Built-in 56" bbq with triple grill burners, sear-zone, dual rotisserie burners, integrated rotisserie motor and lights
Hide thumbs Also See for ALX2-56 BFG:

Advertisement

Quick Links

Download this manual See also: Care and Use Manual

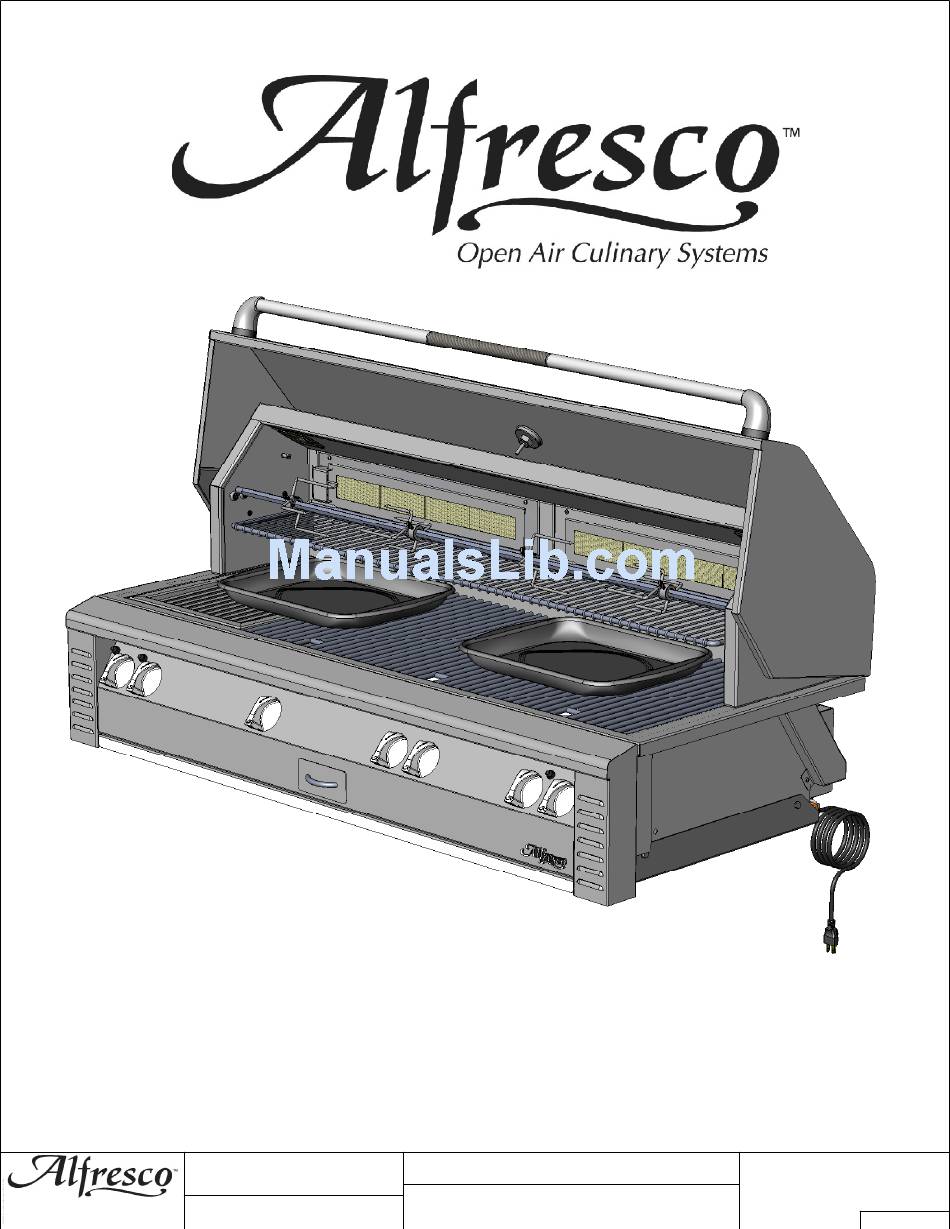

ALX2-56 BFG
BUILT-IN 56" BBQ WITH TRIPLE GRILL BURNERS,
SEAR-ZONE™, DUAL ROTISSERIE BURNERS,
INTEGRATED ROTISSERIE MOTOR AND LIGHTS.
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN
PERMISSION
FROM
SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY: ADRIAN CRISCI
CREATED: 4/2/2007 2:09:53 PM
PROJECT TITLE:
ALX2-56 BFG BBQ
DRAWING TITLE:
ALX2-56 BFG BBQ
DRAWING NO.:
500-0030 MANUAL
SHEET 1 OF 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALX2-56 BFG and is the answer not in the manual?

Questions and answers

Related Manuals for Alfresco ALX2-56 BFG

Summary of Contents for Alfresco ALX2-56 BFG

  • Page 1 INTEGRATED ROTISSERIE MOTOR AND LIGHTS. PROJECT TITLE: DRAWING NO.: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS ALX2-56 BFG BBQ INC. ANY REPRODUCTION IN PART OR AS A WHOLE 500-0030 MANUAL WITHOUT WRITTEN PERMISSION...
  • Page 2 IGNITER MOUNTING PLATE LEFT 100-1201 BFG SEARZONE™ HEAT SHIELD 200-0093 WASHER - PUSH LOCK 1/8" ID X 3/8" OD (FOR LOGO) 265-0005 BRIQUETTES - ALFRESCO CERAMIC (SET OF 24 PCS) 290-0031 LOGO - ALFRESCO 290-0038 BURNER - GRILL - "U" SHAPE 290-0052 ALFRESCO SEAR ZONE™...

  • Page 3: Bill Of Material

    BBQ TRAY SUPPORT ASSY - RIGHT SIDE 510-0129 BBQ TRAY SUPPORT ASSY - LEFT SIDE 510-0247 ALX2-56 BFG FIREBOX - WELDED PARTS PROJECT TITLE: DRAWING NO.: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS ALX2-56 BFG BBQ INC.
  • Page 4 510-0185 30"- ROTISSERIE PANEL (LEFT SIDE ONLY) 510-0217 30"- ROTISSERIE PANEL ASSEMBLY 510-0248 ALX2-56 BFG BACK HOOD AND RIM - WELDED PARTS PROJECT TITLE: DRAWING NO.: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS ALX2-56 BFG BBQ INC.
  • Page 5 30" ROTISSERIE PANEL LEFT SIDE - WELDED PARTS PROJECT TITLE: DRAWING NO.: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS ALX2-56 BFG BBQ INC. ANY REPRODUCTION IN PART OR AS A WHOLE 510-0185 MANUAL WITHOUT WRITTEN PERMISSION...
  • Page 6 BILL OF MATERIAL PART DESCRIPTION QTY. NUMBER 100-1225 ROTISSERIE ELECTRODE COVER 100-1226 ROTISSERIE ELECTRODE BRACKET 200-0111 SCREW 8-18 X ½ - SS - MMC# 92364A194 210-0240 ELECTRODE - DUAL TIP - IR BURNERS 510-0250 ALX2-30 ROTISSERY PANEL - WELDED PARTS PROJECT TITLE: DRAWING NO.: THE INFORMATION CONTAINED IN THIS DRAWING IS THE...
  • Page 7 HANDLE - END CAP ASSEMBLY 290-0089 HANDLE BAR - 50" SMOOTH 510-0187 ALX2-56 BFG OUSIDE SKIN 210-0418 ALFRESCO - 3-1/8"Ø - ALX2 THERMOMETER PROJECT TITLE: DRAWING NO.: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS ALX2-56 BFG BBQ INC.
  • Page 8 IGNITER MODULE - 4 POINTS (WITH CAP) 210-0198 SWITCH - WEATHER BOOT & CAP 210-0331 ALX2-BBQs RIGHT LAMP ASSEMBLY WITH HARNESS 210-0334 ALX2-56 BFG LEFT LAMP ASSEMBLY WITH HARNESS 210-0335 ALX2-BBQs LIGHT SWITCH WITH HARNESS 210-0339 ALX2-56 BFG ROTISSERIE SWITCH WITH HARNESS 210-0340...
  • Page 9 220-0293 ELBOW 1/4" FPT x 3/8" COMP 220-0349 MANIFOLD - ALX2-56" BFG 290-0030 KNOB BBQ - ALFRESCO "A" LETTER 290-0041 GAS VALVE - STRAIGHT - WITHOUT ORIFICES 290-0066 GAS VALVE - ANGLED - ORIFICE: INT= 0.95 mm / EXT=NONE SEE NOTE GAS VALVE - ANGLED WITH ORIFICE >>>...

  • Page 10: Light Switch

    LIGHT SWITCH MOTOR SWITCH TERMINAL BLOCK 210-0302 ROTISSERIE MOTOR JUMPER JUMPER ~ 115 VAC - 50/60 Hz. LIGHTS (2) 120 VAC x 40W MODEL: G940120 SOCKET: G9 ALX2-BBQ WIRING DIAGRAM DRAWING NO.: THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROJECT TITLE: SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS ALX2-BBQ...
