MAIN BODY INSTALLATION:
STEP 1:
Remove the Left or Right Side
Table from the ALX2 cart.
(for the purpose of this guide the
ALSB-2C will be installed on
right side of the cart.)
The side table is supported by 4
Philips screws (10-32) accessi-
ble from the bottom side.
STEP 2:
Install 4 new 10-32 x 1/2" socket
head screws as well as the
11/16"Ø grommet provided.

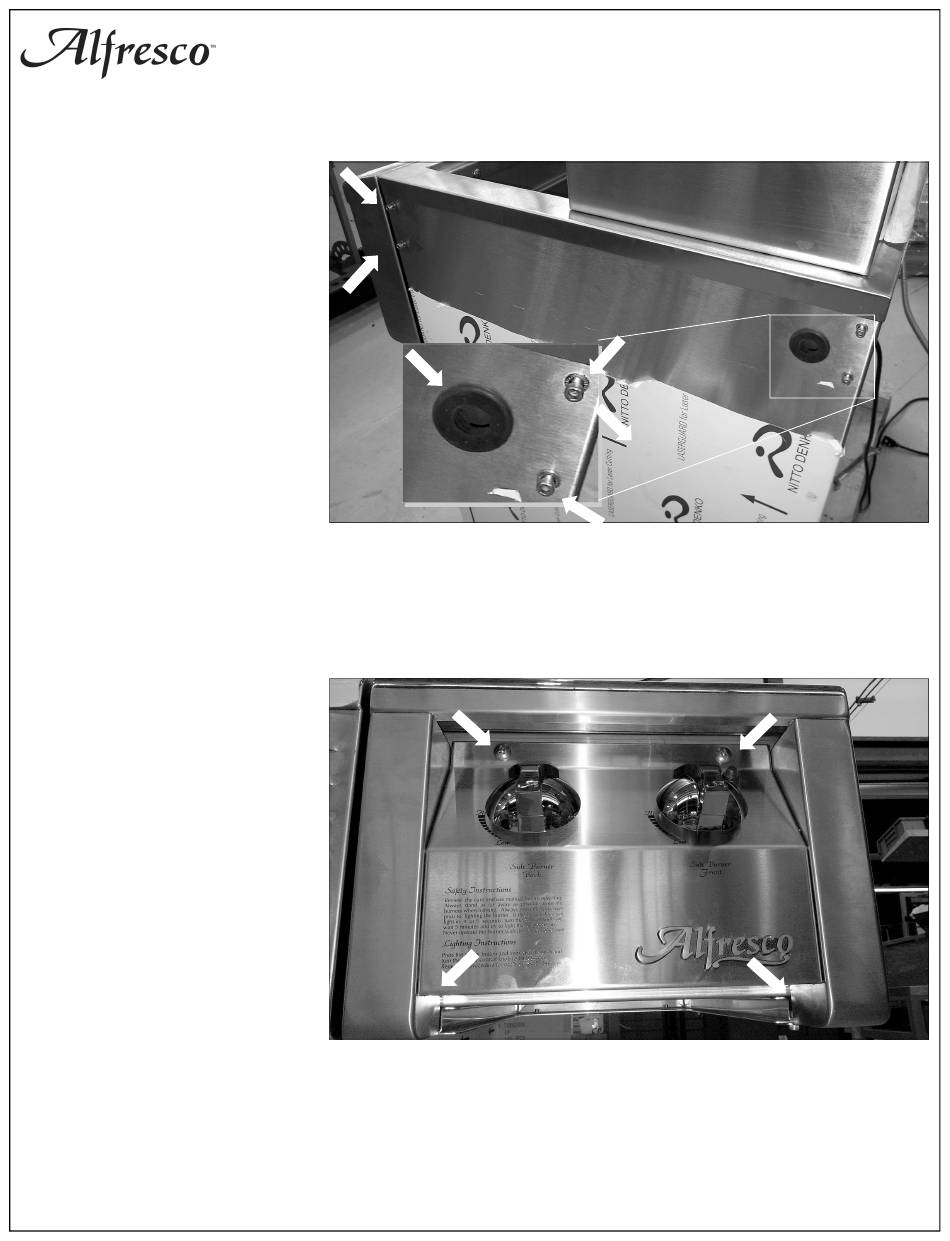

(see picture 1)
STEP 3:
Remove the ALSB-2C burner
knobs.
Remove ALSB-2C front panel by
loosening the 2 Philips screws
on the inside top and 2 hex-head
bolts at the bottom.
(see picture 2)
STEP 4:
Install the ALSB-2C side burner
body on the cart by hooking and
latching the body of the burner
onto the cart's screws installed
in STEP 2. (see picture 3)
ALSB-2C INSTALLATION GUIDE:
Picture 1
Picture 2
