Alfresco ALX2-56SZ Parts List

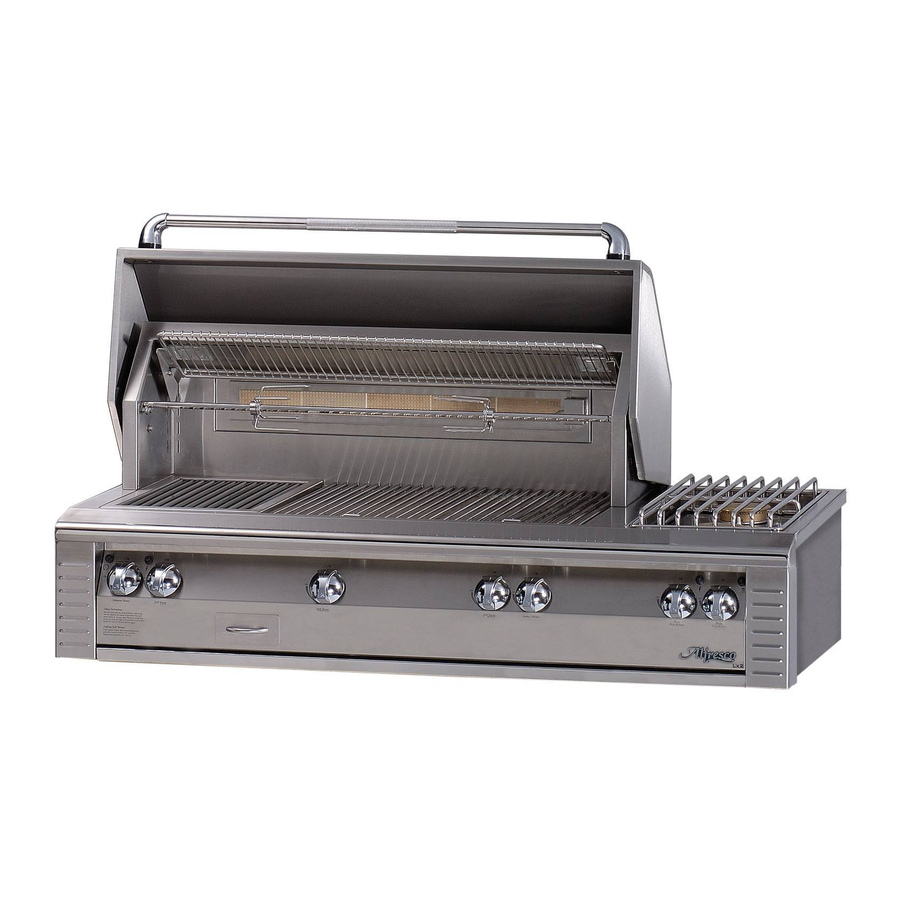

Built-in 56" bbq with dual grill burners, sear-zone, double side burners, integrated rotisserie motor and lights
Hide thumbs Also See for ALX2-56SZ:

Advertisement

Quick Links

Download this manual See also: Care and Use Manual
ALX2-56SZ
BUILT-IN 56" BBQ WITH DUAL GRILL BURNERS,
SEAR-ZONE™, DOUBLE SIDE BURNERS,
INTEGRATED ROTISSERIE MOTOR AND LIGHTS.
DRAWN BY:
CREATED:
ALX2-56SZ BBQ
ALX2-56SZ BBQ - 2 U BURNER + 1 SZ
500-0022 MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALX2-56SZ and is the answer not in the manual?

Questions and answers

Related Manuals for Alfresco ALX2-56SZ

Summary of Contents for Alfresco ALX2-56SZ

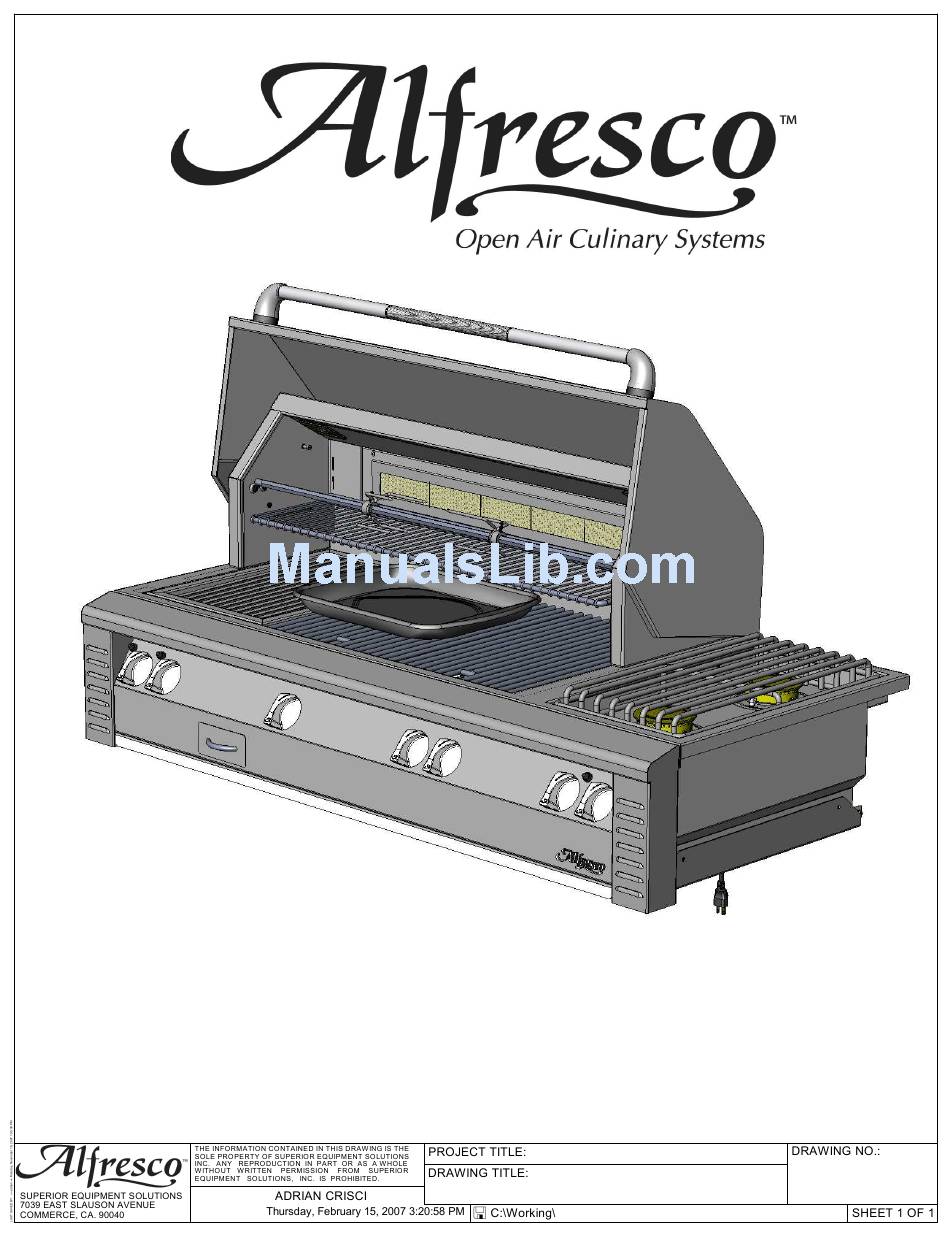

  • Page 1 ALX2-56SZ BUILT-IN 56" BBQ WITH DUAL GRILL BURNERS, SEAR-ZONE™, DOUBLE SIDE BURNERS, INTEGRATED ROTISSERIE MOTOR AND LIGHTS. DRAWN BY: CREATED: ALX2-56SZ BBQ ALX2-56SZ BBQ - 2 U BURNER + 1 SZ 500-0022 MANUAL...
  • Page 2 BILL OF MATERIAL PART DESCRIPTION NUMBER DRAWN BY: CREATED: ALX2-56SZ BBQ ALX2-56SZ BBQ - 2 U BURNER + 1 SZ 500-0022 MANUAL-1...
  • Page 3 BILL OF MATERIAL PART DESCRIPTION NUMBER 100-1081 SMOKER TRAY 100-1082 SMOKER TRAY HANDLE 290-0135 HANDLE - 3/8"Ø X 3" L - TAPPED 200-0200 WASHER - # 8 - LOCK SPRING - SS 200-0083 8-32 X 1/4 - PAN HEAD - PHILIPS SCREW THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC.
  • Page 4 BILL OF MATERIAL PART DESCRIPTION NUMBER 200-0087 1/4" LOCK WASHER 200-0089 1/4-20 X 1/2 - HEX HEAD BOLT 510-0128 BBQ TRAY SUPPORT ASSY - RIGHT SIDE 510-0129 BBQ TRAY SUPPORT ASSY - LEFT SIDE 510-0219 ALX2-42 FIREBOX - WELDED PARTS THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC.
  • Page 5 BILL OF MATERIAL PART DESCRIPTION NUMBER 100-1092 ROTISSERIE GEAR COVER 200-0079 8-32 X 3/4 - PAN HEAD - PHILIPS SCREW 200-0086 1/4-20 X 3/8 - TRUSS HEAD - PHILIPS SCREW 200-0111 SCREW 8-18 X ½ - SS - MMC# 92364A194 200-0148 SCREW 10-32 X 3/4"...
  • Page 6 BILL OF MATERIAL PART DESCRIPTION NUMBER 200-0073 10-32 - HEX NUT 200-0075 # 10 LOCK WASHER 200-0148 SCREW 10-32 X 3/4" - FLAT HEAD - PHILIPS - 82° - SS 290-0119 ROLLER WHEEL - STAINLESS STL - ¾" Ø - 510-0230 ALX2-56 - GREASE TRAY - WELDED PARTS THE INFORMATION CONTAINED IN THIS DRAWING IS THE...
  • Page 7 BILL OF MATERIAL PART DESCRIPTION NUMBER DRAWN BY: CREATED: QTY. ALX2-42 BBQ ALX2-42 FRONT HOOD - MAIN ASSEMBLY 510-0196 MANUAL...

  • Page 8: Replacement Parts

    ALX2-56 BBQ - LIGHT SWITCH WITH HARNESS 210-0338 ALX2-42 ROTISSERIE SWITCH WITH HARNESS 210-0340 SWITCH BBQ - IGNITER ONLY - OFF [ON] MOMENTARY 210-0346 ALX2-56SZ IGNITER WIRE KIT 290-0074 ELECTRODE ASSEMBLY >>> SEE NOTE 510-0200 ALX2 ROTISSERIE MOTOR ASSEMBLY & J-BOX REPLACEMENT CAP...
  • Page 9 BILL OF MATERIAL PART DESCRIPTION NUMBER 100-1225 ROTISSERIE ELECTRODE COVER 100-1226 ROTISSERIE ELECTRODE BRACKET 200-0111 SCREW 8-18 X ½ - SS - MMC# 92364A194 210-0240 ELECTRODE - DUAL TIP - IR BURNERS 510-0222 ALX2-42 - ROTISSERIE PANEL - WELDED PARTS THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC.
  • Page 10 February 21, 2007 9:32:35 AM COMMERCE, CA. 90040 PROJECT TITLE: PERMISSION FROM SUPERIOR DRAWING TITLE: ALX2-56SZ GAS MANIFOLD 2 U-BURNER + SZ ADRIAN CRISCI C:\Working\ QTY. NOTE: ORIFICE, VALVE OR BURNER TO CHANGE ACCORDING TO GAS SUPPLY (NG OR LP).
  • Page 11 ALX2-BBQ WIRING DIAGRAM ALX2-BBQ 6 POLE TERMINAL WITH 90° QUICK TABS DRAWN BY: CREATED:...

  • Page 12: How To Obtain Service

    NOTES: HOW TO OBTAIN SERVICE (866) 203-5607 • • • • • www.alfrescogrills.com Visit us on the WEB at:...
