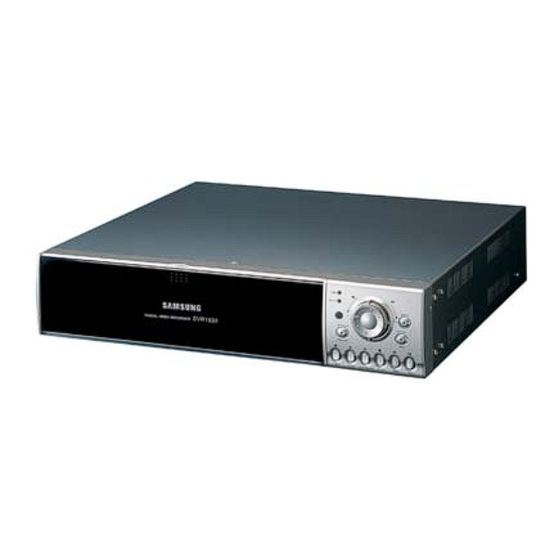

Samsung SVR-1630 User Manual

Hide thumbs Also See for SVR-1630:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual , Quick Manual
SVR-1630
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Samsung SVR-1630

Summary of Contents for Samsung SVR-1630

  • Page 1 SVR-1630 User Guide...

  • Page 2: Fcc Compliance Statement

    Caution This device is registered as an EMC for commercial purposes. Vendors and users should be aware of this EMC registration. If this device is sold or purchased by mistake, the device will need to be altered for domestic use. FCC Compliance Statement Caution : Any changes or modifications in the construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the...
  • Page 3 4. The SVR-1630 can be damaged by physical shock because it contains an HDD. Therefore, do not throw or drop the device. 5. The SVR-1630 is made of metal. If it is thrown at anybody it may cause harm. Install the device in a safe place out of the reach of children.

  • Page 4: Table Of Contents

    3.8.6 Auxiliary On ....................17 3.8.7 Auxiliary Off ....................17 Relay Control......................18 3.10 Screen Lock ......................18 3.11 Search System Log ....................19 3.12 Monitor B.......................20 3.12.1 Monitoring.......................20 3.12.2 Multiple Channels Playback ................20 3.12.3 1 Channel Playback..................21 Playback........................22 Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 5 Event Setup....................46 Monitor Setup ......................47 5.6.1 Monitor A & Monitor B ..................47 5.6.2 VGA Monitor ....................48 System Setup ......................49 5.7.1 Audio Setup....................49 5.7.2 Time Schedule Setup..................50 5.7.3 Specific Time Setup ..................51 5.7.4 Security Setup ....................52 Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 6 COM1 RS232 Menu Setup in Serial Setup............70 6.2.2 PTZ Menu Setup in Serial Setup..............70 Appendix ..........................71 Technical Specification....................72 Use an IP Address in a Local Network ................75 Executive Summary....................75 IP Configuration and Network Class...............75 Class C Network ....................76 Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 7: Executive Summary

    SVR-1630 adopts FAT32, one of the major Windows formats, and so the backed- up Hard Disk is immediately available through the user’s PC. The SVR-1630 also enables copying of 60 second’s worth of small images using a USB port.

  • Page 8: Major Features

    - Easy interface using Jog/Shuttle - Remote controller - Registration of up to 32 DVRs in the SVR Manager (PC user interface) (Managing a total of 512 Channels (32 DVRs x 16 Channels) as one program) Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 9: Product Description

    : flashes when the HDD is active : flashes during monitoring on a network RX/TX : flashes during image saving (2) Remote Controller Receiver (3) IEEE 1394 and USB Interface IEEE1394 and USB Port, one each Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 10 : starts and pauses playback (still image is displayed) PLAY PAUSE : stops the Playback Mode STOP : plays faster than normal speed FAST : changes the playback direction : changes the playback direction Jog Dial : adjusts the playback speed Shuttle Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 11 (7) Jog Shuttle (8) Power Switch Power On/Off switch. On OFF, the power off procedure varies depending on the system setting. See the section “4.5 Supplying Power and Running” in “Install Manual” for more details. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 12: Rear View

    1 VGA Video Output Terminal 2.3 Installation Summary - Camera Connection - Monitor Connection - Ethernet Connection (for remote access to the DVR or for registering IP cameras) - Audio Connnection - Power Connection and Start-up Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 13: Basic Configuration

    Basic Configuration 3. Monitoring When the SVR-1630 is on, images from all channels are displayed in Monitor Mode. (When 8 Channels are connected, the images are displayed on the 3x3 split screen). This section is for using all the SVR-1630 monitoring modes.

  • Page 14: Channel Switching

    Basic System Mode is available when the number of cameras connected is higher than the number of current split screens. That is, when more than 2 cameras are connected in Single Screen Mode and more than 5 cameras in 2x2 Split Mode. Automatic Switching doesn’t work in 4x4 Split Mode. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 15: User Switching Mode

    1. When Event Pop-up Hold (sec) is off, the Event Pop-up function doesn’t work. 2. When Event Pop-up Hold (sec) is set to Keep, the original screen is not displayed unless you press one of the buttons. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 16: View Enlarged Screen

    This menu is for using the PAN and TILT function in Real-Time Monitoring Mode. - Select “Pan/Tilt” in the PTZ Menu OSD. - Control Pan and Tilt using the arrow keys on the front. Pan : Left and Right Key. Tilt : Up/Down Key Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 17: Zoom/Focus Control

    This menu is for releasing a PTZ Auxiliary. - Press the [MENU] button under PTZ control mode. - Select “Auxiliary Off” in the PTZ Menu OSD. - Press the Auxiliary Number to release (1~16) Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 18: Relay Control

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 3.9 Relay Control - This menu turns the Relay on or off. (The SVR-1630 supports 4 Relay outputs.) - Press the [RELAY] button. - The “Relay On” Icon is displayed on the screen. - Press the relevant Relay number (from 1 to 4), and the Relay Output signal is transmitted.

  • Page 19: Search System Log

    Record On : Recording is resumed by press the REC switch. Time Shift Start : When the time is changed, the time before the change is displayed. Time Shift Finish : When the time is changed, the time after the change is displayed. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 20: Monitor B

    3.12.2 Multiple Channels Playback Monitor A searches and plays several images in split screen and Monitor B monitors the image from one channel in a large screen. That is, it is possible to monitor channels during playback. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 21: Channel Playback

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 3.12.3 1 Channel Playback Monitor A monitors images from multiple channels and Monitor B searches and plays the image from one channel. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 22: Playback

    10 steps to the right and left and 7 steps upward and downward. - Use the Jog Dial and Shuttle to move the screen. - Press the [ZOOM] button again, and the original screen reappears. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 23: Other Playback Functions

    Clockwise direction increases speed and anti- clockwise direction reduces speed. 4.2 Search Mode This menu is for searching time or event logs in Search Mode and playing the data of a specified time. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 24 2. Press the Up Key in the first log of the first page, and the previous log block is shown. 3. Press the Down Key in the last log of the last page, and the next log block is shown. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 25: Copy/Backup/Delete

    The Copy function is to back up the images saved to a USB Memory Stick, so it can only be used during playback. If you use the Copy button while monitoring, the Copy function may not work properly. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 26: Backup Data

    Start Date & Time / End Date & Time Determines the scope of backup. Select Disk Determines what Disk is used for backup. Backup files are automatically divided into units of 700MB. <Note> USB is not supported for backup. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 27: Delete Data

    3. While deleting data, images are not saved. 4. The size of one block in the SVR-1630 file system is 64MB. Since data is deleted in blocks, the data may not be deleted to the exact time that you specify.

  • Page 28: Menu Configuration

    Hard Disk. <Button Input Procedure > -Press the [MENU] button on the front of the SVR-1630. -Go to the “Quick Setup” menu. -Go to the “Date/Time” menu of “Quick Setup” (using the arrow keys on the front) -Press the [ENTER] button.
  • Page 29 Time Zone Select the time zone using the arrow keys on the front of the SVR-1630. Each time the arrow buttons are pressed, the time zone is changed. (To go to the previous menu, press the [ESC] button on the front. This operation applies equally to the OSD menu.)
  • Page 30 However, the “Date” & “Time” setting can cause the serious damage in the HDD Recording File System so it is not saved automatically. For applying the changes, you need to save them manually by pressing the [Apply Date/Time] button. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 31: Recording Setup

    “Macro Setup” is indicated. When you change any part of the Schedule Record menu, “Customer Setup” is displayed. <Note> “Macro Setup” is displayed only when the Schedule Recording for all channels is the same. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 32 Sets whether to record, depending on the Event Record setting conditions. Apply For applying the setting values, press the “Apply” button and then the [ESC] button. The previous menu is displayed. Next, the SVR-1630 starts recording according to the defined recording method. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 33: Camera Setup

    <TIP> Text Input in the Text Input Dialogue Box Use the arrow keys to enter characters. Use the Up/Down keys to select the characters to enter and Left/Right keys to go to the position for character entry. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 34 Press the [ENTER] button and set the PTZ ports connected to the relevant channels using the [◄] or [►] button. Address Press the [ENTER] button, and the text input window for the PTZ Base Address Setup is displayed. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 35: Schedule Record Setup

    1. The differences from the record setting in Quick Setup are that this setup doesn’t have the Audio Record Setup, and sets whether to record at a specific time. 2. Press the “Apply” button to apply the setting. 3. See Setup by Channel for details. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 36: Setup By Channel

    The Time Schedule sets the recording conditions for cameras according to each time schedule. The time zones are divided into four zones: Weekday Day/Weekday Night/Weekend Day/Weekend Night. Night and Day and Weekday and Weekend Time Setting can be set in the “System” menu. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 37 This menu is used to differentiate recording conditions by setting specific time zones. That is, when you set specific day time zones for weekdays, you can record differently according to two setting conditions. The specific time zones are set in the “System” menu. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 38 Press the [ENTER] button and set “Yes/No” using the [◄] or [►] button. Set the detailed event recording conditions in the “Event Record” menu. This menu only sets whether to record, depending on the event recording setup. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 39: Event Record Setup

    5.4 Event Record Setup This menu is to set the event recording conditions. It is necessary to set the “Event Record” menu to “Yes” in “Schedule Record” to enable the SVR-1630 to record events, after the recording conditions are set.

  • Page 40: Motion Detection Setup

    This menu is to set whether, when no video signal is detected, it should be taken as MD. It can be set to Yes or No. <Note> Press the “Apply” button for all channel setup. If this is not done, the setting is not applied. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 41: Text Setup

    “ENTER” button. After setting, press the “ESC” button, and you go to the previous menu. 5.4.3 Text Setup This menu is to set the input text information. It is necessary to set COM1 in “System Serial Setup” in the OSD menu. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 42 ATM. The SVR-1630 can’t automatically detect this difference. So the SVR-1630 considers the last line as the final line after a certain period of time from the final input, and decides whether to save the input data as complete data.

  • Page 43: All Channel Event Recording Setup

    Pairing means one-to-one interlocking between the channel and the Sensor/MD. Text This menu should be set to On for displaying or saving text information. <Note> 1. Press the “Apply” button to apply All Channel Setup 2. See Setup by Channel for details. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 44: Setup By Channel

    Post Record Time” are set to one second each. Pre Record Time (sec) The Pre Record Time can be set up to 10 seconds. Post Record Time (sec) This menu can be set to up to 60 seconds. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 45: Event Action Setup

    Decides whether to apply the setting values above to specific time zones. <Note> 1. All Channel Setup is applied to the time schedule in the same way. 2. Press the “Apply” button to apply All Channel Setup. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 46: Event Setup

    Enters the E-mail Address to receive event notices. SMTP Enters the DNS of the Mail Relay Server. Sending Interval (min) Sets the E-mail sending interval <Note> For using the E-mail Notice function, the DNS should be set in Network Setup. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 47: Monitor Setup

    2x2 Split Mode and channel numbers 1 and 2 are displayed at the same time. The hold time is automatically extended from the final pop-up time(for up to 8 channels) User Sequence Configuration Edits the Automatic Switching function of the User Mode. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 48: Vga Monitor

    Split Screen (5,6,7,8) Full Screen (5) Full Screen (8) 3x3 Split Screen (9,10,11,12,13,14,15,16). 5.6.2 VGA Monitor Select the VGA Monitor item in the Monitor Menu, and you can then set the Monitor mode to use. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 49: System Setup

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 5.7 System Setup 5.7.1 Audio Setup The SVR-1630 supports only one channel audio recording. However, it can be interlocked with any channel during playback. Record Sets whether or not to record audio. Audio Gain The Audio Gain can be set from –7 to +8.

  • Page 50: Time Schedule Setup

    Sets the weekday time zones from Monday to Sunday using the Left and Right keys. Time zones that are not set are set to weekend time zones. Day Start/End Sets the day time zones using the Left and Right buttons. Time zones that are not set are set to night time zones. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 51: Specific Time Setup

    You can set other specific time zones in each time zone (Weekday Day, Weekday Night, Weekend Day and Weekend Night). For example, you can apply a variety of conditions by separately setting lunch times or meeting times. You can set up to 4 time zones as specific time zones. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 52: Security Setup

    The Administrator authority can access all functions. The default is “9999”. Remote Setup When this menu is set to “Enable”, you can perform remote setting using the SVR-1630 Manager. Remote Relay When this menu is set to “Enable”, you can control “Relay Out” using the SVR-1630 Manager.

  • Page 53: Disk Setup

    If there is no available space in the Hard Disk, event recording images are automatically deleted. Backup Reminder This menu is for notifying backup periods by day, week and month. Day/Date/Time The setting values are applied differently according to the setting values in “Backup Reminder”. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 54: Network Setup

    LAN, set to “Ethernet”. When the SVR-1630 is connected to an xDSL line with the PPPoE method, set to “xDSL”. However, if an xDSL line is connected, but not with PPPoE, set to ‘Ethernet’.
  • Page 55 SVR-1630 5.7.6.2 xDSL When the SVR-1630 is connected to an xDSL line and the PPPoE method is used, it is necessary to set the user ID and password. User ID/Password When the SVR-1630 is connected to xDSL, it is necessary to set a user ID and password.
  • Page 56 The registration interval should be set in “SWR Interval” for continous registration. The dynamic IP address regularly updates information to the SWR Server according to the setting values. If you set the registration interval as ‘0” or the SVR-1630 doesn’t send any information for two days, the relevant data is deleted from the SWR.
  • Page 57 SWR of the registered Group Group ID Group ID is to set the group name to register the SVR-1630. It is recommended not to use a simple group name, to avoid potential duplication of names. Status Indicates the SVR-1630’s registration status.
  • Page 58 Monitoring Port / Playback Port The SVR-1630 uses the 8001 port as the Monitoring Port and the 8105 port as the Playback Port. For changing ports, press the [ENTER] button and enter the port directly in the Text Input Setup Window.
  • Page 59 NTP Mode Sets whether to run the NTP mode of the SVR-1630 as a client or as a server. NTP Server Location When the NTP Mode is set to Client, this is enabled. Sets whether the NTP server is on a Local Network or the Internet (Public).

  • Page 60: Serial Setup

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 5.7.1 Serial Setup The SVR-1630 can set up to use 4 COM ports. Device Sets the external devices connected to the SVR-1630. Interface This menu sets the Interface to RS422 or RS485 in the “RS422/485” menu.

  • Page 61: Other Functions

    <Button Input Procedure> - Press the [MENU] button and go to “Etc.” under “System” Remote Control ID Sets up to 16 Remote Controller IDs. You can control up to 16 units of SVR-1630 using one remote controller. <Registration of Remote Controller>...
  • Page 62 For example, if 5 cameras are connected to the first SVR-1630 and 6 cameras are connected to the second SVR-1630, set 1 to the first SVR-1630 and 6 to the second SVR- 1630. That is, the cameras for the first SVR-1630 are assigned PTZ addresses from 1 to 5 and the cameras for the second SVR-1630 are automatically assigned PTZ addresses from 6 to 11.

  • Page 63: Disk Management

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 5.8 Disk Management This section explains how to add or format internal and external Hard Disks. The SVR-1630 supports a variety of external storage methods. <Button Input Procedure> Press the [MENU] button and go to “DISK”, the next “System”menu .

  • Page 64: Disk Manager

    : Logically removes the currently used HDD. The HDD can be reused without [Remove] formatting using the “Add used” command later. : completely deletes the HDD when it is separated from the SVR-1630 but [Confirm Removed] remains in the list.
  • Page 65 Removed’ to delete the HDD from the list IntA Internal Primary HDD IntB Internal Auxiliary HDD R-HDD HDD in the internal hard rack External HDD. The orders of External HDDs can be changed according to the identified order. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 66: Expansion

    Set the Record and Monitoring menu to Yes and enter the desired values for the interlocking channels. When Star Finger 007 is connected, set only the relevant device. For other devices, set to Manual and set all sub-menus. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 67: Rs232 Menu Setup In Serial Setup

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 6.1.2 RS232 Menu Setup in Serial Setup Set the connection device as text in COM1 in the Serial Setup menu. And set the appropriate values for Baud Rate, Parity, Stop and Data. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 68: Setup In Event Recording

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 6.1.3 Setup in Event Recording Set the Text Event to Yes. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 69: Setup In Schedule Recording

    IDs, text display, event display and channel number display. Therefore, for viewing text information, press the Help button in monitoring or playback to set the channel IDs and text display. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 70: Keyboard

    Set the connection device in RS232 in the Serial Setup menu to Keyboard. And set the appropriate values for Baud Rate, Parity, Stop and Data. 6.2.2 PTZ Menu Setup in Serial Setup Set the communication environment between cameras, other devices and the SVR-1630 to control using the keyboard. Contact your local vendor for detailed setup by product.

  • Page 71: Appendix

    오류! 스타일이 정의되어 있지 않습니다. SVR-1630 Appendix Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 72: Technical Specification

    Event conditions: MD & sensor inputs Pre Record Time : 1 ~ 10 seconds Pre/ Event Record Time Event Record Time : 1 ~ 60 seconds Data-loss protection against power failure Intelligent file system Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 73 On-screen PTZ control by PC Remote User Preset: 8 points per channel Group: 1 group per channel ‘Return Home Position’ support Software-controlled 16 sensor inputs Sensor Inputs and Event Outputs Software-controlled 4 event outputs Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 74 Password (User or Administrator Authentication) Security Watermarking (For image copying) AC Free Volt Power Max. 85W Power Consumption (with 2HDD) Typical 60W Operating: 41 ~ 113 degrees F. Environmental Spec Storage: -49 ~ 149 degrees F. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 75: Use An Ip Address In A Local Network

    Class D: holds all IPs with numbers from 224 to 239 for X1. - This is for Multicast and general users don’t use this network. Class E: holds all IPs with numbers from 240 to 255 for X1. - This network is not currently used. Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)

  • Page 76: Class C Network

    Subnet Mask address is limited. (0, 4, 8, 16, 32, 64, 128, 192) 2) Network Configuration ● 1 Network Network ID: xxx.xxx.xxx.0 Gateway Address: xxx.xxx.xxx.1 Subnet Mask: 255.255.255.0 Broadcast Address: xxx.xxx.xxx.255 IP Addresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.254 Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 77 Sub-Network ID: xxx.xxx.xxx.64 Gateway Address: xxx.xxx.xxx.65 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.127 IP Addresses: xxx.xxx.xxx.66 – xxx.xxx.xxx.126 Sub-Network ID: xxx.xxx.xxx.128 Gateway Address: xxx.xxx.xxx.129 Subnet Mask: 255.255.255.128 Broadcast Address: xxx.xxx.xxx.255 IP Addresses: xxx.xxx.xxx.130 – xxx.xxx.xxx.254 Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
  • Page 78 Sub-Network ID: xxx.xxx.xxx.128 Gateway Address: xxx.xxx.xxx.129 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.191 IP Addresses: xxx.xxx.xxx.130 – xxx.xxx.xxx.190 Sub-Network ID: xxx.xxx.xxx.192 Gateway Address: xxx.xxx.xxx.193 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.255 IP Addresses: xxx.xxx.xxx.194 – xxx.xxx.xxx.254 Samsung Techwin CO.,Ltd. 2004.07.2001 (v 1.0)
