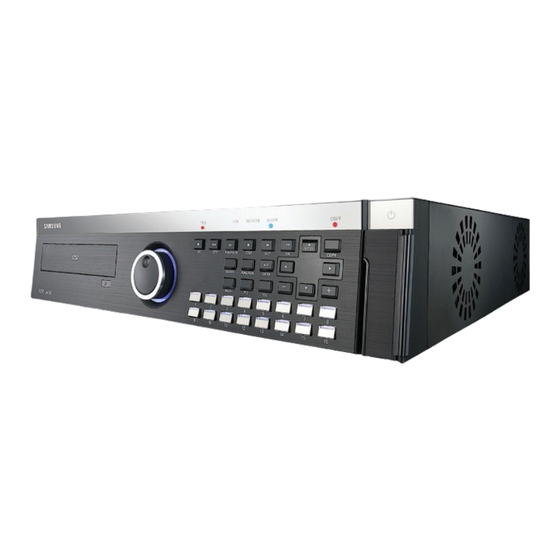

Digital Video Recorder SVR-1650E/1640E/1640A/950E
User's Manual
Thank you for purchasing a Samsung Digital Video Recorder.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Samsung SVR-1650E

Summary of Contents for Samsung SVR-1650E

  • Page 1 Premium Security Digital Video Recorder SVR-1650E/1640E/1640A/950E User’s Manual Thank you for purchasing a Samsung Digital Video Recorder. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. ENGLISH...

  • Page 3: Introduction

    Thank you for purchasing the SVR-1650E/1640E/1640A/950E. This is a user manual for SVR-1650E/1640E/1640A/950E. Before product installation and operation, please become thoroughly familiar with this user manual and other manuals referenced by this manual. This user manual and the software and hardware described here are protected by the copyright law.

  • Page 4: Table Of Contents

    Table of Contents Introduction ............1 Product warranty and limits of responsibility ........... 1 Chapter 1. Safety Cautions ........5 Symbols displayed for each item ............5 Chapter 2. Summary..........8 2.1 Features ................8 2.2 Components ................ 11 2.3 Name and Function of Each Part..........11 2.3.1 Front panel ................
  • Page 5 SVR-1650E/1640E/1640A/950EUser Manual 4.5.2 Event search ................. 40 4.5.3 Log search................41 4.6 Recording file playback .............41 4.6.1 Jog dial / shuttle ring............... 42 4.7 Live / Playback screen conversion ..........42 4.8 Digital zoom ................44 4.9 Copy .................44 4.9.1 SLiM Player ................46 4.10 PTZ ................48...
  • Page 6 5.8.4 TEXT ................. 83 5.9 Communication setup .............. 84 5.9.1 NETWORK ................84 5.9.2 RS-232................. 86 5.9.3 RS-422/485 ................87 5.9.4 E-MAIL ................88 5.10 System setup............... 89 5.10.1 System ................89 5.10.2 HDD................. 92 5.10.3 Password ................93 5.10.4 Date setup................95 5.10.5 PTZ ..................

  • Page 7: Chapter 1. Safety Cautions

    Symbols displayed for each item Warning Refers to information users need to know in order to prevent serious injury or death. Caution Provides information users need to know in order to prevent minor injury or product damage. Before installation Verify the supplied voltage (AC100V~AC240V) before connecting the power supply. Make sure the power supply is off before installation.
  • Page 8 Do not apply excessive force when pulling on the power cord. Damaging the cord may cause an electric shock or fire. Random replacement of built-in battery by other types of batteries may cause explosion. The battery shall be replaced by the same battery. The used batteries shall be disposed carefully because they can cause environment pollutions.
  • Page 9 This product should not be mixed with other commercial wastes for disposal. Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco...

  • Page 10: Chapter 2. Summary

    Product functions can be setup conveniently using the mouse and buttons on the front panel. Samsung SVR-1650E/1640E/1640A/950Eis a digital image recorder that can be used as security equipment in banks, apartments, and government and public offices. It is a stand-alone product with proven performance and stability.
  • Page 11 SVR-1650E/1640E/1640A/950E User Manual Video recording High image quality MPEG4 video recording is possible. Up to 480 frames(SVR-1650E)/120 frames(SVR- 1640E/1640A/950E) per second of recorded video can be stored and pre-event recording can be done for up to 5 seconds before an event occurs. In addition, privacy is protected by the COVERT (image hiding) function.
  • Page 12 Storage device A built-in hard disk drive is provided. User may also select to use DVD±RW, CD-RW and USB memory for backup. Standard storage: Built-in hard disk drive Various backup devices available: DVD±RW, DVD±R, CD-RW, CD-R and USB memory HDD Extension Unit (external extendable storage device) : SVS-5 (Sold separately as a designated device) Network Various networks including LAN, xDSL is supported.

  • Page 13: Components

    SVR-1650E/1640E/1640A/950E User Manual 2.2 Components DVR package contains the main body and the following accessories. Please verify whether all accessories are included at the time of purchase. If any accessory is missing, inquire at the point of purchase. 2.3 Name and Function of Each Part 2.3.1 Front panel...

  • Page 14: Display Section

    Backup(Copy) section Category Function 1. DVD-Multi : DVR for Used to backup recorded/stored images on DVD/CD media. backup Jog/shuttle section Category Function Menu setup values can be adjusted and STEP function can be controlled with JOG. SHUTTLE can be used for moving items 2.
  • Page 15 SVR-1650E/1640E/1640A/950E User Manual Function button section Category Function Used for movement in the upper direction. 11. ▲ Used for movement in the lower direction. 12. ▼ MENU Used for movement to the left 13. ◀ Used for movement to the right 14.

  • Page 16: Back Connector Terminals

    Socket for AC100V ~ AC240V power supply cord. SENSOR IN Input terminal for external alarm sensor. RELAY OUT Relay output terminal. SVR-1650E/1640E/1640A : Auxiliary port CONSOLE SVR-950E : Terminal for ATM/POS Terminal to connect expansion controller, speed dome camera, RS-485/422 SRX-100B connector.

  • Page 17: Remote Controller

    SVR-1650E/1640E/1640A/950E User Manual Refer to ‘Chapter 3. Installation method’ and ‘Chapter 4. Operation method’ for detailed description about setup and utilization. If you make a connection to ATM/POS or HDD Extension Unit, please refer to the manual. 2.3.3 Remote Controller...

  • Page 18: Product Specification

    1.0Vp–p Composite, 75Ω output Back : 2 terminals(BNC : composite), Monitor output 1 terminal(BNC : SPOT composite) Front : 1 terminal(RCA : composite) Loop(BNC) 16 CH(SVR-1650E/1640E/1640A) / 9CH(SVR-950E) output VGA output RGB output (PC monitor) PIP screen size: 240×160(Fixed on left top side)
  • Page 19 VGA output 15 pin VGA (PC monitor) Audio RCA input (4), RCA output (2 - including the front) 25 pin DSUB(2) Sensor input (SVR-1650E/1640E/1640A: 16, SVR-950E: 9), relay output(4) Dual RJ-45 RS-422/485(2) 9 pin DSUB RS-232C(1) USB port Front (2), back (1)
  • Page 20 Specification Max. no. of mounts Basic mount 1 (built-in) Hard disk drive type EIDE(ULTRA DMA-133) Min. speed 7200rpm Recommended product Seagate series, Maxtor series, Samsung Electronics The recommended models are as follows. Manufacturer HDD capacity Buffer Interface Seagate 250G PATA...

  • Page 21: Search And Playback

    SVR-1650E/1640E/1640A/950E User Manual Copy Item Specification Digital copy DVD±RW, DVD±R , CD-RW, CD-R and External USB memory DVD±RW, DVD±R, CD-RW and CD-R media may be used. Search and playback Item Specification Search by time : year, month, day, hour, minute, second...
  • Page 22 Accessories Item Specification Network viewer program CD User manual Quick guide manual Remote controller Mouse (Not included in SVR-950E) Supplied accessories Cable core RJ-45 cable (2 cable) Rack mount and screw D-Sub 25p Connector (2 ea) Power supply cable...

  • Page 23: Chapter 3. Installation Method

    3.1 Overall connection 3.1.1 Front connection method Connection organization diagram for DVR front side terminals are as follows. SVR-1650/1640E/1640A External DVD SVR-950E Mouse Speaker TV Monitor *Use only DVD+RW/CD-RW Media Memory stick...

  • Page 24: Back Connection Method

    3.1.2 Back connection method The organization chart for DVR and monitors, CCTV cameras and external devices is as follows. Camera 1~16 Main Monitor SPOT SVR-950E SVR-1650E Audio(Line Input) 1640E/1640A VGA Monitor Warning Speaker Sensor ATM/POS LAN/WAN SCC-3100A HDD Extension Unit...

  • Page 25: Detailed Connection

    SVR-1650E/1640E/1640A/950E User Manual 3.2 Detailed connection 3.2.1 Rack mount To mount the product, the enclosed rack must be mounted first. Mount sequence is as follows. The enclosed rack mount is mounted on the product. SVR-1650/1640E/1640A SVR-950E The product is mounted on the 19 inch rack.

  • Page 26: Video/Audio Connection

    3.2.2 Video/Audio connection Main Monitor 1. Camera 2. Monitor Spot Monitor Audio(Line input) VGA Monitor Speake 3. Voice SVR-1650/1640E/1640A SVR-950E 1. Camera Up to 16(SVR-950E: Up to 9) CCTV cameras can be connected to DVR. Connect the BNC terminal for each camera to the CAMERA IN terminal in the back of this product. If BNC terminal is only connected to CAMERA IN, a 75Ω...
  • Page 27 SVR-1650E/1640E/1640A/950E User Manual Image input from each camera is output simultaneously to the external device connected to the MONITOR OUT terminal in the back of the product. 2. Monitor To output screen information to the main monitor, connect the VGA terminal for monitor output in the back of the product and the monitor BNC terminal with a BNC cable.

  • Page 28: External Connector

    3.2.3 External connector SENSOR IN 1 2 3 4 1 2 3 4 CONSOLE RELAY OUT 2. Relay Out 6. LAN(Ethernet) 3. RS-422/485 1. Sensor In SATA Output 5. VGA Monitor 4. RS-232C SVR-1650/1640E/1640A SVR-950E If you make a connection to HDD Extension Unit, please refer to the manual.
  • Page 29 SVR-1650E/1640E/1640A/950E User Manual 1. Sensor input (SENSOR IN) This is an external sensor connection terminal used to input information from the connected sensors or devices to the product. Description Description SENSOR 1 SENSOR 14 SENSOR 2 SENSOR 15 SENSOR 3...
  • Page 30 2. Relay output (RELAY OUT) This is an alarm output terminal used to output alarms for sensor, motion detection, video loss and power OFF to external devices. Description Description Normal Open D_IO 0 Digital I/O Common D_IO 1 Digital I/O Normal Close D_IO 2 Digital I/O...
  • Page 31 SVR-1650E/1640E/1640A/950E User Manual 3. External control equipment (RS-422/485) This is a terminal for connecting external control equipment. The switch labeled TERM is used to turn ON/OFF terminating resistance for RS–422/485 communication equipment. PORT RS-422 RS-485 RX+ (+Data Receive) Data+ RX- (-Data Receive)
  • Page 32 PORT A : SCC-3100A terminal Controller Terminal DVR PORT A ( PORT 1) RS-485 RS-422 1 or 8 2 or 7 ※ RS-422/485 connection can be selected from the SW1 switch. To connect RS-485: SW1 switch 1, 2 are turned ON. To connect RS-422: SW1 switch 1, 2 are turned OFF...
  • Page 33 SVR-1650E/1640E/1640A/950E User Manual PORT B : SPD-2200 terminal Speed dome DVR PORT B terminal 9 or 16 10 or 15 ※ If GND is connected, a much sharper image quality can be seen. TERM2 switch 1, 2 must be set to ON.
  • Page 34 SPD-2500 terminal Speed dome terminal DVR PORT B 9 or 16 10 or 15 ※ If GND is connected, a much sharper image quality can be seen. TERM2 switch 1, 2 must be set to ON. SPD-2300/3000/3300 terminal DVR PORT B Speed dome terminal RS-485 RS-422...
  • Page 35 TxD(Data send) N/C(Not connected) N/C(Not connected) N/C(Not connected) GND(Ground) External devices ATM/POS may be connected and used. - SVR-1650E/1640E/1640A : RS-232C - SVR-950E : CONSOLE. 5. Monitor output (VGA) This is an output connector for the VGA monitor. Description Description N/C(Not connected) Red signal(75Ω, 0.7Vp–p)

  • Page 36: Chapter 4. Operation Method

    4.1 Preoperation inspection items Make sure you verify the input power source voltage before turning on the power. If product used for NTSC is used with a PAL device, it may malfunction initially(recognize as a NTSC device). In this case, if power is turned OFF and ON again, it will recognize the PAL device properly.

  • Page 37: Function Screen Display

    SVR-1650E/1640E/1640A/950E User Manual 4.3.1 FUNCTION screen display If Channel 1~16(SVR-950E: Channel 1~9) is setup as screen mode and FUNCTION button is pressed, icons for FUNCTION-LIVE will be activated. FUNCTION icon can be used to setup SPOT, PTZ and PIP. In the FUNCTION-PLAY screen, the following play screen will be displayed.

  • Page 38: Multi Screen Display

    4.3.3 Multi screen display If MULTI button is pressed, 16 channels are displayed as a 16 DIVISION screen (For SVR-950E, channel 9 is partitioned into 9 segments on the screen.). If MULTI button is pressed once again, a 4 DIVISION screen is displayed.

  • Page 39: Recording

    SVR-1650E/1640E/1640A/950E User Manual 4.4 Recording 4.4.1 General recording If REC button is pressed, red LED is turned ON, N is displayed in the upper right corner and video recording is started. If REC is pressed again, video recording is stopped.

  • Page 40: Search

    4.5 Search If SEARCH button is pressed, the following search menu is displayed. Video recorded items can be searched by time, by event and by date using the menu and played. Log file search is also possible. 4.5.1 Time search If [TIME] is selected after SEARCH button is pressed, images stored in the basic built-in HDD can be setup by ‘TIME’...

  • Page 41: Svr-1650E/1640E/1640A/950Euser Manual

    SVR-1650E/1640E/1640A/950E User Manual In case of ‘TIME’, recorded images are viewed by selected time period. SVR-1650E/1640E/1640A SVR-950E In case of ‘CALENDAR’, calendar helps to search recorded images conveniently through data and time table. After the date on the left calendar and the hour and channel on the right table are selected, minute can be selected.

  • Page 42: Event Search

    If [EVENT] is selected after SEARCH button is pressed, a screen for selecting the event to search for is displayed. User can search by event and play the result as needed. Channel : Select a channel for event search. SVR-1650E/1640E/1640A : CH1~16 SVR-950E : CH1~9 Event type : Event type can be filtered for all events or [SENSOR/V-LOSS/MD/TEXT].

  • Page 43: Log Search

    SVR-1650E/1640E/1640A/950E User Manual 4.5.3 Log search Log history can be searched to verify the time for video recording start and stop, power ON/OFF, system time change (CLOCK), menu setup change (SETUP). [LOG] only provides a list and does not play recordings.

  • Page 44: Jog Dial / Shuttle Ring

    4.6.1 Jog dial / shuttle ring Jog/Shuttl Shuttle ring: Used to increase/decrease play speed and to change play direction, to move between menus Jog dial: Used to search still images in paused state. 4.7 Live / Playback screen conversion If there is a video recording, press the PLAY/PAUSE button from the LIVE screen to get to the PLAY screen.
  • Page 45 SVR-1650E/1640E/1640A/950E User Manual < Image freeze and copy function while LIVE or playback mode.> (USB memory stick is necessary.) Images can be paused and saved to USB memory stick while LIVE or playback mode. The still image is saved as bitmap (*.bmp) file.

  • Page 46: Digital Zoom

    4.8 Digital zoom If FUNCTION button is pressed and digital zoom icon is clicked, zoom function can be used. To move in the expanded screen, use the up/down/left/right buttons. D-ZOOM button operates in the single screen mode for channel 1~16 (SVR-950E: channel 1~9).
  • Page 47 SVR-1650E/1640E/1640A/950E User Manual After selecting a storage medium, select the channel for which COPY will be carried out and the image information [START-REC TIME /END-REC TIME]. Press ‘FORMAT’ to format media and then press ‘COPY’ to copy recorded images to the media from HDD.

  • Page 48: Slim Player

    4.9.1 SLiM Player SLIM Player is a program that is automatically saved when making a backup copy of a movie file on a CD or USB using the copy function of the DVR. You may replay a backup copy of the data on a PC without installing a separate Player program on a PC.
  • Page 49 SVR-1650E/1640E/1640A/950E User Manual Button Name Function Channel Info Display the information of the channel that is saved. Display the information on the recording time for the file being Time Info played. Control of playback speed Adjust the playing speed.(1x/2x/4x/8x) These are functions related to ‘play’.

  • Page 50: Ptz

    4.10 PTZ From the selected LIVE entire screen SINGLE mode, press the PTZ button to adjust camera Pan, Tilt, Zoom or view the screen in preset (PTZ value for camera setup in advance) state. There are no PTZ related buttons on the remote controller. 4.10.1 PTZ adjustment After pressing the PTZ button from the single screen, put the cursor on the button and...

  • Page 51: Preset Setup

    SVR-1650E/1640E/1640A/950E User Manual 4.10.2 Preset setup Select a desired channel from channel 1~16(SVR-950E: channel 1~9) in the LIVE screen and select the entire screen mode. Press PTZ to select the PTZ mode (PTZ is displayed in the upper right corner of the screen.) Press (PAN) / (TILT) / (ZOOM) and use the mouse and jog/shuttle to take the screen to the desired PTZ state.

  • Page 52: Quick Setup

    4.11 Quick setup Collection of frequently used menu items that can be used to modify setup values quickly. It can move to the [Quick Setup] screen by pressing the MENU button on the front of the product. RECORDE MODE : Manual & Event or Schedul & Event setup item. EVENT CHECK : Can be set to OFF, ALWAYS or TIMEZONE.

  • Page 53: Pip

    SVR-1650E/1640E/1640A/950E User Manual 4.12 PIP If FUNCTION button is pressed in entire screen mode, the FUNCTION screen is displayed. If the PIP icon is pressed from here, another screen can be viewed together. SVR-1650E/1640E/1640A SVR-950E Live PIP from Live screen 1.

  • Page 54: System Information

    If FUNCTION button is pressed, the FUNCTION screen is displayed. If the STATUS icon is clicked from here, system related information is displayed as shown below. SVR-1650E SVR1640E/1640A SVR-950E TOTAL RECORDABLE TIME : The time duration that can be allocated to the entire portion HDD for a given amount of image data received by the DVR in one minute.

  • Page 55: Spot

    SVR-1650E/1640E/1640A/950E User Manual 4.14 SPOT If FUNCTION button is pressed, the FUNCTION screen is displayed. If the SPOT icon is clicked from here, the following screen is displayed. If SPOT monitor is used, it can be used like the MULTI function for the main monitor.

  • Page 56: Chapter 5. Setup Method

    5.1 Menu organization Menu organization for DVR is as follows. System Setup Copy Screen Setup Event Setup Quick Setup Record Setup Communication Search Exit...
  • Page 57 SVR-1650E/1640E/1640A/950EUser Manual Menu organization is as follows. Refer to‘5.5 ~ 5.10’ for details. Exit Screen Setup SAVE SCREEN DO NOT SAVE SEQUENCING DISPLAY COVERT Copy SPOT COPY STATUS Record S Search RECORD PROGRAM TIME EVENT Event Setup EVENT System Setup...

  • Page 58: Initial Value Setup

    [System Setup]-[System] in the menu and set [DEFAULT] to [Yes]. Screen setup Initial value Main menu Lower menu SVR-1650E/1640E/1640A SVR-950E CH NUMBER CH1~16 CH1~9 TITLE...
  • Page 59 POST EVENT DURATION 10 sec REPEAT RECORD MODE WARNING LEVEL AUDIO IMAGE SIZE 704 x 240(NTSC) SVR-1650E : M=5, Q=H, E=10, Q=S SVR-1640E/1640A:M=1, Q=H, E=3, Q=S PROGRAM PROGRAM K SVR-950E : M=2, Q=H, E=3, Q=S (Refer to ‘5.7.2 Record program’ for...
  • Page 60 Record program (SVR-1650E) NTSC Order SIZE MANUAL QUALITY EVENT QUALITY SIZE MANUAL QUALITY EVENT QUALITY 704 X 480 704 X 576 704 X 480 704 X 576 704 X 480 704 X 576 704 X 480 704 X 576 704 X 480...
  • Page 61 SVR-1650E/1640E/1640A/950EUser Manual Record program (SVR-1640E/1640A) NTSC Order SIZE MANUAL QUALITY EVENT QUALITY SIZE MANUAL QUALITY EVENT QUALITY 704 X 480 704 X 576 704 X 480 704 X 576 704 X 480 704 X 576 704 X 240 704 X 288...
  • Page 62 Record program (SVR-950E) NTSC Order SIZE MANUAL QUALITY EVENT QUALITY SIZE MANUAL QUALITY EVENT QUALITY 704 X 480 704 X 576 704 X 480 704 X 576 704 X 480 704 X 576 704 X 240 704 X 288 704 X 240 704 X 288 704 X 240 704 X 288...
  • Page 63 SVR-1650E/1640E/1640A/950EUser Manual Event setup Main menu Lower menu Initial value CHECK MESSAGE BUZZER SWITCH TO EVENT SCREEN EVENT DISPLAY MIN TIME 3 sec EVENT EVENT DISPLAY MAX TIME 5 sec TEXT MONITORING SENSOR TYPE - CH1~16(SVR-1650E/1640E/1640A) - CH1~9(SVR-950E) MD CHANNEL...
  • Page 64 LOAD FIRMWARE DOWNLOAD REMOTE SETUP ENABLE SYSTEM DVR ALIAS REMOTE ID SINGLE REMOTE LIVE MODE (Function exclusively for SVR-1650E/1640A) CH 1 ~ 16 (NTSC) CH 1 ~ 16 (PAL) INTERNAL HDD HDD Format HDD1 EXTERNAL HDD HDD Format PORT1-HDD1 USER AUTHORIZATION...
  • Page 65 SVR-1650E/1640E/1640A/950EUser Manual Copy Main menu Lower menu Initial value COPY 1.NONE(GSA-H55N) 2.NONE COPY 3.NONE 4.NONE STATUS NO DATA Exit Main menu Lower menu Initial value SAVE DO NOT SAVE...

  • Page 66: Operation Description

    5.3 Operation description DVR can be setup easily using the USB mouse. Operation using the mouse Mouse Wheel Left Button Right Button Left button : It is used to select menu or check the setting value. Used to selelet menu, verify setup values and cancel the popup menu.of main menu.

  • Page 67: Function Menu

    SVR-1650E/1640E/1640A/950EUser Manual 5.4 FUNCTION menu 5.4.1 LIVE/PLAY mode For SINGLE mode setup in the LIVE screen, all LIVE functions are activated and displayed. For MULTI mode setup in the LIVE screen, D-ZOOM, PIP, PTZ are inactivated and cannot be setup.
  • Page 68 STATUS If STATUS button is clicked, information related to the system is displayed. SYSTEM INFORMATION 1 : Displays video recording program status information. SYSTEM INFORMATION 2 : Displays VERSION, IP ADDRESS, MAC ADDRESS and AUDIO information. SVR-1650E SVR1640E/1640A SVR-950E...
  • Page 69 SVR-1650E/1640E/1640A/950EUser Manual SVR-1650E/1640E/1640A SVR-950E SPOT If SPOT button is clicked, the SPOT setup screen is displayed. SPOT monitor can be used to view SINGLE or divided screen. DISPLAY If MULTI button is clicked, the MULTI setup screen is displayed. Main monitor can be used for live...
  • Page 70 AUTO If AUTO button is pressed, each channel and 4 DIVISION screen, 9 DIVISION screen and 16 DIVISION screen(SVR-950E: 4 DIVISION screen, 9 DIVISION screen) are automatically converted and displayed in time interval which was setup in [Screen Setup]–[SEQUENCING] in the conversion menu. In automatic screen conversion state, input from other buttons is not recognized.

  • Page 71: Menu Screen Description

    SVR-1650E/1640E/1640A/950EUser Manual 5.5 Menu screen description Organization of the menu screen is as follows. Main menu Sub menu Setup items Usage method Description of all menu screen setup value selection and modification is based on the assumption that the mouse is used.

  • Page 72: Screen Setup

    5.6 Screen setup If [Screen Setup] tab is clicked, lower menu related to [Screen Setup] is displayed as shown below. In screen setup, [SCREEN], [SEQUENCING], [DISPLAY], [COVERT], [SPOT] related setup values may be modified. 5.6.1 Screen Select a channel among the 16 available(SVR-950E: select a channel among the 9 available) and setup the channel name, brightness and contrast for that channel.

  • Page 73: Sequencing

    SVR-1650E/1640E/1640A/950EUser Manual VIDEO OUTPUT SELECT Enhanced COMPOSITE: May be selected when current mode is 'Enhanced VGA'. Both COMPOSITE output and VGA output is possible and values from -9 to 9 may be setup for ‘CONTRAST'. In 'Enhanced COMPOSITE', image quality for VGA output may degrade slightly.
  • Page 74 User defined screen - 4DIV C : SVR-950E 4DIV E : SVR-1650E/1640E/1640A It sets the user defined screen with 4-partitioned segments for 4 channels. - 9DIV B : It sets the user defined screen with 9-partitioned segments for 9 channels.
  • Page 75 SVR-1650E/1640E/1640A/950EUser Manual VIDEO LOSS SKIP [ON/OFF] : If setup as[ON], channels without image signals will be skipped automatically and only channels with image signals will be displayed in the screen.

  • Page 76: Display

    5.6.3 Display Information to be displayed on the live screen can be selected. DATE & TIME [ON/OFF] : If setup as [ON], current time is displayed in the live screen. HDD FREE SPACE [ON/OFF] : If setup as [ON], remaining capacity for the mounted hard disk drive is displayed.

  • Page 77: Covert

    SVR-1650E/1640E/1640A/950EUser Manual 5.6.4 Covert One channel among the 16 available(SVR-950E: among the 9channel) may be selected to setup the image hiding function. LIVE COVERT : If image hiding is turned ON, image is not shown for live screen as in V- LOSS and privacy can be protected.

  • Page 78: Record Setup

    5.7 Record setup If the mouse is moved over the [Record Setup] tab, a video recording related lower menu is displayed as shown below. If ‘ENTER’ key, located in the front of DVR, is pressed or if lower level menu is selected with the mouse, detailed items may be viewed.
  • Page 79 SVR-1650E/1640E/1640A/950EUser Manual WARNING LEVEL : If available space in the hard disk drive reaches the setup percentage, a warning message will be displayed to the user. Possible setup range is 1 ∼ 10% and 5∼10% is generally used. AUDIO : Select whether to store voice information.

  • Page 80: Record Program

    5.7.2 Record program SVR-1650E SVR-1640E/1640A In the SVR-1650E series, it is possible to assign a different resolution to each group. Each group is comprised of the four channels as follows. Group1: Channel1~4, Group2: Channel5~8, Group3: Channel9~12, Group4: Channel13~16 SVR-950E [PROGRAM] can be used to adjust the FRAME RATE, QUALITY and RESOLUTION to setup video recording for M&E and S&E.

  • Page 81: Recording Time Table

    SVR-1650E/1640E/1640A/950EUser Manual 5.7.3 Recording time table NTSC (Installed Hard disk : 250G) FRAME, Recording capacity by picture quality SVR-1650E 704 x 480 SUPER HIGH 1 Day 5 Hour 1 Day 16 Hour 2 Day 14 Hour 7 Day 15 Hour...
  • Page 82 PAL (Installed Hard disk : 250G) SVR-1650E 704 x 480 SUPER HIGH 1 Day 5 Hour 1 Day 13 Hour 2 Day 10 Hour 7 Day 20 Hour 2 Day 0 Hour 2 Day 18 Hour 4 Day 9 Hour...

  • Page 83: Event Setup

    SVR-1650E/1640E/1640A/950EUser Manual 5.8 Event setup For event video recording, a lower menu like the one shown below can be setup. If ‘ENTER’ key, located in the front of DVR, is pressed or if lower level menu is selected with the mouse, detailed items may be viewed.

  • Page 84: Motion Detection

    5.8.2 Motion detection Analyze the image input by the camera to detect motion. If any change is detected, it is counted as an event. MD CHANNER : Setup the channel for which motion detection will be carried out. MD SETUP : Setup whether to detect motion for channel that will be used for motion detection.

  • Page 85: Relay

    SVR-1650E/1640E/1640A/950EUser Manual 5.8.3 Relay When an event occurs, you can generate RELAY during sensor, movement detection, lost images, power alarm and record off using the output device connected to the RELAY OUT terminal on the back side of the product.

  • Page 86: Communication Setup

    5.9 Communication setup Setup items needed to connect a computer to a network. Communication setup screen is as shown below. If ‘ENTER’ key, located in the front of DVR, is pressed or if lower level menu is selected with the mouse, detailed items may be viewed.
  • Page 87 SVR-1650E/1640E/1640A/950EUser Manual SUBNET MASK : Input the [SUBNET MASK] address obtained from the internet service company of the user. GATEWAY : Input the [GATEWAY] address obtained from the internet service company of the user. DNS : Input the [DNS] address obtained from the internet service company of the user.

  • Page 88: Rs-232

    If using network by connecting the DVR body with IP router, you should designate a port for DVR from the Setup Menu of the IP router. The main body of SVR-1650E/1640E/1640A/950Euses 2 ports for TCP communication. In addition, it uses DHCP function supported by IP router. Even if dynamically allocating IP address to the main body of DVR for use, you should designate a port for IP, which DVR receives from the Setup Menu of IP router.

  • Page 89: Rs-422/485

    SVR-1650E/1640E/1640A/950EUser Manual 5.9.3 RS-422/485 Setup items needed to connect the product with surveillance equipment like camera and CCTV. SYSTEM ID : Setup ID for DVR main body when connecting the product with equipment like a controller. PORT TYPE: Setup type of port to use.

  • Page 90: E-Mail

    5.9.4 E-MAIL The manager can verify details related to the generated event through the email. E-MAIL CHECK : If turned [ON], E-MAIL notice function is activated. .… : Setup the E-MAIL address to receive a transmission if an event occurs. Ex) to : user@yahoo.com SMTP SERVER : This is a standard protocal for transmitting e-mail and used to prevent e-mail from spam mail.

  • Page 91: System Setup

    SVR-1650E/1640E/1640A/950EUser Manual 5.10 System setup System setup screen is as shown below. If ‘ENTER’ key, located in the front of DVR, is pressed or if lower level menu is selected with the mouse, detailed items may be viewed. 5.10.1 System LANGUAGE : Select a language for the menu screen.
  • Page 92 LOAD: Call the setup file stored in the USB Memory Stick and change the DVR setup value. SAVE: Store the DVR setup value in the USB Memory Stick This function is not compatible between SVR-1650E, SVR-1640E/1640A and SVR-950E. It may not be compatible with other firmware versions.
  • Page 93 In auto mode, the network transmit data is regularly monitored and when the amount that is transferred drops, it automatically reduces the bitrate to compute the optimal transmission conditions. (This mode is supported in only SVR-1650E/1640A.) REMOTE SETUP[ON/OFF] : Used to determine remote setup mode. DVR ALIAS : Used to identify network name.

  • Page 94: Hdd

    5.10.2 HDD ‘HDD’ setups information for the mounted hard disk drive. Basic information related to HDD is displayed on the screen. Information for up to 4 hard disk drives can be viewed. INTERNAL HDD : You may view the information on the HDD included in the DVR. HDD FORMAT : Select whether to format the built-in, fixed HDD.

  • Page 95: Password

    SVR-1650E/1640E/1640A/950EUser Manual 5.10.3 Password Setup password for user and manager to give authorization needed to use the product and to modify the setup. If ‘ENTER’ key, located in the front of DVR, is pressed or if lower level menu is selected with the mouse, detailed items may be viewed.
  • Page 96 System user authorization – ADMIN: All system setup is allowed. – USER1~USER10: Only allowed by authority. Factory default password ADMIN 11111111 USER1 22222222 USER2 33333333 USER3 44444444 USER4 55555555 USER5 66666666 USER6 77777777 USER7 88888888 USER8 99999999 USER9 12344321 USER10 43211234 - Modified password should be saved on MENU to affect after rebooting.

  • Page 97: Date Setup

    SVR-1650E/1640E/1640A/950EUser Manual 5.10.4 Date setup It is used to setup date and time for the product. When setup is completed and stored, it is displayed on the live screen. TIME SETUP : Setup the date, time and deffernce from GMT. From the dialog box shown above, use the mouse wheel or the buttons on the front of the product to modify the setup value.

  • Page 98: Ptz

    Please setup accurately for the corresponding model. Models that can be used. – Samsung : SPD(SPD-2200, 2300, 2500, 3000, 3300), SRX-100B – Pelco(D) : Speed dome using Pelco ‘D’ protocol – Panasonic : WV-CS854 – SCC : SCC-641/643...

  • Page 99: Video Recording Search

    SVR-1650E/1640E/1640A/950EUser Manual 5.11 Video recording search For video recording search, time, event and log file retrieval functions are provided. If ‘ENTER’ key, located in the front of DVR, is pressed or if lower level menu is selected with the mouse, detailed items may be viewed.

  • Page 100: Event Search

    In the CALENDAR table, green section means event recording and Yellow section means normal recording. 5.11.2 Event search Retrieval by event types including loss video, sensor and motion detection is possible. Items selected during event search can be played back. If ESC key is pressed during playback, returns to the event search window.

  • Page 101: Log Search

    SVR-1650E/1640E/1640A/950EUser Manual 5.11.3 Log search Log history for generated events can be verified. When the setup is modified, you can verify submenu information and authority by press [ENTER] button. < LOG file copy function> (USB memory stick is necessary.) Log file is recorded by DVR can be saved to USB memory stick.

  • Page 102: Copy

    5.12 Copy If a storage medium is connected, video recorded images may be copied to the storage devices. If ‘ENTER’ key, located in the front of DVR, is pressed or if lower level menu is selected with the mouse, detailed items may be viewed.

  • Page 103: Exit

    SVR-1650E/1640E/1640A/950EUser Manual 5.13 Exit Modified setup values are applied when they are verified after the Save button is pressed. As shown in the screen below, when setup has been modified and [SAVE] is pressed, the setup functions are applied. The setup functions can be cancelled by pressing “Do NOT SAVE”.

  • Page 104: Chapter 6. Trobleshooting

    DVR is an intricate mechanical device and it can malfunction. For such cases, take the following measures. Product is not turned ON when stand-by switch is pressed. Verify if the power supply cable is connected properly. Screen is not displayed when product is turned ON. Verify if video output terminal is properly connected to the CCTV monitor.
  • Page 105 SVR-1650E/1640E/1640A/950EUser Manual If the power cable connector has been damaged If rain or water has entered the product If a liquid has been spilled on the product or if a foreign substance has entered the product If the product does not operate as described in this manual...

  • Page 106: Product Specifications

    Product Specifications NTSC Model SVR-1640E SVR-1650E SVR-950E /1640A Power Source AC 100V~240V,(50/60Hz), Max. 2A Power Consumption Max. 75W(1 HDD) Video Input 16Ch Monitor A 2 BNC, 1 VGA, 1 RCA(Front) Video Output Monitor B 1 BNC(Single/Multi) Compression MPEG-4 Speed 480fps...
  • Page 107 Model SVR-1640E SVR-1650E SVR-950E /1640A Power Source AC 100V~240V,(50/60Hz), Max. 2A Power Consumption Max. 75W(1 HDD) Video Input 16Ch Monitor A 2 BNC, 1 VGA, 1 RCA(Front) Video Output Monitor B 1 BNC(Single/Multi) Compression MPEG-4 Speed 400fps 225fps Display Resolution...
  • Page 108 Dimensions...
