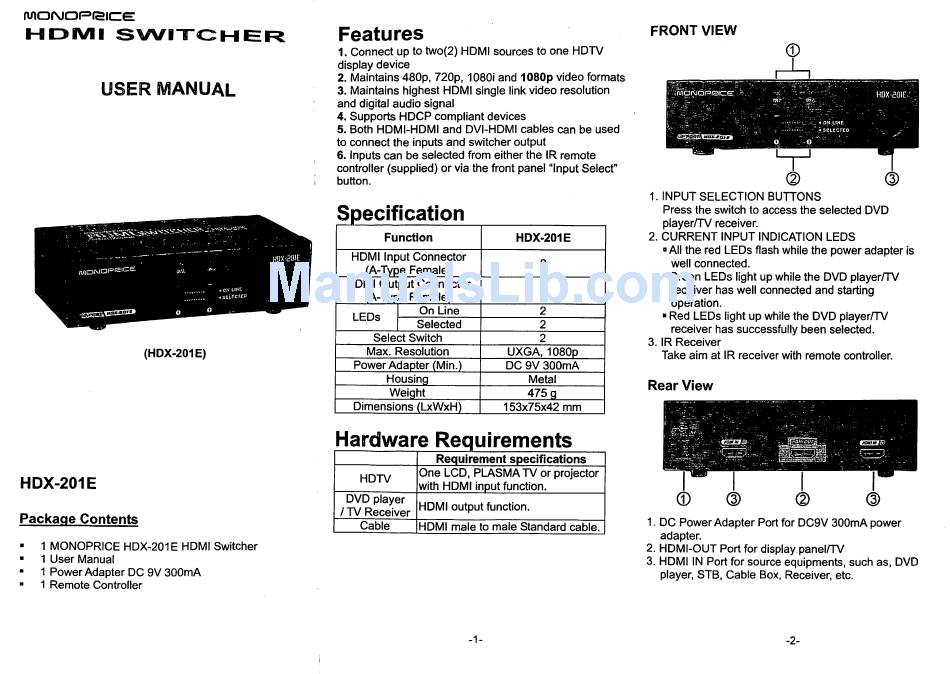

Monoprice HDX-201E User Manual

MDIV1I SWITCHER
USER MANUAL
(HDX-201 E)
HDX-201E
Package Contents
■ 1 MONOPRICE HDX-201E HDMI Switcher
■ 1 User Manual
• 1 Power Adapter DC 9V 300mA
■ 1 Remote Controller
Features
1. Connect up to two(2) HDMI sources to one HDTV
display device
2. Maintains 480p, 720p, 1080i and 1080p video formats
3. Maintains highest HDMI single link video resolution
and digital audio signal
4. Supports HDCP compliant devices
5. Both HDMI-HDMI and DVI-HDMI cables can be used
to connect the inputs and switcher output
6. Inputs can be selected from either the IR remote
controller (supplied) or via the front panel "Input Select"
button.

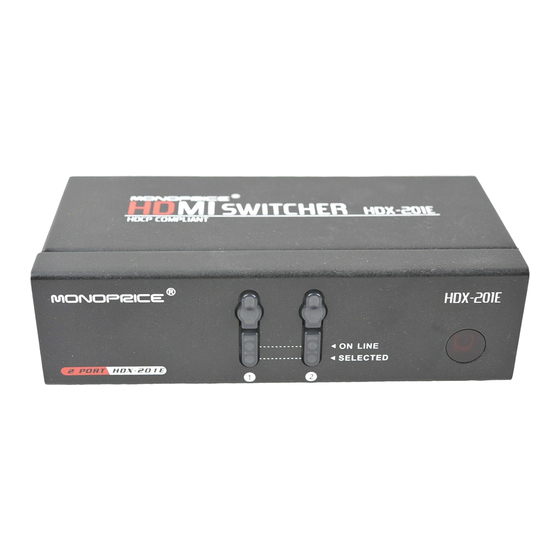

FRONT VIEW
Specification
Hardware Requirements
1. INPUT SELECTION BUTTONS
Press the switch to access the selected DVD
player/TV receiver.
2. CURRENT INPUT INDICATION LEDS
Q All the red LEDs flash while the power adapter is
well connected.
«Green LEDs light up while the DVD player/TV
receiver has well connected and starting
operation.
■ Red LEDs light up while the DVD player/TV
receiver has successfully been selected.
3. IR Receiver
Take aim at IR receiver with remote controller.
Rear View
1. DC Power Adapter Port for DC9V 300mA power
adapter.
2. HDMI-OUT Port for display panel/TV
3. HDMI IN Port for source equipments, such as, DVD
player, STBt Cable Box, Receiver, etc.
