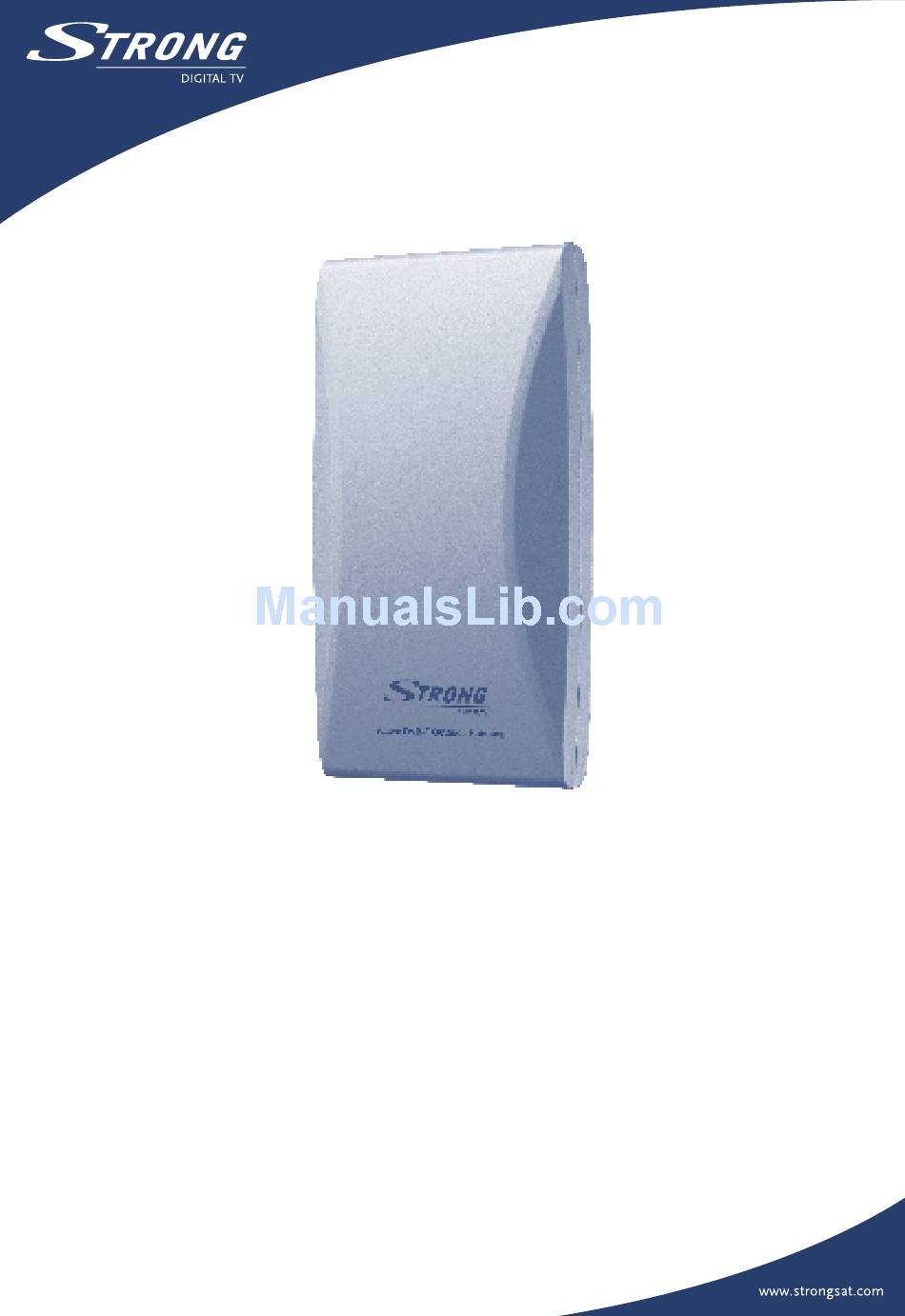

- Page 1 Active Outdoor Antenna DVB-T SRT ANT 15 User Manual...
-
Page 2: Table Of Contents
PART 1 Engli Table of Contents Introduction Package contents Safety notes Connecting the antenna Installation of the antenna... -
Page 3: Introduction
Engli 1.0 Introduction Thank you for purchasing the Strong SRT ANT 15 DVB-T Antenna. This antenna has been specially designed to receive digital terrestrial signals. It can be connected to any Digital Terrestrial Receiver (DVB-T), and is specially designed for Outdoor use. The antenna housing is UV protected and weather-proof sealed. -
Page 4: Package Contents
PART 1 Engli 2.0 Package contents 1. Active DVB-T Outdoor Antenna. 2. Multidirectional base. 3. Wall mounting kit. 4. Pole Mounting kit. 5. Coaxial Cable. 6. Power Injector. 7. AC Adaptor. 8. IEC male to IEC female Coaxial Cable. Main unit Multi-directional base Wall Mounting kit Pole Mounting kit... -
Page 5: Safety Notes
PART 1 Engli 3.0 Safety notes Use only originally supplied accessories Before you make any connections: disconnect your equipment from the 230 V mains power to avoid electrical shocks during installation Short Circuit in the coaxial cable MAY permanently damage your Digital Receiver Never use AC Adaptors with incorrect specifications. - Page 6 PART 1 Engli Step 3: Depending on how the signals are broadcasted (Horizontal or Vertical) you will have to mount your antenna in the Horizontal or Vertical position for best performance. (Vertical-Broadcast) antenna mounted V (Horizontal-Broadcast) antenna mounted H Step 4: Your antenna needs 5 V power to work properly. Check in the menu or user manual of your terrestrial receiver to see if it supports the needed 5 V power.
- Page 7 PART 1 Engli 3. Once you are sure that your receiver supports 5 V antenna power, switch off your receiver and disconnect it from the 230 V mains power. 4. Take the supplied “long” coaxial cable and connect the end with the “F connector” (screw type connector) to the antenna.
- Page 8 PART 1 Engli If your receiver does not support 5 V antenna power, then please follow the next steps: B. To power the antenna with external power adaptor: 1. Switch OFF your receiver and disconnect it from the 230 V mains power. 2.
-
Page 9: Installation Of The Antenna
Note: It is recommended NOT to place the antenna near to: Devices that are strong source of radiation or interference such as DECT and GSM telephones, Transmitters, Microwaves, etc. Devices with high power consumption such as Electrical Heater, Air conditioner, Hairdryers, etc. - Page 10 PART 1 Engli Installation on the wall: Take the multi directional base and hold it to the position on the wall Mark the 4 holes with a pencil Drill 4 holes diameter 5,8 mm (make sure you are in a secured position and wear sufficient protective clothing while drilling Insert the 4 plastic plugs into the drilled holes Hold the multi directional base on it’s position...
- Page 11 PART 1 Engli Installation on a metal pole, or on the balcony: Take a metallic pole and make sure it is properly fixed and stable enough to carry the antenna Take the pole mounting kit Hook the 2 U bolts on the pole (or on the metal parts of the balcony) Take the multi-directional base and place it over the bolts Use the 4 wing nuts to fix them...
- Page 12 Environmental Issues Environmental Issues Strong is committed to reducing the impact of its products on the environment. To maximise the benefits of our design enhancements, your co-operation is required. Electronic product recycling Packaging Do not dispose of this product with...
