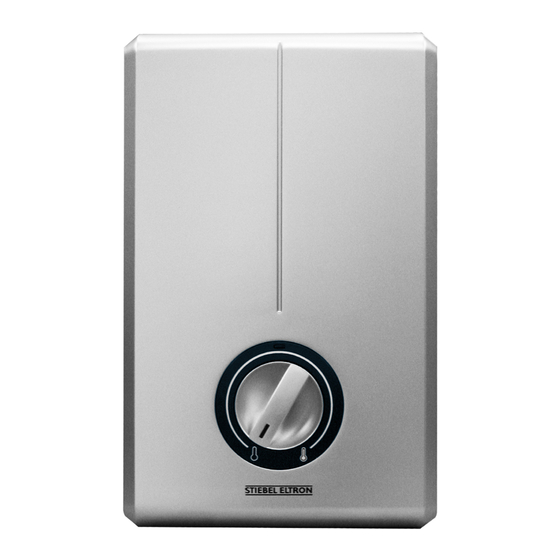

- Page 1 6 XG / 8 XG English Instantaneous water heater - Operation and installation instructions This water heater must be installed (water and electrical installation), commissioned and serviced by approved service technicians in accordance with these instructions.
-
Page 2: General Information
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. STIEBEL ELTRON... -
Page 3: Table Of Contents
1.9 Installation location ................................9 1.10 Care and maintenance ..............................9 2. Guarantee ....................................10 3. Fault elimination for user ..............................10 4. Installation Instruction ............................... 11 4.1 Components of the unit ..............................11 4.2 Installing the unit ................................14 STIEBEL ELTRON... -
Page 4: Operation Instruction
1. Operation Instruction 1.1 Description of the unit. Warning Injury The STIEBEL ELTRON DHC..XG is a slim, The appliance may be used by pressurized instantaneous water children aged 8 and up and persons heater. The DHC...XG heats the water with reduced physical, sensory or mental... -
Page 5: Description Of The Unit (External)
The water heater is to be installed vertically on a wall (water connection downwards). STIEBEL ELTRON... -
Page 6: Earth Leakage Circuit Breaker (Elcb)
ELCB one time per month How to test : When the ELCB test button (F) is pressed the ELCB Reset (E) Button will drop. When the reset button (E) is pressed the unit will be ready to operate again. Push Fig 2 STIEBEL ELTRON... -
Page 7: First Operation
Warning ! Open hot water faucet for a continuous and all air is purged from water pipes. The units plastic cover must be installed before the circuit breaker is turned on. STIEBEL ELTRON... -
Page 8: Technical Data
7.1-29.6 9.5-39.6 Safety device ELCB ELCB ELCB Note: The cable sizes can only be a guiding value. Always abide by the corresponding local standards, laws and regulations. Stiebel Eltron Asia Ltd. cannot be held liable for any damages. STIEBEL ELTRON... -
Page 9: Regulations And Provisions
• Connecting wires in wrong polarity mains. (L,N) causes an abnormal condition which may lead to electric leaking, burning, etc. • Before wiring, please check polarity (L,N) with voltage range of a testis or STIEBEL ELTRON * (not included) -
Page 10: Guarantee
No hot water despite water volume required for the unit to turn it on has not been reached. - Turn knob to the right - Heating setting too (max. position) - ELCB activated. - Press the ELCB Reset button. STIEBEL ELTRON... -
Page 11: Installation Instruction
5. Cold water connection 14. ELCB test button 15. Power Light 7. Cable entry with seal 16. Connector to PCB Control (Cover) 17. PCB Cover 8. Terminal block for earth wire 9. ELCB Description of the unit (Internal) Fig 3 STIEBEL ELTRON... - Page 12 4. Installation Instruction Installation Location Example Fig 4 Dimension 216 mm. 73 mm. 100 mm. Fig 5 STIEBEL ELTRON...
- Page 13 4. Installation Instruction Wall Mounting Cable Fig 6 Fig 7 Wiring diagram A - Heating Element B - XG-PC Front PCB C - Electronic control set D - Control Triac set E - Thermal Cut-Out F - ELCB Fig 8 STIEBEL ELTRON...
-
Page 14: Installing The Unit
- Remove the plug connecting the the water heater cover of the unit. Fig 10 Fig 12 - Insert the cable through the rubber - Open the cover of the unit. seal at the rear of the unit. Please the mains. STIEBEL ELTRON... - Page 15 Earth wire L wire Fig 14 Fig 16 - See recommended cable size in - Insert the Earth wire to the terminal block for earth wire technical data table STIEBEL ELTRON...
- Page 16 4. Installation Instruction Fig 17 Fig 19 - Straighten the unit and tighten the - Close the casing screws. Fig 18 Fig 20 - Connect the electrical supply into the - Tighten the screws. PCB control. STIEBEL ELTRON...
- Page 17 4. Installation Instruction Fig 21 Fig 23 - Fit the cold water pipe - Turn the rotary temperature control Fig 22 - Fit the hot water pipe STIEBEL ELTRON...
- Page 18 Part no. 7901-304852 Part name : Operating instruction DHC 6,8 XG En-Th Rev.01 Product code : DHC 4 XG (STE) : 234124 / DHC 6 XG (STE) : 233226 / DHC 8 XG (STE) : 233227 Country of origin : Thailand...
