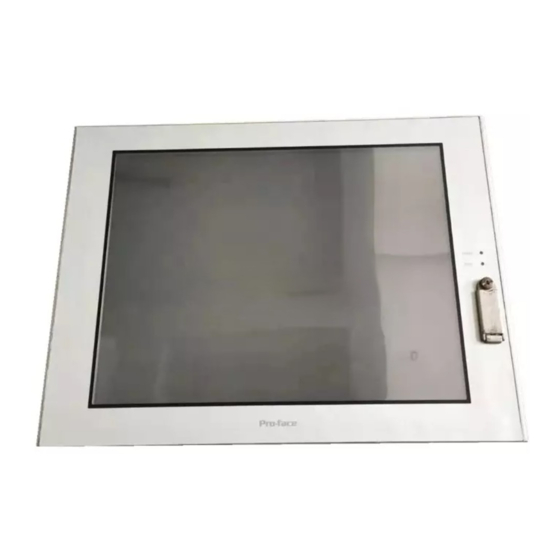

Pro-face PS-3710A Series Hardware Manual

Hide thumbs Also See for PS-3710A Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Hardware Manual
36$ 6HULHV
+DUGZDUH 0DQXDO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-3710A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-face PS-3710A Series

Summary of Contents for Pro-face PS-3710A Series

  • Page 1 36$ 6HULHV +DUGZDUH 0DQXDO...

  • Page 2: Preface

    Preface Thank you for purchasing Pro-face’s PS-3710A Series (Hereafter referred to as the “PS-A unit”). Before operating your PS-A unit, be sure to read this manual to familiarize yourself with the PS-A unit’s operation procedures and features. NOTICE Copying this manual’s contents, either in whole or in part, is prohibited without the express permission of Digital Electronics Corporation, Japan.

  • Page 3: Essential Safety Precautions

    Essential Safety Precautions All safety-related procedures stated in this document must be followed to operate the PS-A correctly and safely. Be sure to read this and any related documents thoroughly to understand the correct operation and functions of the PS-A unit. Safety Icons Throughout this manual, these icons provide essential safety information for PS-A operation procedures requiring special attention.
  • Page 4 The PS-A uses a lithium battery for backing up its internal clock data and the battery may explode if it is replaced incorrectly. When replacement is required, use a Pro-face-designated replacement product. SEE “4.6 Replacing the Internal Battery” (page 4-10)
  • Page 5 Installation Be sure all cable connectors are securely attached to the PS-A unit. A loose connection may cause incorrect input or output signals. Wiring Be sure to ground the PS-A unit’s FG wire separately from other equipment FG lines. Also, be sure to use a grounding resistance of 100Ω...
  • Page 6 Do not operate or store the PS-A in locations where it can be exposed to direct sunlight, high temperatures, excessive dust, moisture or vibration. Do not operate or store the PS-A where chemicals evaporate, or where chemicals are present in the air. Corrosive chemicals: Acids, alkalines, liquids containing salt Flammable chemicals: Organic Solvents Do not use paint thinner or organic solvents to remove dirt or oil from the PS-A unit’s surface.

  • Page 7: Information Symbols

    • Installation Guides for various optional items • PS-3710A specifications may change when optional items are used. Check the optional item installation guides’ specifications for variances, if any. The manuals can be downloaded from Pro-face Home Page. “Otasuke Pro!” “Otasuke Pro!” URL http://www.pro-face.com/otasuke/...

  • Page 8: Package Contents

    Package Contents The following items are included in the PS-A unit’s package. Before using the PS-A, please check that all items listed here are present. Installation Gasket: 1 Installation Fasteners: 4 PS-A Unit: 1 • Installation Guide (Attached to the PS-A per set x2 unit) •...

  • Page 9: Installation Prerequisites For Standards

    Installation prerequisites for standards • UL listed products see [a] in the Industrial Control Equipment refer to UL508 “Product List“ Suitable for use in Class I, Division 2, Groups A, B, C, and D Hazardous refer to see [b] in the (classified) locations, or Non-Hazard- ANSI/ISA 12.12.01 “Product List“...
  • Page 10 <Compliance and Handling Cautions in Hazardous Locations> • Suitable for use in Class I, Division 2, Groups A, B, C, and D Hazardous Locations only. • WARNING: Explosion hazard - substitution of components may impair suitability for Class I, Division 2. •...

  • Page 11: Ce Marking

    CE Marking PS3710A-T41-PA1/PS3710A-T42-PA1 units are CE marked, EMC directives and Low Voltage Directive compliant products. They comply with EN61000-6-4 , EN61000-6-2 and EN60950-1. FCC Statement United States FCC Part 15, Subpart B, Class A EMI Compliance Statement: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 12: Table Of Contents

    1.3 Part Names and Functions ................1-4 1.3.1 PS-3710A Series ....................1-4 1.4 Prior to Operating the PS-A Unit..............1-7 1.4.1 Power Supply......................1-7 Chapter 2 Specifications 2.1 PS-3710A Series .................... 2-2 2.1.1 General Specifications ..................2-2 2.1.2 Performance Specifications ..................2-6 2.1.3 Interface Specifications ..................2-8 2.1.4 Dimensions ......................2-19 Chapter 3 Installation and Wiring 3.1 Installation •...
  • Page 13 4.1 Cleaning the Display..................4-2 4.2 Cleaning the Fan Filter ................... 4-2 4.3 Periodic Check Points..................4-3 4.4 Replacing the Installation Gasket ..............4-4 4.5 Replacing the Backlight .................. 4-6 4.5.1 PS-3710A Series ....................4-7 4.6 Replacing the Internal Battery ..............4-10...

  • Page 14: Chapter 1 Overview

    Overview 1. System Design 2. Accessories 3. Part Names and Functions This chapter describes peripheral devices that can be connected to PS-A Series units along with the name and functions of each part.

  • Page 15: Ps-3710A Series

    PS-3710A Series Hardware Manual 1.1 System Design 1.1.1 PS-3710A Series The following diagram illustrates the standard range of items that can be connected to PS-3710A Series. PS3710A-T41-PA1 *1*2 IDE I/F *1*2 Main Memory Module Main Memory I/F Peripherals COM1/COM2/COM3/COM4 (commercial type)

  • Page 16: Accessories

    Chapter 1 Overview 1.2 Accessories All accessories listed here are produced by Digital Electronics Corporation. 1.2.1 Option Items Product Name Model No. Description PSA-DDR512 Memory module 512M Bytes DIM module PSA-DDR1G Memory module 1G Bytes HDD Unit mounted is a Type 2.5" PATA Hard Disk PS365XA-HD40 (40G Bytes minimum without OS)

  • Page 17: Part Names And Functions

    PS-3710A Series Hardware Manual 1.3 Part Names and Functions 1.3.1 PS-3710A Series A: Power LED / RAS Status Lamp (POWER) PS-A Status Green (lit) Normal Operation (power is on) Green Soft OFF state (blinking) System Monitor Error Orange (lit) Touch Panel Self Test Error...
  • Page 18 Chapter 1 Overview K: USB Interface (USB) 4 ports. Complies with USB 2.0. Uses a “TYPE-A” connector. Power supply voltage 5V DC ±5% Output current 500mA (max.) The maximum communication distance Bottom L: Ethernet Interface (LAN1) 10BASE-T/100BASE-TX Auto Changeover. This interface uses an RJ-45 type modular jack connector (8 pins).
  • Page 19 PS-3710A Series Hardware Manual V: RAS Interface (RAS) D-SUB 25-pin plug type. W: Cooling FAN X: CF Card Interface Cover CF card interface is under the cover. CF card (Type I / II-compliant) is available. IDE-type connection. Y: Power Connector •...

  • Page 20: Prior To Operating The Ps-A Unit

    Chapter 1 Overview 1.4 Prior to Operating the PS-A Unit 1.4.1 Power Supply About states of PS-A’s power supply, there are three kinds of states, which are No Energization, Active State (Normal), and Soft OFF State . Each state is outlined in the following. Power State: No Energization Active State (Normal) Soft OFF...
  • Page 21 PS-3710A Series Hardware Manual...

  • Page 22: Chapter 2 Specifications

    Specifications 1. PS-3710A Series This chapter describes the general, functional and interface specifications of the PS-A as well as its part names and dimensions.

  • Page 23: General Specifications

    PS-3710A Series Hardware Manual 2.1 PS-3710A Series 2.1.1 General Specifications Electrical Specifications Input Voltage AC100/240V Rated Voltage AC85 to 265V Rated Frequency 50/60Hz Allowable Voltage 1 cycle or less (Voltage drop interval must be 1s or more.) Drop Power 150VA or less Consumption AC1.500V 20mA for 1minute...
  • Page 24 Chapter 2 Specifications Environmental Specifications Surrounding Air 0 to 50°C: without HDD Temperature 5 to 50°C: with HDD Storage −20 to +60°C Temperature Ambient Humidity 10 to 90%RH (Not condensing, wet bulb temperature: 29°C or less.) Storage Humidity 10 to 90%RH (Not condensing, wet bulb temperature: 29°C or less.) Dust Free of dust Pollution Degree...
  • Page 25 35°C no higher than 64% RH at 40°C no higher than 44% RH • In order to extend the lifetime of the hard disk, Pro-face recommends you set the ® Windows 2000's [Control panel]-[Power Options]-[Turn off hard disks] selection ®...

  • Page 26: Structural Specifications

    Chapter 2 Specifications Structural Specifications Grounding resistance of 100Ω 2mm or thicker wire, Grounding or your country’s applicable standard. (Same for FG and SG terminals) Rating: Equivalent to IP65f NEMA #250 TYPE 4X/12 (When installing Panels.) Structure Feature size: All-in-one Installation configuration: Panel embedding Cooling Method Forced cooling by unit fan and CPU fan...

  • Page 27: Performance Specifications

    PS/2 Keyboard PS/2 Interface (mini DIN 6 pin, socket) Side Access, 1 port A mini Dsub 15 pin (plug) is used to connect a RGB monitor on the market or Analog RGB FP Series unit manufactured by Pro-face. Master 2.5inch HDD I/F...
  • Page 28 If you use the PS-A in a system that takes this error seriously, adjust the clock in regular intervals. Display Functions PS-3710A Series Revision When PS-A Rev.5 is NOT marked When PS-A Rev.5 is marked...

  • Page 29: Interface Specifications

    PS-3710A Series Hardware Manual 2.1.3 Interface Specifications This section describes the specifications of each interface of the PS-3710A Series unit. Serial Interface (COM1,COM2,COM3,COM4) The PS-A unit side connector is a D-Sub 9 pin plug type. Interfit Bracket #4-40 (UNC) • Do not connect any pins to COM3 [NC].
  • Page 30 Chapter 2 Specifications COM3 COM3 can be changed to either RS-232C, RS-422 or RS-485. (The factory setting is RS-232C.) To change this setting, open the PS-A unit's rear cover and set slide switch on the circuit board to the desired position. Switches (page 2-11) •...
  • Page 31 PS-3710A Series Hardware Manual RS-485 Signal Name Direction Meaning DATA + Input / Output Send/Receive Data (+) DATA - Input / Output Send/Receive Data (+) No Connection No Connection Signal Ground (SG) No Connection No Connection No Connection No Connection...
  • Page 32 Chapter 2 Specifications Switches The following switch settings corresponding to each Serial Interface need to be signified. To set the switches which are on the PS-A’s circuit board, remove the PS-A’s Rear Cover. Please refer to 3.2.1Removal/ Attachment the Rear Cover (page 3-7). The switches are located as follows; 123456789 10 123456789 RS232C...
  • Page 33 PS-3710A Series Hardware Manual Switch Factory Description Notes Settings The middle point is not Disable/enable Detecting the considered to be touched middle point during touching Enabled Disabled when the SW is ON. It is two points simultaneously. considered to be touched when the SW is OFF.
  • Page 34 Chapter 2 Specifications RS-485 RS-485 (Data is not (Data is automati- automati- Switch Description RS-232C RS-422 cally con- cally con- trolled via the trolled via the RTS sig- RTS sig- nal.) nal.) Used by the system. No Connection No Connection Changes COM3's RS-422 / communication...
  • Page 35 PS-3710A Series Hardware Manual Serial Mode Select Switches (SW4 to SW10) operate as shown in the circuit diagram below. To enable RTS automatic control of the TX output driver, be sure to set SW No. 9 and 10 ON, and set SW No.4 OFF.
  • Page 36 Chapter 2 Specifications RAS Interface The PS-A unit side connector is a D-Sub 25 pin plug type. Interfit Bracket #4-40 (UNC) Pin Arrangement Pin No. Signal Name Meaning Ground Output Current:100mA or less (with a total of 2 pin and 15 pin) Output Voltage:5V±5% Output Current:100mA or less +12V...
  • Page 37 PS-3710A Series Hardware Manual General-Purpose Input (DIN 0 to 3, RST) Input Voltage DC12V to 24V Input Method Sink / Source Input Input Current 10mA ( DC24V ) Input Resistance 3.6kΩ 5 points ( common with external Input Points reset input )
  • Page 38 Chapter 2 Specifications General-Purpose Output (DOUT 0 to 3) Rated Voltage DC12V to 24V Maximum Load Current 120mA/point 1.5V or less Out Voltage Drop ( at 100mA load current ) Output Points 4 points Isolation Method Photocoupler Isolation Dielectric Strength 500V or more Voltage External Power Supply...
  • Page 39 PS-3710A Series Hardware Manual Analog RGB Interface Mini D-Sub 15pin male. As an Analog RGB cable, commercial type or the one manufactured by Pro-face is available to use. Interfit Bracket #4-40 UNC Pin Arrangement Pin No. Signal Name Meaning Analog R...

  • Page 40: Dimensions

    Chapter 2 Specifications 2.1.4 Dimensions The following dimensions apply to PS-3710A Series. Installation Fasteners Attached Dimensions Unit: mm[in.] 404.8[15.94] 382[15.04] 160[6.30] 160[6.30] +0.2 +0.01 [15.16 - 0.02 - 0.4 100[3.94] 4.3[0.17] 410[16.14] 5[0.20] Left Side Right Side Front 160[6.30] 165[6.50]...
  • Page 41 PS-3710A Series Hardware Manual Cable Attached Dimensions Unit: mm[in.] 385[15.16] 79[3.11] 53.5[2.11] Left Side Right Side Rear Bottom • All the above values are designed in case of cable bending. The dimensions given here are representative values depending on the type of connection cable used.
  • Page 42 Chapter 2 Specifications Panel Cut Dimensions Unit: mm[in.] +0.04 386.1 [15.20 −0 −0 4-R3[0.12] or less Panel thickness area 1.6[0.06] to 10.0[0.39] • Please read "3.1.1 Installation (page 3-2)" before designing the Panel Cut. Installation Fasteners Unit: mm[in.] 16[0.63] 16.6[0.65] 31[1.22] 2-21...
  • Page 43 PS-3710A Series Hardware Manual 2-22...

  • Page 44: Installation • Uninstallation

    Installation and Wiring 1. Installation • Uninstallation 2. Peripheral Devices Installation 3. Wiring Precautions...

  • Page 45: Installation

    PS-3710A Series Hardware Manual 3.1 Installation • Uninstallation 3.1.1 Installation This section describes the procedures and precautions for installing the PS-A units. Check the Installation Gasket’s Seating It is strongly recommended that you use the installation gasket, since it absorbs vibration in addition to repelling water.
  • Page 46 Chapter 3 Installation and Wiring Installation Requirements • For easier maintenance, operation, and improved ventilation, be sure to install the PS-A at least 50 mm [1.97 in.] away from adjacent structures and other equipment. Unit: mm • Be sure that the ambient operation temperature and the ambient humidity are within their designated ranges.
  • Page 47 PS-3710A Series Hardware Manual • When installing the PS-A in a slanted panel, and the panel face inclines more than 30°, the surrounding air temperature must not exceed 40°C. You may need to use forced air cooling (fan, A/C) to ensure the sur- rounding air temperature is 40°C or below.
  • Page 48 Chapter 3 Installation and Wiring (3) Insert each of the fasteners, as shown. Be sure to pull the fastener back until it is flush with the rear of the attachment hole. (4) Use a Phillips screwdriver to tighten each fastener screw and secure the PS-A in place.

  • Page 49: Peripheral Devices Installation

    PS-3710A Series Hardware Manual 3.2 Peripheral Devices Installation A wide variety of optional units, DIM module, CF cards, manufactured by Pro-face and commercial Expansion boards (PCI bus compatible board), PCMCIA (PC cards) can be used with the PS-A. When installing the optional units, refer to each unit's “Installation Guide”.

  • Page 50: Removal/Attachment The Rear Cover

    • Be careful when removing or inserting any screws that they do not fall inside the PS-A. For PS-3710A Series Unscrew the five (5) attachment screws used to hold the Rear Cover in place, and remove the Rear Cover. The •...

  • Page 51: Attaching The Power Switch Cover

    PS-3710A Series Hardware Manual 3.2.3 Attaching the Power Switch cover For the AC type to conform to ANSI/ISA standards, the Power Switch cover needs to be attached to the main unit. • • The necessary torque is 0.5N m to 0.6N 3.2.4...

  • Page 52: Expansion Board (Pci) Installation

    Chapter 3 Installation and Wiring 3.2.5 Expansion Board (PCI) Installation • The Expansion Board (PCI) is corresponding to PS-3710A units. (1) Remove the PS-A unit's rear cover. “3.2.1 Removal/Attachment the Rear Cover” (page 3-7) (2) Remove the blank panel’s screw, and detach the blank panel. (3) Insert the expansion board (commercial-type PCI) into the expansion board connector, and secure it in •...
  • Page 53 PS-3710A Series Hardware Manual • The maximum size allowed for an expansion board is 235mm x 106.68mm [9.25in. x 4.2in.]. When using an expansion board of this size, be sure to secure it in place using the expansion board support cover. Before the rear cover is closed, remove the expansion board support cover screw and be sure the expansion board support cover is detached.

  • Page 54: Pcmcia Unit Installation

    • screws. The necessary torque is 0.5N m to 0.6N • When using a PC Card with a cable attached, Pro-face recommends you use a clamp or other type of device to prevent vibration from possibly dislodging the cable. • Be sure to stop the PS-A unit PC Card’s driver prior to removing the PC Card. A failure to stop this driver may result in damage to either the PC Card, the PC ®...

  • Page 55: Hdd/Ssd Unit Installation

    PS-3710A Series Hardware Manual 3.2.7 HDD/SSD Unit Installation Shock Danger! Be sure to unplug the PS-A unit from its power supply prior to installing the HDD unit. • Since the HDD/SSD unit is a precision instrument that has a low resistance to shocks, be sure it is neither hit by nor pressed strongly against another object when installing it.

  • Page 56: Cf Card Insertion/Removal

    Multi Unit, the CF Card’s internal data, CF Card and the PS-A unit may be damaged or broken. Be sure to use only CF Cards manufactured by the Pro-face. The CF Card’s internal data may be damaged when using another manufacturer’s CF Card.
  • Page 57 PS-3710A Series Hardware Manual When inserting the CF Card For PS-3710A Series (1) Unscrew the CF Card cover's attachment screw (1), and remove the CF Card cover. CF Card Cover (2) Insert the CF Card firmly into the CF card slot, and check that the eject button pops out.

  • Page 58: Usb Cable Clamp Attachment/Removal

    Chapter 3 Installation and Wiring Backup of CF Card The CF Card has a data overwrite limit of approximately 100,000 times. Therefore, be sure to back up all CF card data regularly to another storage media. (100,000 times assumes the overwriting of 500KB of data in DOS format.) <...
  • Page 59 PS-3710A Series Hardware Manual (2) As shown, insert the USB Cable Clamp’s band through the Bridge. Pass the USB cables through the Cable Clamp’s band and securely tighten the clamp band around the cables. • Be sure the clamp is securely holding the USB cable’s plug and collar.

  • Page 60: Attach The Ps-A Unit To An Arm

    Chapter 3 Installation and Wiring 3.2.10 Attach the PS-A unit to an Arm To attach the PS-A unit to an Arm or to the wall, first remove the seal on the PS-A's rear face, then insert the attachment screws for a commercial-type arm or wall mount adaptor into the holes. (Holes specifications: VESA 75mm) For detailed attachment instructions, please refer to that product's installation guide.

  • Page 61: Wiring Precautions

    PS-3710A Series Hardware Manual 3.3 Wiring Precautions This section describes the procedures and precautions for wiring power cords. 3.3.1 Connecting the Power Cord To avoid an electric shock, prior to connecting the PS-A unit’s power cord terminals to the power terminal block, confirm that the PS-A unit’s power supply is completely turned OFF, via a breaker, or similar unit.
  • Page 62 Chapter 3 Installation and Wiring Wiring When connecting the power cord, use the following items when performing wiring. (Items are made by Phoenix Contact. Recommended Driver SZS 0.6x3.5 (1205053) AI 0.75-10GY (3201288) AI 1-10RD (3200182) Recommended Pin Terminals AI 1.5-10BK (3200195) AI 2.5-12BU (3200962) Recommended Pin Terminal Crimp Tool CRIMPFOX ZA3 (1201882)

  • Page 63: Connecting The Power Supply

    PS-3710A Series Hardware Manual 3.3.2 Connecting the Power Supply This section describes the precautions for supplying a power voltage. Twisted-pair cord Constant PS-A • If the supplied voltage exceeds the PS-A unit’s range, Voltage connect a constant voltage transformer. Chapter 2 "Specifications"...

  • Page 64: Grounding

    Chapter 3 Installation and Wiring 3.3.3 Grounding This section describes the precautions for grounding the PS-A unit. Do not use common grounding, since it can lead to an accident or machine breakdown. (a) Exclusive Grounding (BEST) • When supplying power to the PS-A unit, be sure to separate the input/output and power lines, as shown.
  • Page 65 PS-3710A Series Hardware Manual 3-22...

  • Page 66: Chapter 4 Maintenance

    Maintenance 1. Cleaning the Display 2. Cleaning the Fan Filter 3. Periodic Check Points 4. Replacing the Installation Gasket 5. Replacing the Backlight 6. Replacing the Internal Battery This chapter explains cautions and inspection criteria that will ensure trouble-free use of the PS-A.

  • Page 67: Cleaning The Display

    PS-3710A Series Hardware Manual 4.1 Cleaning the Display When the surface or frame of the display become dirty, soak a soft cloth in water with a neutral detergent, wring the cloth tightly, and wipe the display. • Do not use paint thinner, organic solvents, or a strong acid compound to clean the unit.

  • Page 68: Periodic Check Points

    Chapter 4 Maintenance 4.3 Periodic Check Points To keep your PS-A unit in its best condition, please inspect the following points periodically. PS-A Operation Environment Is the operating temperature within the allowable range? PS-3710A: 0°C to 50°C (without HDD) 5°C to 50°C (with HDD) Is the operating humidity within the specified range? PS-3710A: 10 to 90%RH (Not condensing, wet bulb temperature: 29°C or less.) Is the operating atmosphere free of corrosive gasses?

  • Page 69: Replacing The Installation Gasket

    PS-3710A Series Hardware Manual 4.4 Replacing the Installation Gasket The installation gasket provides protection against dust and moisture. • A gasket which has been used for a long period of time may have scratches or dirt on it, and could have lost much of its water resistance. Be sure to change the gasket at least once a year, or when scratches or dirt become visible.
  • Page 70 Chapter 4 Maintenance • The gasket must be inserted correctly into the groove for the PS-A’s moisture resistance to be equivalent to IP65f. • Since the gasket is flexible but not elastic, be careful not to stretch it unnecessarily, as doing so could tear the gasket. •...

  • Page 71: Replacing The Backlight

    PS-3710A Series Hardware Manual 4.5 Replacing the Backlight • The backlights of the PS-A which is marked on Rev.5 cannot be replaced by the user. When the backlight needs to be replaced, please contact your local PS-A distributor. About the Backlight PS-A units use a CFL, long-life type backlight.

  • Page 72: Ps-3710A Series

    CA7-BLU15-01 PS3711A-T42,PS3711-T42-24V 4.5.1 PS-3710A Series Be sure to wear gloves when exchanging the backlight, and follow the following procedures. (1) Turn OFF the power switch of the PS-A and remove the power cable. (2) Remove the PS-A unit from the equipment (panel etc.) to which the unit has been incorporated, and place the PS-A unit on a flat, level surface facing the display face downwards.
  • Page 73 PS-3710A Series Hardware Manual (5) Insert a screwdriver into the two holes (points) shown below, and remove the backlight attachment screws (1 per hole). FD Drive unit Insertion Area Insert a screwdriver (2 holes) DVD-ROM Drive (6) Remove the cable from the cable clamp, and detach the cable from the backlight connector on the inverter board.
  • Page 74 Chapter 4 Maintenance (7) Pull out the cable in the direction shown by the arrow. The backlight unit detaches from the backlight unit insertion point. Backlight Unit Cable Backlight Unit Insertion Point • The entire backlight unit should be changed, not just the backlight. (8) Insert the new backlight unit into the backlight holder.

  • Page 75: Replacing The Internal Battery

    BIOS settings again after replacing the battery. There is a danger of explosion if the PS-A unit's battery is incorrectly replaced. This battery should be replaced with equivalent type recommended by Pro-face. Prior to replacing the battery, be sure to turn OFF the PS-A unit's power.
  • Page 76 Chapter 4 Maintenance Battery Replacement Procedure The battery is on the PC board inside the PS-A unit. Refer to ““3.2.1Removal/Attachment the Rear Cover” (page 3-7)” for how to open the PS-A unit. (1) Be sure to confirm that power is not supplied to the PS-A unit and open the unit. Internal Battery Internal View (2) Remove the battery.
