Handset
Volume control button
Transfer button
Feature button
Conference button
Test button
Drop button
Mute button
Speaker button

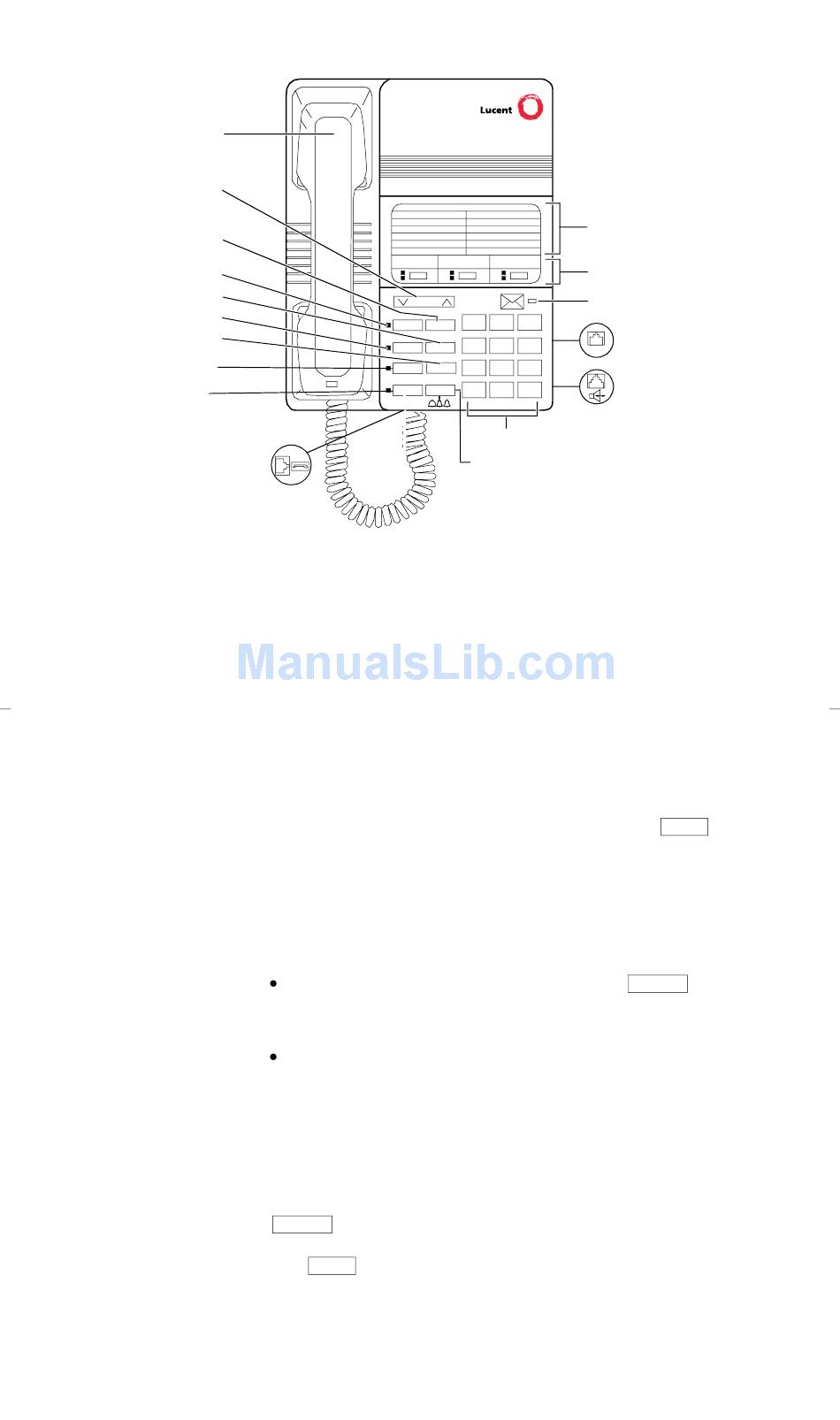

Figure 2. Another Version of the 8403 Voice Terminal
The following features on the 8403 voice terminal shown in Figures 1 and 2 are listed
alphabetically for your convenience. Explanations for each feature are also provided.
Conference button
Dial pad
Drop button
Feature button
Handset jack
For setting up conference calls. This button is labeled
The standard 12-button pad for dialing phone numbers and accessing
features. (See Note below.) The letters "Q" and "Z" have been added
to the appropriate dial pad keys for directory access, and the "5"
button on your dial pad has raised bars for visually-impaired users.
Note: The dial pad can be used in 2 ways:
Feature selection mode — When you press
Feature light is on), the dial pad is used to access the features
listed on F1 through F9, F*, F0, and F#.
Normal mode — When the Feature light is off, the dial pad can
be used in the usual manner, that is, to dial phone numbers or
feature access codes.
For disconnecting from a call or dropping the last party added to a
conference call.
A blue button used with dial pad keys for accessing the 12 features
listed on the Feature Directory. (This button will be shown as
Feature
in the remainder of this guide.) When the Feature button is
active, the red light next to the button is on. When this button is used
with Hold , you can select a personalized ring from among eight
available patterns.
a b c
c
Volume
ABC DEF
1 2 3
Feature Transfer
GHI JKL MNO
4 5 6
Test Conf
PQRS TUV WXYZ
Drop
Mute 7 8 9
#
* O
Speaker
Hold
Dial pad
Hold/Ring
button
Feature Directory
3 Call appearance buttons
Message light
Line jack (on back of
voice terminal)
LINE
Speakerphone/
headset adapter
jack (on back of
voice terminal)
