NOBO PANEL RADIATORS

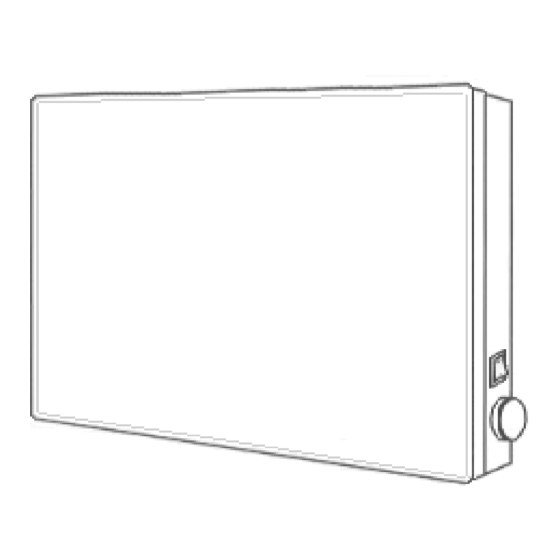

SERIES '14' TYPE 'E4EU' PANEL RADIATORS
Budget range of heaters
o
Six sizes 500 to 2000 watt
o
Electronic Thermostatic control
o
Adjustable scale 5 - 30°C.
o
Electronic 7 day Timer
o
500 hour Memory retention
o
On - Off switch
o
Over-heat Cut-Out
o
White paint finish RAL 9010
o
Classified IP 24
o
Flex connection 1.9m (RH side)
o
E4EU 2000
E4EU 1500
E4EU 1250
E4EU 1000
E4EU 750
E4EU 500
475
625
775
Telephone: 0121 328 5671
Facsimile: 0121 327 8580
D
D
C
B
A
975
1125
1525
A
B
C
D
E
400
E
Wall Bracket fixing centres
L
200
300
200
400
600
1000
70
71
100
Min. Clearance
70
Min. Clearance
L
Series 14 - E4EU - Dims. txt - 1402
23
Advertisement
Table of Contents
Related Manuals for NOBOCOOL E4EU 2000
Summary of Contents for NOBOCOOL E4EU 2000
- Page 1 Electronic 7 day Timer 500 hour Memory retention On - Off switch Over-heat Cut-Out White paint finish RAL 9010 Classified IP 24 Flex connection 1.9m (RH side) E4EU 2000 E4EU 1500 E4EU 1250 E4EU 1000 Min. Clearance E4EU 750 E4EU 500 Min.
- Page 2 NOBO PANEL RADIATORS SERIES '14' OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Switch the heater on On / Off switch. l = On, 0 = Off. Set required temperature with control knob. Rotate clockwise to increase the temperature setting or anticlockwise to reduce the temperature setting. Min = 5°C - Max = 30°C The temperature setting of the heater/s should be adjusted to provide the required room temperature.
- Page 3 ELECTRIC TOWEL RAILS EXECUTIVE TOWEL RAILS Chrome or White Enamel finish ( RAL 9010 ) Classified IP 44 Flex Connection ( LH ) Choice of sizes Three widths Three heights Five loadings Picture shows KLC Towel Rail mounted with a room divider kit. (Optional Extra) TYPE LOAD heigth...
- Page 4 NOBO PANEL RADIATORS SERIES '14' TYPE 'E4EN' PANEL RADIATORS Budget range of heaters Six sizes 500 to 2000 watt Electronic Thermostatic control Adjustable scale 5 - 30°C. On - Off switch Over-heat Cut-Out White paint finish RAL 9010 Classified IP 24 Flex connection 1.9m (RH side) E4EN 2000 E4EN 1500...
- Page 5 NOBO PANEL RADIATORS SERIES '14' OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Switch the heater on On / Off switch. l = On, 0 = Off. Set required temperature with control knob. Rotate clockwise to increase the temperature setting or anticlockwise to reduce the temperature setting. Min = 5°C - Max = 30°C The temperature setting of the heater/s should be adjusted to provide the required room temperature.
