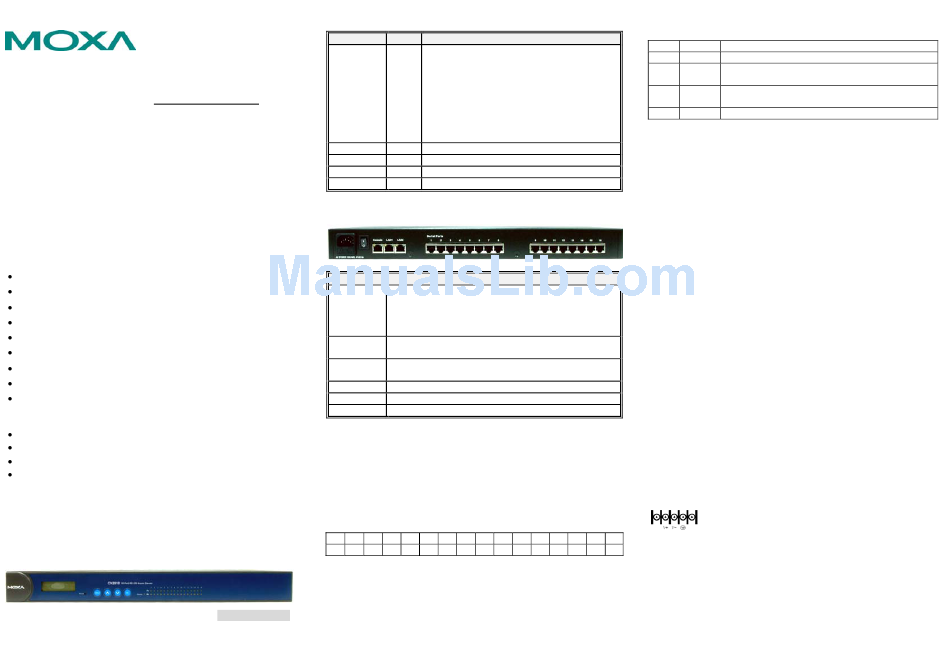

CN2610 Series Quick Installation Guide
Second Edition, May 2004
1. Overview
Welcome to Moxa CN2610 Dual LAN Async Server, a communication server
with 8/16 asynchronous RS-232 ports and Dual 10/100 Mbps Ethernet LAN
port. CN2610 Dual LAN Async Server can be used to connect terminals,
modems, printers, and other asynchronous serial devices to LAN hosts.
CN2610 complies with TCP/IP and IEEE 802.3 specifications using standard
Ethernet 10/100BaseT and twisted pair 10/100BaseTX cable as the physical
medium.

2. Package Checklist

CN 2610 Dual LAN Async Server products are shipped with the following
items:
1 CN 2610 Dual LAN Async Server
1 AC power Cord ( only for CN2610-16 or CN2610-8)
1CD-ROM
Quick Installation Guide
1 RJ45 Loopback Tester
Product Warranty Booklet
Rackmount kit including 2 brackets and 8 screws
1 CBL-RJ45F9-150
1 CBL-RJ45M25-150
Optional Accessories
CBL-RJ45M9-150 RJ45 8-pin to DB9 Male cable, 150 cm
CBL-RJ45F9-150 RJ45 8-pin to DB9 Female cable, 150 cm
CBL-RJ45M25-150 RJ45 8-pin to DB25 Male cable, 150 cm
CBL-RJ45F25-150 RJ45 8-pin to DB25 Female cable, 150 cm
NOTE: Notify your sales representative if any of the above items is missing or
damaged.
3. Hardware Introduction
Front Panel
—1—
LED Color
Reset None If you forget the password, press this button for 5
Ready Red
Ready Green Displays CN2610 system is ready
Serial Tx Green Displays serial port transmission
Serial Rx Yellow Displays serial port reception
Real Panel
Connector
AC Power
Automatic detection of 100-240V, 47-63Hz AC power
Input
supply (CN2610-16 or CN2610-8)
Automatic detection of 12-48VDC, 1.01A at 12V, 240 mA at
48V DC power supply (CN2610-16-48V or CN2610-8-48V)
Power On/Off I indicates power on; O indicates power off
Switch
RS-232 One RJ45 connector for console terminal connection
Console Port
LAN1 Auto detection for 10/100 Mbps
LAN2 Auto detection for 10/100 Mbps
Serial Ports One RJ45 connector for DCE(modem) connection
LCM Display
We recommend using LCM display and four push buttons to configure the IP
address at the first time installation.
Basic Operation：
If the CN2610 is working properly, the LCM panel will display a green color.
The red Ready LED will also light up, indicating that the CN2610 is
receiving power. After the red Ready LED turns to green, you will see a
display similar to:
C N 2 6
1 9 2 .
CN2610-16
03
192.168.127.254
There are four push buttons on CN2610's nameplate. Going from left to right,
P/N: 18020260001
the buttons are:
Description
seconds, then the system will be returned to factory
default.
Use tools with sharp end to press Reset button
continuously. The Ready LED will keep blinking
when your press the Reset button. After releasing
the Reset button, you will hear Bi-Bi sound,
meaning the default settings are restored and
CN2610 has rebooted.
Displays CN2610 system is powered on
Function
1 0 - 1 6 _ 3
1 6 8 . 1 2 7 . 2 5
is the CN2610's name
is the CN2610's serial number
is the CN2610's IP address
—2—
Button Name
MENU menu activates the main menu, or returns to an upper level
scrolls up through a list of items shown on the LCM
︿ up cursor
panel's second line
down scrolls down through a list of items shown on the LCM
﹀
cursor panel's second line
SEL select selects the option listed on the LCM panel's second line
The buttons are manipulated in a manner similar to the way a modern cellular
phone operates. As you move through the various functions and setting
options, note that the top line shows the current menu or submenu name, and
the bottom line shows the submenu name or menu item which is activated by
pressing the SEL button.
Refer to CN2610 Dual LAN Async Server User's Manual for more details.

4. Hardware Installation

1. Installing CN2610: open the package, and attach CN2610 to a desktop,
or fasten it to the rack cabinet.
2. Wiring Requirements：
A. Use separate paths to route wiring for power and devices. If power
wiring and device wiring paths must cross, make sure the wires are
perpendicular at the intersection point.
B. NOTE: Do not run signal or communication wiring and power
wiring in the same wire conduit. To avoid interference, wires with
different signal characteristics should be routed separately.
C. Where necessary, it is strongly advised that you label wiring to all
devices in the system.
3. Connecting Power：
A. AC：Connect CN2610 100-240 VAC power line with its AC
connector. If the power is properly supplied, the "Ready" LED will
show a solid red color until the system is ready, at which time the
"Ready" LED will change to a green color.
B. DC：Connect CN2610-16/8-48V's power cord to CN2610's DC
connector. Next, follow the steps below：
1. Loosen the screws on the V
CN2610-8/16-48V's terminal block.
2. Connect the power cord's 48 VDC wire to the
DC Power 48V
terminal block's V
DC Power Ground wire to the terminal block's V
terminal, and then tighten the terminal block screws.
(Note: CN2610-8/16-48V can still operate even if the
DC 48V and DC Power Ground are reversed.)
4
If the power is properly supplied, the "Ready" LED will show a solid red
color until the system is ready, at which time the "Ready" LED will change to
a green color.
Grounding CN2610-16/8-48V
Grounding and wire routing helps limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
—3—
Action
and V terminals of
+ -
terminal, and the power cord's
+
-
