Moxa Technologies CN2610 Series Quick Installation Manual

CN2610 Series

Quick Installation Guide

Fourth Edition, August 2007
1. Overview
Welcome to the Moxa CN2610 dual-LAN terminal server, a
communication server with 8 or 16 RS-232 ports and dual 10/100 Mbps
Ethernet LAN ports. The CN2610 dual-LAN terminal server can be used
to connect terminals, modems, printers, and other serial devices to LAN
hosts. Rhw CN2610 complies with TCP/IP and IEEE 802.3 specifications
using standard Ethernet 10/100BaseT and twisted pair 10/100BaseTX
cable as the transmission medium.
2. Package Checklist
The CN2610 dual-LAN terminal server products are shipped with the
following items:
1 CN2610 Terminal Server
1 power cord (AC models only)*
Document and & Software CD-ROM
Quick Installation Guide (this guide)
1 DB9 serial cable (CBL-RJ45F9-150)
1 DB25 serial cable (CBL-RJ45M25-150)
* Power cords are available with US, Euro, UK, and JP plugs.
Optional Accessories
CBL-RJ45M9-150: RJ45 (8-pin) to DB9 (male) cable, 150 cm
CBL-RJ45F9-150: RJ45 (8-pin) to DB25 (female) cable, 150 cm
CBL-RJ45M25-150: RJ45 (8-pin) to DB25 (male) cable, 150 cm
CBL-RJ45F25-150: RJ45 (8-pin) to DB25 (female) cable, 150 cm
NOTE: Notify your sales representative if any of the above items are
missing or damaged.

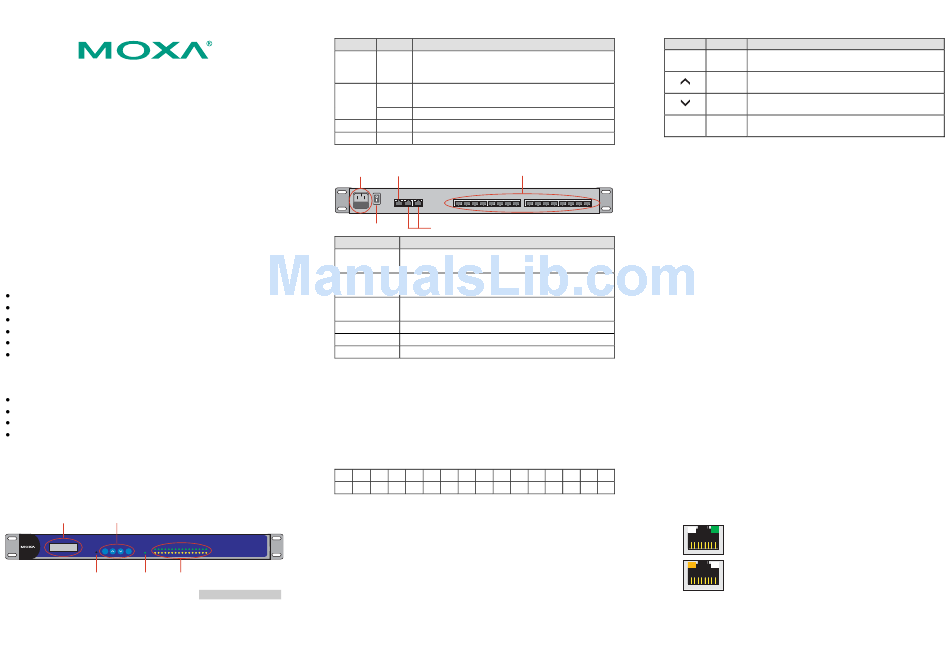

3. Hardware Introduction
Front Panel
LCM Display Panel Push Buttons
CN2610 16 port RS-232 Async Server
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Tx
MENU SEL
Reset
Ready Rx
Reset Button Ready LED LED Indicators
— 1 —
LED
Reset
Ready
Serial Tx
Serial Rx Yellow Flashes to indicate serial port reception.
Rear Panel
Power Input
AC POWER 100-240V, 47-63Hz
Power On/Off Switch
Connector
AC Power
Input
Power On/Off
Switch
RS-232
Console Port
LAN1
LAN2
Serial Ports
LCM Display
We recommend using the LCM display and four push buttons to
configure the IP address for the first time.
Basic Operation
If the CN2610 is working properly, the LCM panel will display a green
color. The red Ready LED will also light up, indicating that the CN2610
is receiving power. After the red Ready LED turns to green, you will see a
display similar to the following:
C N 2
1 9 2
CN2610-16:
03:
192.168.127.254:
There are four push buttons on the CN2610's nameplate. Going from left
to right, the buttons are:
P/N: 1802026000213
Color Description
Press the Reset button for 5 seconds to load factory
defaults. The CN2610 will beep twice when the
None
configuration has been reset.
Used for configuring the IP address and other
Red
parameters.
Green Lights up when the CN2610 system is ready.
Green Flashes to indicate serial port transmission.
RS-232 Console Port Serial Ports
Serial ports
Console LAN1 LAN2
1 2 3 4 5 6 7 8 9 10 11 12
10/100BaseT Ethernet Ports
Function
Automatic detection of 100-240V, 47-63 Hz AC power
supply (CN2610-8 or CN2610-16).
I indicates power on; O indicates power off.
One RJ45 connector for console terminal connection.
Auto detecting 10/100 Mbps port.
Auto detecting 10/100 Mbps port.
8 or 16 RJ45 connectors for DCE (modem) connections.
6 1 0 - 1 6 _ 3
. 1 6 8 . 1 2 7 . 2
The CN2610's name
The CN2610's serial number
The CN2610's IP address
— 2 —
Button Name
MENU menu
up cursor
down
cursor
SEL select
The buttons are manipulated in a manner similar to the way a modern
cellular phone operates. As you move through the various functions and
setting options, note that the top line shows the current menu or submenu
name, and the bottom line shows the submenu name or menu item that is
activated by pressing the SEL button.
13 14 15 16
Refer to CN2610 User's Manual for more details.
4. Hardware Installation
1. Installing the CN2610
Open the package, and attach the CN2610 to a desktop, or fasten it to
the rack cabinet.
2. Wiring Requirements
A. Use separate paths to route wiring for power and devices. If power
wiring and device wiring paths must cross, make sure the wires are
perpendicular at the intersection point.
B. NOTE: Do not run signal or communication wiring and power
wiring in the same wire conduit. To avoid interference, wires with
different signal characteristics should be routed separately.
C. Where necessary, we strongly advised that you label wiring to all
devices in the system.
3. Connecting Power
AC: Connect the CN2610 100-240 VAC power line with its AC
connector. If the power is properly supplied, the "Ready" LED
will show a solid red color until the system is ready, at which
time the "Ready" LED will change to a green color.
If the power is properly supplied, the "Ready" LED will show a solid
red color until the system is ready, at which time the "Ready" LED
will change to a green color.
4. Connecting to the Network
Connect one end of the Ethernet cable to the CN2610's 10/100M
Ethernet port and the other end of the cable to the Ethernet network.
5 4
There are 2 LED indicators located on the top left and right corners of
the Ethernet connector. If the cable is properly connected, the CN2610
will indicate a valid connection to the Ethernet in the following ways:
The top right corner LED indicator maintains a solid
green color when the cable is properly connected to a
100 Mbps Ethernet network.
1 8
The top left corner LED indicator maintains a solid
orange color when the cable is properly connected to a
10 Mbps Ethernet network.
5. Connecting to a Serial Device
Action
Activates the main menu, or returns to an upper
level.
Scrolls up through a list of items shown on the
LCM panel's second line.
Scrolls down through a list of items shown on the
LCM panel's second line.
Selects the option listed on the LCM panel's
second line.
— 3 —
