Page 1: User Manual

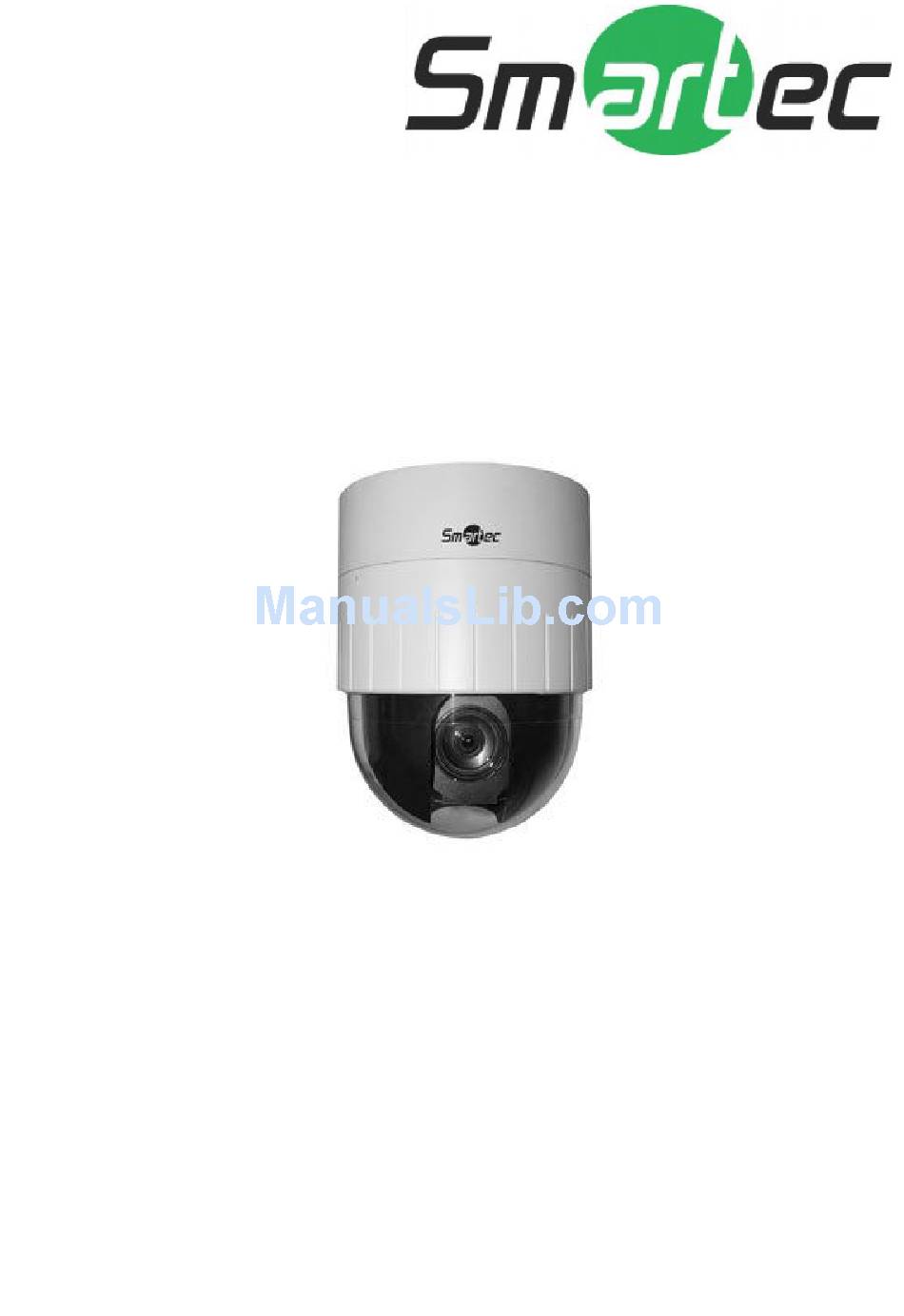

Smartec STC-3904/3902/3905 Day/Night High-Speed Dome Cameras User Manual www.smartec-security.eu... -
Page 2: Table Of Contents
CONTENTS Warning & Caution ------------------------------------------------------------------------------ 3 What's in the Box -------------------------------------------------------------------------------- 3 General Fratures --------------------------------------------------------------------------------- 4 Names of Each Part ----------------------------------------------------------------------------- 5 Installation ----------------------------------------------------------------------------------------- 6 A. Connection Method ------------------------------------------------------------------- 6 B. Ceiling Mount Type ------------------------------------------------------------------- 8 C. Embedded Mount Type ------------------------------------------------------------- 9 D. -
Page 3: Warning & Caution
WARNING & CAUTION If you fail to read this information and handle CAUTION the product incorrectly, death or serious RISK OF ELECTRIC SHOCK injury may occur. DO NOT OPEN The unit should be installed by the trained CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, personnel DO NOT REMOVE COVER (OR BACK). -
Page 4: General Features
GENERAL FEATURES World most silent speed dome camera Quick Operation Keys Equipped with silent and smooth timing belt and This camera provides quick function keys to special gear, low-noisy-technology enhances allow control by most keyboards and DVRs that durable quality of the camera by reducing the have Pelco protocol support.. -
Page 5: Names Of Each Part
NAMES OF EACH PART FIG. 1 Bubble Video Output Lock Screw Loop RX DIP Switch 1 Loop TX DIP Switch 2 Power LED Camera Lock Holder Alarm Power Mount Holder... -
Page 6: Installation
INSTALLATION A. CONNECTION METHOD UNLOCK FIG. 2 FIG. 3 FIG. 4 A-1. To separate camera body Loosen Lock Screw 2mm to the counterclockwise using the wrench. (Don't pull out the screw) (FIG. 2) Separate the upper body from the lower body rotating counterclockwise. (FIG. 3, 4) A-2. - Page 7 INSTALLATION IR SENSOR or DOOR SENSOR AUX 1 SIGNAL AUX 2 AUX 2 AUX 2 (2,3,4 Same way of 1) TERMINAL BLOCK (FEMALE) MONITOR TERMINAL BLOCK (MALE) AC24V ADAPTOR AC220/110V OTHER CAMERA or DEVICE FIG. 8 CONTROLLER or DVR A-4. Alarm : 4 Alarm input A-5.
-
Page 8: Ceiling Mount Type
INSTALLATION B. CEILING MOUNT TYPE CONTENTS 1. CEILING MOUNT BRACKET 1ea B-1. Find the places which are strong enough to support the camera, about 2kg. B-2. Make a hole, Ø145mm, on the ceiling. (FIG. 9) Hook the safety wire to suspension and the safety wire hold on the bracket. (FIG. 10) B-3. -
Page 9: Embedded Mount Type
INSTALLATION C. EMBEDDED MOUNT TYPE CONTENTS 1. EMBEDDED MOUNT BRACKET 1ea FIG. 16 SAFETY WIRE HOLE LOCK LEVER LOCK LEVER LOCK LEVER EMBEDED MOUNT LOCK LEVER FIG. 17 C-1. Prepare a Ø190mm hole in the ceiling board. Fix the safety wire to a suspension to prevent camera from falling. Other side of safety wire is fixed to the safety wire hole. -
Page 10: Pipe Mount Type
INSTALLATION D. PIPE MOUNT TYPE CONTENTS 1. PIPE MOUNT BRACKET 1ea 2. SET ANCHOR BOLT (W5/16) 4ea 3. CAP 1ea D-1. If you want to install the speed dome on the concrete wall, you need to make 12.5mm diameter 4 holes by drill like FIG. 19. (Depth 37mm) D-2. - Page 11 INSTALLATION FIG. 22 <The cable into ceiling> <The cable out of ceiling> D-6. Tie the wire using the cable ties. (FIG. 23) D-7. Place the Camera Mount Holder on the Bracket Mount Hole. To insert them easily, keep 10° interval of Lock Holder1 and Lock Holder2. (FIG. 24) D-8.
-
Page 12: Gooseneck Mount Type
INSTALLATION E. GOOSENECK MOUNT TYPE CONTENTS 1. GOOSENECK MOUNT BRACKET 1ea 2. SET ANCHOR BOLT (W5/16) 4ea 3. CAP 1ea E-1. If you want to install the speed dome on the concrete wall, you need to make 12.5mm diameter 4 holes by drill like FIG. 26. (Depth 37mm) E-2. -
Page 13: Wall Mount Type
INSTALLATION F. WALL MOUNT TYPE CONTENTS 1. WALL MOUNT BRACKET 1ea 2. SET ANCHOR BOLT (W5/16) 4ea F-1. If you want to install the speed dome on the concrete wall, you need to make 12.5mm diameter 4 holes by drill like FIG. 30. (Depth 37mm) F-2. -
Page 14: Corner Mount Type
INSTALLATION <The cable into ceiling> G. CORNER MOUNT TYPE CONTENTS 1. CORNER MOUNT BRACKET 1ea 2. SET ANCHOR BOLT (W5/16) 4ea 3. M10 BOLT & NUT 4ea G-1. First mark the position of holes placing the corner mount bracket.(FIG. 33) Make Ø12.5mm 4 holes by drill. -
Page 15: Pole Mount Type
INSTALLATION H. POLE MOUNT TYPE CONTENTS 1. POLE MOUNT BRACKET 1ea 2. SUS BAND 2ea 3. M10 BOLT & NUT 4ea H-1. Fix the wanted bracket on the corner mount bracket with 4ea of M10 bolt before you Install the corner mount bracket. (FIG. 36) H-2. -
Page 16: Indoor Housing Adaptor Type
INSTALLATION I. INDOOR HOUSING ADAPTOR TYPE CONTENTS 1. INDOOR HOUSING 1ea 2. PIPE NUT 2ea I-1. After screwing pipe nut on the pipe and inserting it into housing, fix the pipe with housing By screwing the nut again. (FIG. 38) I-2. - Page 17 INSTALLATION I-5. To assemble, rotate the camera clockwise by 10°. (FIG. 40) I-6. Screw up Lock Holders with screws. (FIG. 41) I-7. Assemble the cover. Fix three Cover Locks to three Cover Holes rotating clockwise. (FIG. 42) SCREW (M3.0) LOCK HOLDER 1. LOCK HOLDER 2.
-
Page 18: Ouick Operating Keys
QUICK OPERATING KEYS The dome supports Pelco-D/P, SAMSUNG and VICON protocols. The dome may be used with any controller or DVR etc that supports the Pelco D and Pelco P protocols. The default setting of the dome is Pelco D / P (auto detection) with 2400 bps (baud rate). [PELCO D/P PROTOCOLS] The comprehensive feature set of the dome is available from Pelco compatible controllers via quick operation keys as defined below. - Page 19 QUICK OPERATING KEYS ● 92 + preset : This feature freezes the current live image during tour, auto scan or pattern operation. When you press 92 + preset button, the image freezes but the camera is still working as per operation such as tour, pattern or auto scan. To return to normal images, press 92 + preset button again.
-
Page 20: Diagnostic
DIAGNOSTIC Whenever the dome is powered on, a standard diagnostic is operated. PAN ORIGIN TEST OK CAMERA ID : 001 TILT ORIGIN TEST OK BAUD RATE : 2400 BPS TX CONNECTION TEST OK CAMERA COMM TEST OK WAITING……… Pan Origin Test Zero point of Pan is located during the Panning test. -
Page 21: Osd Menu Setting
OSD MENU SETTING A. OSD MENU TABLE AUTO SCAN SET SECTOR SET [INITIALIZATION] START ANGLE : XXX.X.XX.X SECTOR NO : 01 [TOUR CLEAR] END ANGLE : XXX.X.XX.X SECTOR ID : SECTOR01□□□ [PRESET CLEAR] DIRECTION : CW SECTOR START : XXX.X.XX.X [SECTOR CLEAR] ENDLESS : OFF/ON... -
Page 22: Dome Set
OSD MENU SETTING To enter OSD Menu, press the button 95+Preset (Maxpro 90+Preset) then OSD Main Menu is displayed. MAIN MENU DOME SETUP CAMERA SET PRESET AUTO SCAN TOUR PRAVACY PATTERN ALARM SECTOR EXIT ● Use the joystick up down to move the position and left right to make selection. B. - Page 23 OSD MENU SETTING B-2. DOME SET - RECOVER This feature allows the dome to revert to a specific programmed action when the dome has not received a command for the recovery timer period. Actions can be Auto scan, group tour, preset, and pattern. The recover time can be programmed from 15 second to 90 seconds.
- Page 24 OSD MENU SETTING B-8-2. DOME SET - [NEXT PAGE] – [PASSWORD] To enter this page to set a password, move joystick or pan key in the right direction. The password must be set by preset number from 001 to 255 (Default 99) ENTER PASSWORD BY ENTERING PRESET CODE PASSWORD ***...
- Page 25 OSD MENU SETTING B-8-3. DOME SET - [NEXT PAGE] - [OSD DISPLAY] The camera ID setting defines whether the camera OSD display is displayed or switched off. OSD DISPLAY CAMERA ID : OFF PRESET ID : OFF DEFAULT SETTING SECTOR ID : OFF COORDINATE : ON [PREVIOUS PAGE]...
- Page 26 OSD MENU SETTING B-8-5. DOME SET - [NEXT PAGE] - [INITIALIZATION] To clear the current settings select the item that you wish to reset back to factory defaults. INITIALIZATION [TOUR CLEAR] [PRESET CLEAR] [SECTOR CLEAR] [PRIVACY CLEAR] [PATTERN CLEAR] [LOAD OPTIMIZED DEFAULT] [PREVIOUS PAGE] To clear the memorized data, move the joystick or pan right key until the cursor is on the required item.
- Page 27 OSD MENU SETTING LOAD OPTIMIZED DEFAULT NOW EEPROM ALL DATA ARE YOU SURE? YES CHECKING INITIALIZING To clear all data and return to factory defaults, move the joystick right or press the pan right key to when the cursor is at [LOAD OPTIMIZED DEFAULT] to enter the next page.
-
Page 28: Camera Set
OSD MENU SETTING C. CAMERA SET CAMERA SET FLICKER : OFF MIRROR : OFF APERTURE : 10 D ZOOM : OFF DEFAULT SETTING WB MODE : AWB MODE PIC FLIP : OFF : OFF D/N MODE : AUTO DSS MODE : OFF EXIT C-1. - Page 29 OSD MENU SETTING C-6. CAMERA SET - PIC FLIP The picture flip feature swps the top and bottom of the image, literally inverting it. The default setting is OFF. C-7. CAMERA SET - BLC (Back Light Compensation) The default setting is OFF and BLC modes can be OFF/ON. OFF Backlight compensation is not activated.
-
Page 30: Preset
OSD MENU SETTING D. PRESET SET PRESET SET PRESET NO :001 PRESET ID :PRESET001□□□□□□□□□ DEFAULT SETTING PAN: XXX.X TILT: XX.X SAVE EXIT D-1. PRESET - PRESET NO. Up to 165 preset positions are available. Use the joystick or pan left/right keys to select the number. D-2. -
Page 31: Auto Scan Set
OSD MENU SETTING E. AUTO SCAN SET ● 66 + preset (Maxpro: 86+Preset) button is working as AUTO SCAN after setting. AUTO SCAN SET START ANGLE : XXX.X.XX.X END ANGLE : XXX.X.XX.X DIRECTION : CW ENDLES : OFF DEFAULT SETTING SPEED : 10º/S DWELL TIME : 03... -
Page 32: Tour Set
OSD MENU SETTING F. TOUR SET 8 Programmable tours can be set and each tour can have up to 64 preset steps. After setting up the tours the 71~78 + preset buttons launch group tours # 1~8. ● Maxpro protocol provides three (3) quick operation keys (87~89 + preset) for Group tour but it is possible to set up to Group tour #8. -
Page 33: Privacy Set
OSD MENU SETTING G. PRIVACY SET 24 Privacy masking zones can be set. PRIVACY SET PRIVACY NO : 01 DISPLAY : OFF DEFAULT SETTING ACTION : MOVE SAVE EXIT G-1. PRIVACY SET - PRIVACY NO. Up to 4 privacy masking zones can be set. G-2. -
Page 34: Pattern Set
OSD MENU SETTING H. PATTERN SET 8 programmable patterns are available with 16 characters of title. After set the data to the each pattern # 1~8, 81~88+ preset buttons are working as Pattern # 1~8. ● Maxpro protocol provides six (6) quick operation keys (80~85 + preset) for patterns but it is possible to set up to pattern #8. -
Page 35: Alarm Set
OSD MENU SETTING ALARM SET 4 Alarm inputs are available and each alarm is activating to presets, group tours or patterns. ALARM SET ALARM NO : 01 ALARM INPUT : OFF DEFAULT SETTING ALARM ACT : 001 SAVE EXIT I-1. ALARM SET - ALARM NO. -
Page 36: Alarm Set
OSD MENU SETTING J. SECTOR SET Up to 8 programmable sectors are available with 16 characters. This feature is useful to memory the certain location such as parking zone or so on. SECTOR SET SECTOR NO : 01 SECTOR ID : SECTOR01□□□□□□□□... -
Page 37: Dip Switch Setting
DIP SWITCH SETTING A. ID SETTING The camera has camera ID to be controlled by Controller or DVR. After opening, set ID using DIP SW1. ● Factory default : Camera ID = 1 DIP SWITCH 1 DIP SWITCH 2 * (1-ON, 0-FF) DIP SW VALOR ID DIP SW... - Page 38 DIP SWITCH SETTING DIP SW VALOR ID DIP SW VALOR ID DIP SW VALOR ID 01101110 00100101 01001011 11101110 10100101 11001011 00011110 01100101 00101011 10011110 11100101 10101011 01011110 00010101 01101011 11011110 10010101 11101011 00111110 01010101 00011011 10111110 11010101 10011011 01111110 00110101 01011011 11111110...
-
Page 39: 485 Termination
DIP SWITCH SETTING B. 485 TERMINATION The 1 of DIP SW2 is used for 100W termination. Set ON DIP SW2 -1 of only the last looped camera from the controller. Even in case of only one camera, set ON DIP SW2 -1 of the camera. -
Page 40: Trouble Shooting
TROUBLE SHOOTING If you have trouble operating in your camera, refer to the following. PROBLEM SOLUTION No operating ● Check if the power supply is AC24V. ● Check if RS-485 communication cable is connected correctly. ● Check camera ID setting. ●... -
Page 41: Specification
SPECIFICATION MODEL 18X STC-3904/2 26X STC-3902/2 36X STC-3905/2 Pan Rotation Angle 360º Endless Pan Speed Manual 0.5º ~ 100, 200º /sec (64step) Preset Max 300º/sec , Min 10º/sec PAN/TILT Tilt Rotation Angle 0º ~ 90º Tilt Speed Manual 0.5º ~ 100,200º/sec (64step) Preset Max 300º/sec , Min 10º/sec... -
Page 42: Dimensions
DIMENSIONS UNITS:mm...
