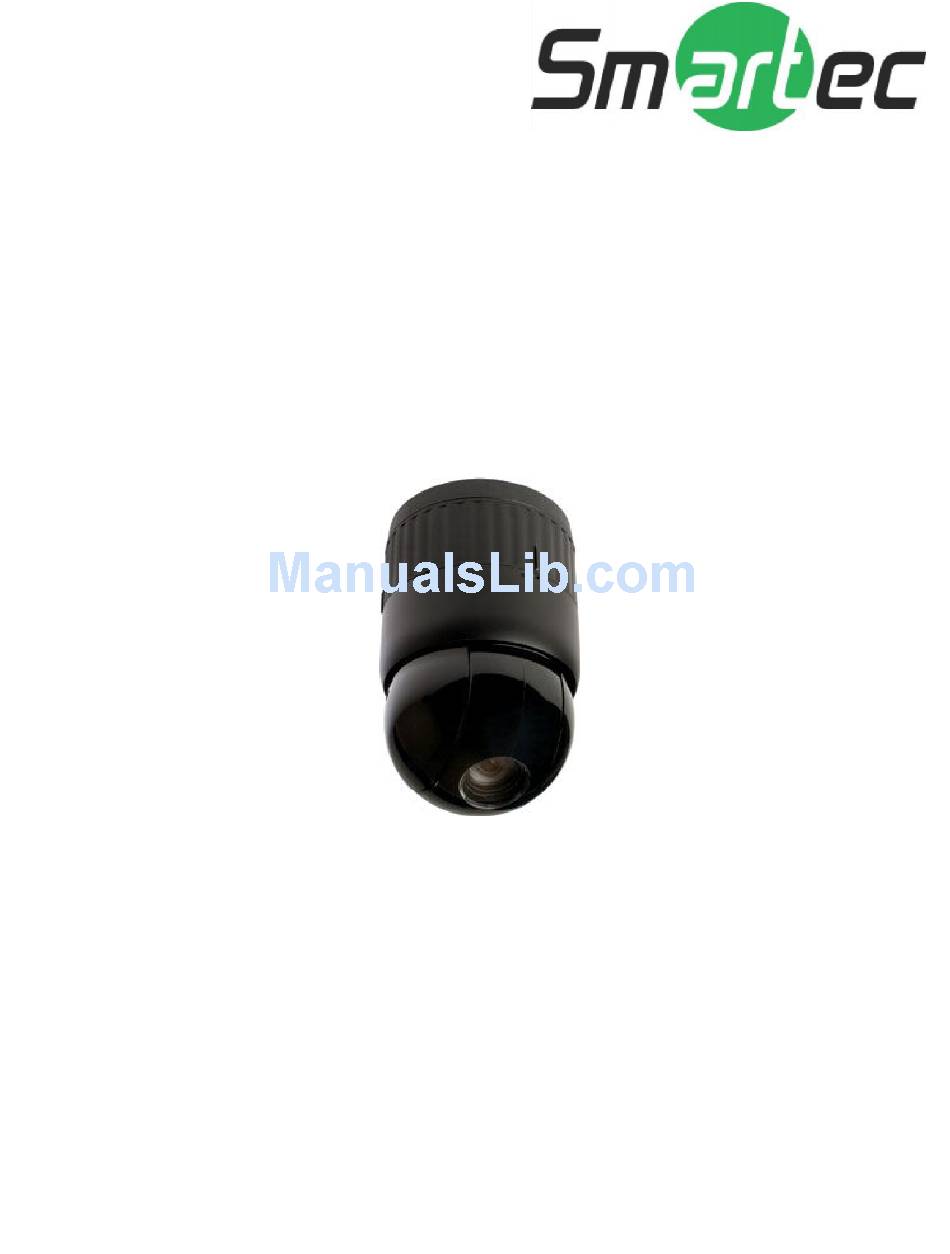

Smartec STC-3900
Day/Night Speed Dome Camera

User Manual

www.smartec-security.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-3900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartec STC-3900

  • Page 1: User Manual

    Smartec STC-3900 Day/Night Speed Dome Camera User Manual www.smartec-security.eu...
  • Page 2: Warnings And Cautions

    Warnings and Cautions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 5: Table Of Contents

    Table of Contents Chapter 1 — Introduction......................1 1.1 Features............................1 Chapter 2 — Installation and Configuration ................3 2.1 Package Contents ..........................3 2.2 Basic Configuration of Fastrax II E Dome Camera System ..............4 2.3 Setting Dome Camera Termination ....................5 2.4 Setting Dome Camera Address (ID) ....................7 2.5 Setting Dome Camera Protocol.......................8 2.6 Connections ...........................9 Connecting to the RS-485/ 422......................9...
  • Page 6 Language Setup..........................Home Function Setup ......................... OSD Display ............................View Direction............................. Dome OSD Display..........................Area Display ............................View Angle Setup..........................Panning Range ........................... Flip ..............................Tilt Over Angle ............................ Initialize Data ............................Origin Offset............................Dome Reset ............................System Information ..........................Appendix A —...
  • Page 7: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features The Fastrax II E dome camera and the Fastrax II Keyboard Controller make up the building blocks for any surveillance/security system. Using multiple Keyboard Controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.
  • Page 8 UP TO 255 M ULTIPLEX ER Alarm Input UP TO 8 <Sensor> UP TO 99 DVR <Siren> Alarm Output UP TO 4 <Flashing Light> UP TO 32 CAM ERA J- box M aster Keyboard Figure 1 – Typical System Configuration push bubble ring ass'y remove camera window...
  • Page 9: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents The package contains the following. Fastrax II E (Dome Camera) ………………………1 Bubble Ring ………………………1 Instruction Manual (This Document) ………………………1 Assembly Screws for Attaching Fastrax II E ………………………3 Plastic Anchor ………………………3 10Pin Connector ………………………1 12Pin Connector ………………………2...
  • Page 10: Basic Configuration Of Fastrax Ii E Dome Camera System

    2.2 Basic Configuration of Fastrax II E Dome Camera System J-BOX DOME POWER RS485(+) DOME1 + RX+(TX+) AC 24V RS485(-) DOME1 - RX-(TX-) STP AWG # 22 ALARM OUTPUT ALARM INPUT POWER AC 24V SENSOR ALARM INPUT UP TO 8 FGND (RX+) (RX+)
  • Page 11: Setting Dome Camera Termination

    The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes. The system should be installed according to Figures 4 through 9. Termination Switches KSD02H Address(ID) and Protocol selection Switches Figure 5 –...
  • Page 12 Figure 7- Termination Diagram...
  • Page 13: Setting Dome Camera Address (Id)

    2.4 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address match the multiplexer port number. If you want to set the address more than 999, you should contact the service provider. Example: Port 1 = Dome 1, Port 2 = Dome 2 …...
  • Page 14: Setting Dome Camera Protocol

    2.5 Setting Dome Camera Protocol If a dome camera is to be installed with a Fastrax keyboard controller, select F2 protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. UNCTION NTSC S4-1 Enable Disable Alarm...
  • Page 15: Connections

    2.6 Connections • Connecting to the RS485/ 422 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex, RS422 duplex or simplex serial communications signals. Connect Marked Rx+, Rx- to Tx+ and Tx- of the RS485 control system. If control system is RS422, connect Rx+(Tx+), Rx+(Tx-) and Rx+, Rx- of the dome camera to Tx+, Tx- and Rx+, Rx- of the control device respectively.
  • Page 16 RAM TEST CHECK NO. : OK! CHECK AAAA : OK! CHECK 5555 : OK! FASTRAX II E Vx.xxx CAMERA TYPE xxxx WAIT DOME SETTING. INIT TILT ORGIN SET OK INIT PAN ORGIN SET OK INIT CAMERA SET OK PRESET No. CAMERA TITLE 001 PRESET PRESET TITLE...
  • Page 17: Chapter 3 - Program And Operation

    Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM Example: Pressing 1 , 0 and CAM key sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller.
  • Page 18: How To Control On-Screen Menu Utility

    3.3 How to control the On-Screen Menu Utility Action Function MENU Call the On-screen menu utility Go into the sub-menu items. Execute the command(exit) Joystick left or right Change value. Navigate through the menu items. Joystick up or down Navigate through the menu items. Joystick down Finish editing title.
  • Page 19 1. Press the SCAN key to enter Auto Scan menu directly. Or press the MENU key to display the main menu on the monitor. Scroll to Auto Scan and push the Joystick to the right. 2. Select an Auto Scan number by pushing the Joystick left or right. 3.
  • Page 20: Preset

    If you need to view specific places routinely, you should program presets. A preset is a programmed video scene with automatic pan, tilt, zoom, focus and iris settings. Once programmed, entering the number and pressing a Preset button on your controller automatically calls up the preset.
  • Page 21: Shortcut Preset Program

    6. Enter the title for the preset position using the Joystick. (Rotate handle clockwise and counterclockwise or press Tele or Wide Key to scroll through the alphanumeric characters, push the handle to right or left to select next or previous digit.) 7.
  • Page 22 TOUR 01:xxxxxxxxxxxxxxxx SCAN TYPE:NORMAL === === 003 === === === === A08 === === === === === === === T02 === 001 === === === === === === T08 === === === === === === === === === === === === === === === === === SAVE AND EXIT(ESC TO CANCEL) PRESS FUNCTION KEY AND ROTATE JOYSTICK TO SELECT NUMBER.
  • Page 23: Pattern

    NOTE: Press the Home key at a programmed position to delete programmed function. In the Tour mode, in conjunction with preset and Auto Scan, you can make the camera travel from a preset position to another preset position at a specific speed. Example: Preset 001>002>003>004>005>006, Auto Scan 01 starts at preset 002, ends at preset 003, Auto Scan 02 starts at preset 005, ends at preset 006;...
  • Page 24: Alarm

    NOTE: If total recording time reaches 240 seconds, it will automatically stop for a moment and restart recording. Previous data will be overwritten. 3.9 Alarm (This menu shows on only specific model, Fifth Item of Main menu) ALARM SETUP NO PRI PRS IN OUT HLD LATCH 001 OFF OFF A01 OFF OUT1 3...
  • Page 25: Area Title

    Enter a specific name on programmed angle between START and END. For the screen below, when the camera points at an angle between 124.3° to 359.5°, ABC will be displayed on the screen. AREA TITLE SETUP TITLE START 01 ABC 124.3 359.5 02 xxxxxxxxxxxxxxxx ===== ===== 03 xxxxxxxxxxxxxxxx ===== =====...
  • Page 26: Privacy Zone

    PRIVACY ZONE SETUP TITLE METHOD 01 xxxxxxxxxxxxxxxx BLOCK 02 xxxxxxxxxxxxxxxx V.OFF 03 xxxxxxxxxxxxxxxx NONE ==== 04 xxxxxxxxxxxxxxxx NONE ==== 05 xxxxxxxxxxxxxxxx NONE ==== 06 xxxxxxxxxxxxxxxx NONE ==== 07 xxxxxxxxxxxxxxxx NONE ==== 08 xxxxxxxxxxxxxxxx NONE ==== SAVE AND EXIT(ESC TO CANCEL) 1.
  • Page 27: Focus Control

    3.12 Camera (Eighth Item of Main menu) NOTE: The menu features will vary depending on the camera module installed in your dome camera. CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL LINE LOCK CONTROL SHARPNESS : 10 BACK LIGHT : OFF DIGITAL ZOOM : OFF (MAX) NIGHT SHOT CONTROL...
  • Page 28: Wb (White Balance) Control

    • WB (White Balance) CONTROL WB SETUP MODE R GAIN : B GAIN : EXIT(ESC TO EXIT) MODE AWB / WAWB / INDOOR / DOUDOOR / MANUAL WAWB Wide range auto white balance mode. RGAIN 0 ~ 255 BGAIN 0 ~ 255 Use the AWB mode for normal use.
  • Page 29: Line Lock Control

    • LINE LOCK CONTROL LINE LOCK SETUP MODE INTERNAL PHASE : EXIT(ESC TO EXIT) MODE INTERNAL / EXTERNAL Adjusts phase of picture with other PHASE 0~255 cameras in EXTERNAL mode. EXIT (ESC TO EXIT) • NIGHT SHOT MENU The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared.
  • Page 30: Dome Setup

    3.13 Dome Setup (Ninth Item of Main menu) CONFIGURATION MENU LANGUAGE SETUP HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM INFORMATION EXIT(ESC TO EXIT) • LANGUAGE SETUP LANGUAGE SETUP LANGUAGE : ENGLISH SAVE AND EXIT(ESC TO CANCEL) LANGUAGE : Select the language you want.
  • Page 31 Follow these steps to program the Home position: 1. Press MENU to display the main menu on the monitor. 2. Select Home Function by pushing the Joystick to the right or to the left to scroll through the None, Tour, Pattern, Auto Scan and Preset functions. 3.
  • Page 32 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : ON TILT OVER ANGLE : W/O BUBBLESAVE AND EXIT(ESC TO CANCEL) • PANNING RANGE When the dome camera is installed near a wall, panning range can be limited by user. PANNING RANGE SETUP RIGHT LIMIT : 000.0 LEFT LIMIT...
  • Page 33: Camera

    • INITIALIZE DATA INITIALIZE DATA FACTORY DEFAULT ERASE PROGRAMMED DATA EXIT(ESC TO EXIT) Erase all stored data from the Flash-ROM of the selected dome camera. You will be asked to enter Yes or No. If you intend to erase all data then press the MENU key, otherwise press the ESC key to exit without erasing.
  • Page 34 Appendix A — Specifications Camera Image Sensor 1/4" Super-HAD Color CCD NTSC : 768 x 494 Approx. 380K pixels Picture elements : 752 x 582 Approx. 440K pixels Horizontal Resolution 480 / 470 lines (NTSC / PAL) 22x optical zoom with auto focus Lens 11x digital zoom F1.6 to F3.6, f=3.9mm to 85.8mm...
  • Page 35 Pattern Four patterns, 240 second On-Screen Display Displays camera ID and area name on screen Environment Operating temperature 0°C to 50°C (32°F to 122°F) Operating humidity 0 to 90%RH (non-condensing) Storage temperature -20°C to 60°C (4°F to 140°F) Specifications are subject to change without notice. Figure 10 –...
  • Page 36 Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of...
  • Page 37: Home Position

    Appendix C — Glossary Alarm Actions The assigned responses for the dome camera when inputs change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for each of the four dome inputs. The dome may also send alarm states to the host controller for processing. See also Input and Normal Input State.
  • Page 38 IR Mode A feature of the camera that permits manual or automatic switching between color and IR (black-and-white) operation. When IR mode is active, clearer images may be obtained under low-light conditions. Line Lock Allows you to phase lock the video with the AC power line. When line lock is enabled, it prevents vertical video rolling when switching multiple cameras to a single monitor.
  • Page 39: Privacy Zones

    Privacy Zones Masked areas of the dome camera's viewing area. These masks prevent operators of the surveillance system from viewing these designated zones. The Privacy Zones move in relation to the dome camera’s pan/tilt position. In addition, the apparent size of the Privacy Zone adjusts automatically as the lens zooms in or out.
  • Page 40 Appendix D — Short Cut Key Short Cut Key Function PRST Pop up preset setup menu. TOUR Pop up guard Tour setup menu. PTRN Pop up Pattern setup menu. SCAN Pop up Auto Scan setup menu. NO.+ PGM +PRST Store the current view at the selected number. 1 ~ 4 + ON Turn On Relay.
