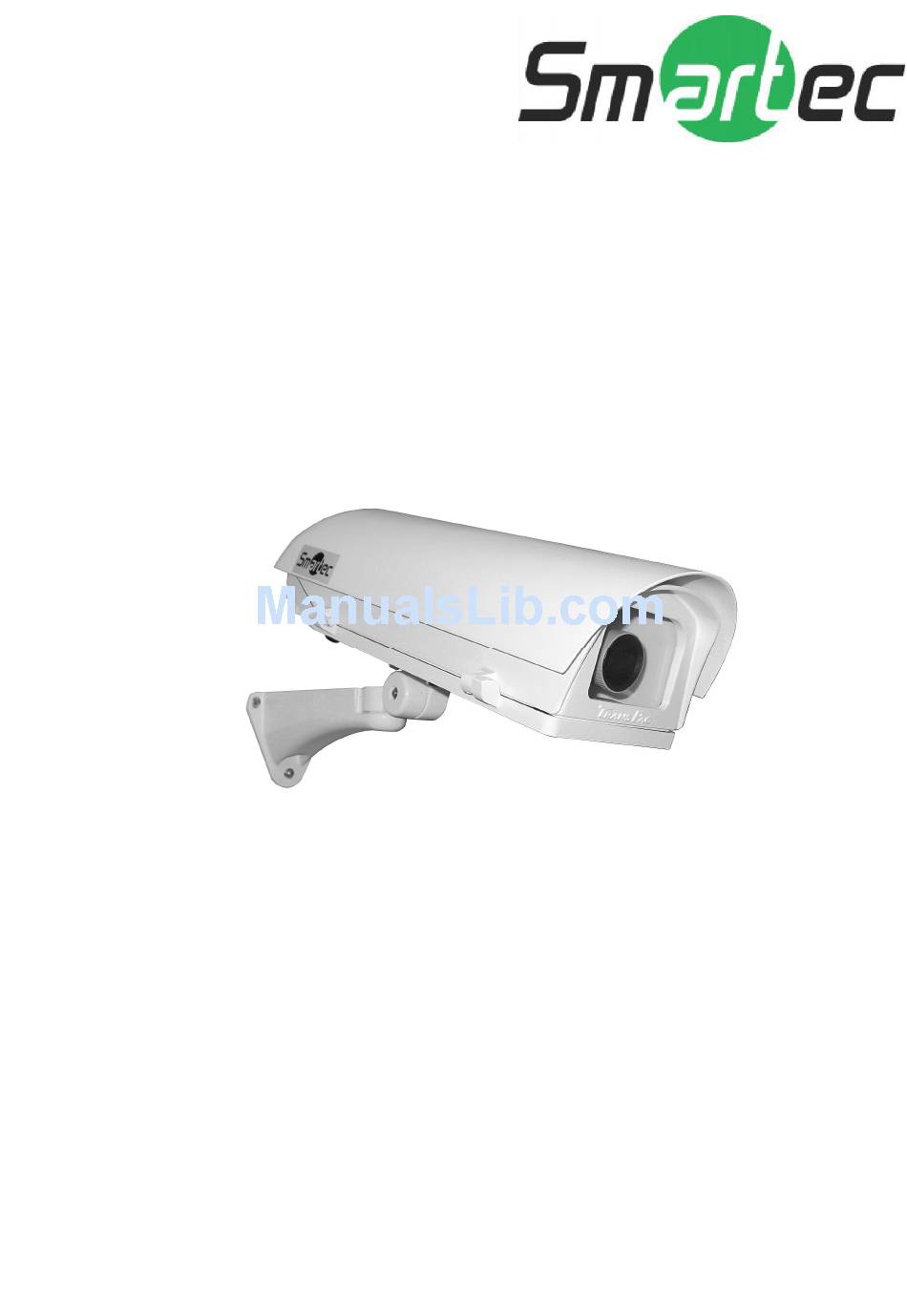

Smartec – STH 3230 Outdoor camera housing User Manual www.smartec-security.eu... - Page 2 I. Introduction The STH-3230 Series Camera Housing is constructed by die-cast aluminum alloy with powder coated finished and equipped with adjustable BR-16 (Semi-Cable Managed) Mounting Bracket. The Product is CE certified, owns IP 67 or IP 44 environmental protection level and conform with RoHS regulations. II.
- Page 3 IV. Wiring Diagram Inside the internal wiring diagram of STH-3230 Series for the window demister. A spare 6 way terminal block is provided at the rear of the housing for the camera when necessary and lens connections. Circuit identified as follows: TB.1 6 way terminal block...
- Page 4 *First heater prevents moisture on the window glass till weather temperature -25 , second heater is heating in housing for camera operation properly till weather temperature -40 **With 12Vdc camera jet...
