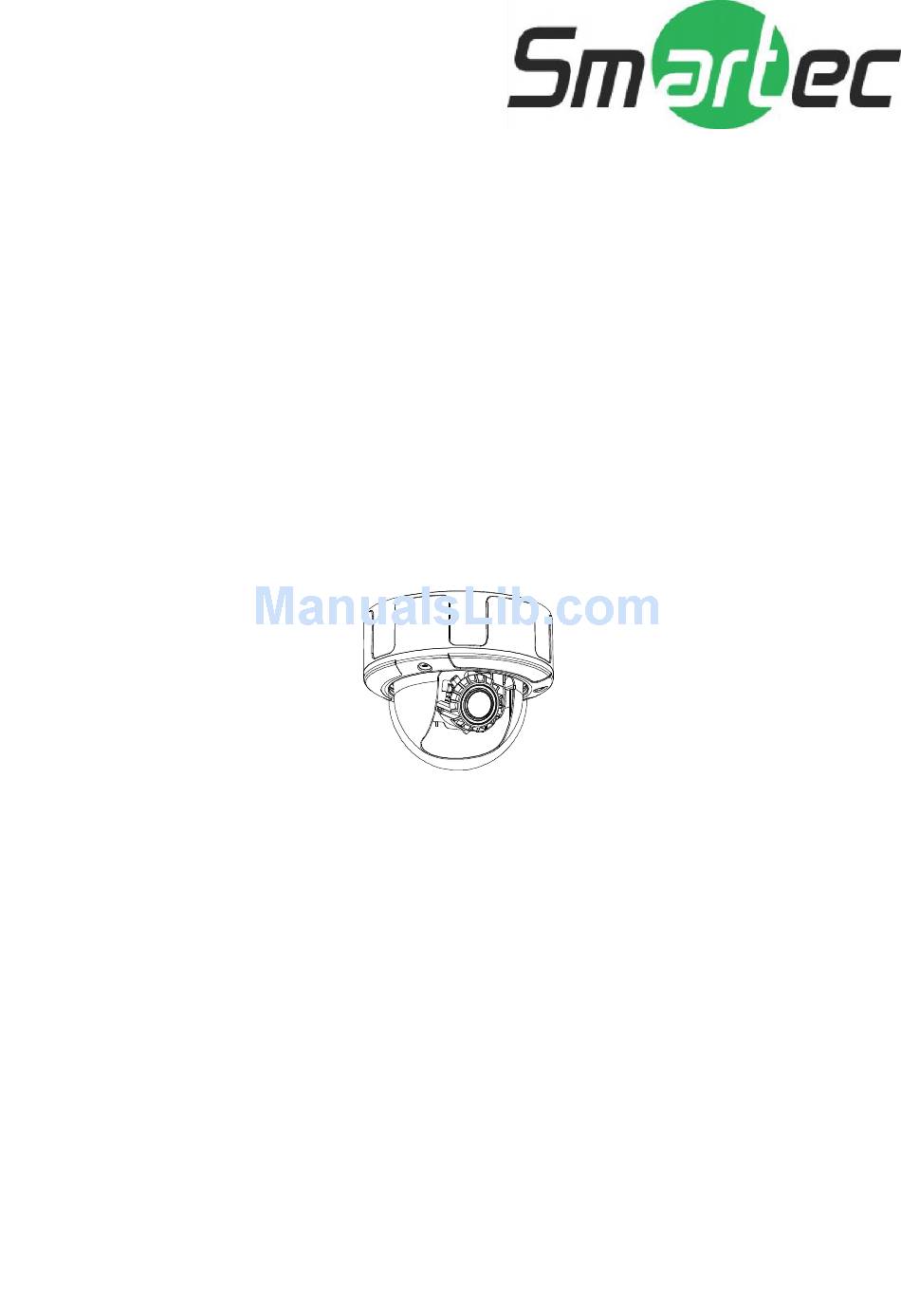

- Page 1 1/3” D/N Color Vandal Proof Dome Camera Smartec STC-3502 USER’S MANUAL www.smartec-security.eu...
- Page 2 FEATURES 1. Lead (Pb) Free RoHS Compliance 2. Digital Signal Processor: SONY HQ1 3. Vandal proof and IP66 water proof level 4. Long life and high reliability are achieved by the use of a CCD image device. 5. Ease of use in any application is achieved. 6.
- Page 3 CAUTION 1. Never point the camera toward the sun Do not expose the lens directly to the sun or to strong light as this may damage the pick-up device. 2. Handle this camera with care Avoid any shock of the camera. Improper handling could damage the camera.
-
Page 4: Specification
SPECIFICATION TV System NTSC Image Sensor 1/3” SONY Super HAD CCD SONY HQ1 Number of Total Pixel 795(H)x596(V) 811(H)x508(V) Synchronizing System Internal Resolution 540TV Lines 0.05 Lux@F1.2 Minimum Illumination Color mode automatically switches to B/W mode under 2 Lux S/N Ratio More than 48 dB (AGC OFF) Auto Gain Control ON / OFF (switchable) - Page 5 DIMENSIONS (Unit: mm) NOMENCLATURES AND FUNCTIONS LE VEL Col or...
-
Page 6: Control Switches
1. FAR/NEAR 2. WIDE/TELE 3. DC LEVEL The VR for adjusting the IRIS level of Auto Iris lens. 4. CONTROL SWITCHES Switch 1. D/N: Day & Night Switch COLOR / D/N switch. D/N: Color mode automatically switches to B/W mode under 2 Lux COLOR: Normal position. - Page 7 Switch 3. AGC: Automatic Gain Control. AGC / OFF switch. AGC level of gain varies from 0 to 26dB. OFF: AGC OFF. The level of gain is fixed at 0dB. Switch 4. FL: Flickerless. F.L / NOM switch. In FL mode, the shutter speed is 1/100sec. (NTSC system) / 1/120sec.
-
Page 8: Standard Installation
STANDARD INSTALLATION To mount the camera directly on the ceiling: (1). Drill ф25mm hole on the ceiling for video and power connector cable to pass through. (2). Take off the dome cover from the camera. Use specified holes inside the camera base for installation. - Page 9 (4). Adjust pan/tilt/rotation until the image is satisfied. After adjustment of the camera, put the cover on.
- Page 10 WATERPROOF INSTALLATION (1). There are two conduit holes, one is at the dome bottom and the other one is at the side of camera with plug. Take off the dome cover and remove the plug from the side of the camera. (2).
-
Page 11: Installation With Bracket
(4). Take a pipe and make the cables go through the pipe to avoid exposing the cables. (5). Attach the pipe to the pipe connector and fasten it. INSTALLATION WITH BRACKET STB-C403 (WALL MOUNT INSTALLATION) 1. Fix the bracket on the wall by using 4 screws as shown in Figure 1. - Page 12 2. Fasten the metal plate on the top of the camera by 3 screws. (Fig2) 3. Use 4 screws to mount the camera to the bracket as shows in Figure 3. Fig3. 4. Then the wall mount installation is finished as Fig4. Fig4.
- Page 13 STB-C504 (CEILING MOUNT INSTALLATION) 1. Fix the base holder to the camera by 3 screws and 3 spacers as shown in Fig5 Fig5. 2. Use a screw driver (counter-clockwise) to fasten the base holder on ceiling (ψ184) as Fig6 shows. Fig6.
- Page 14 4. Then the ceiling mount installation is finished as Fig8. Fig8.
