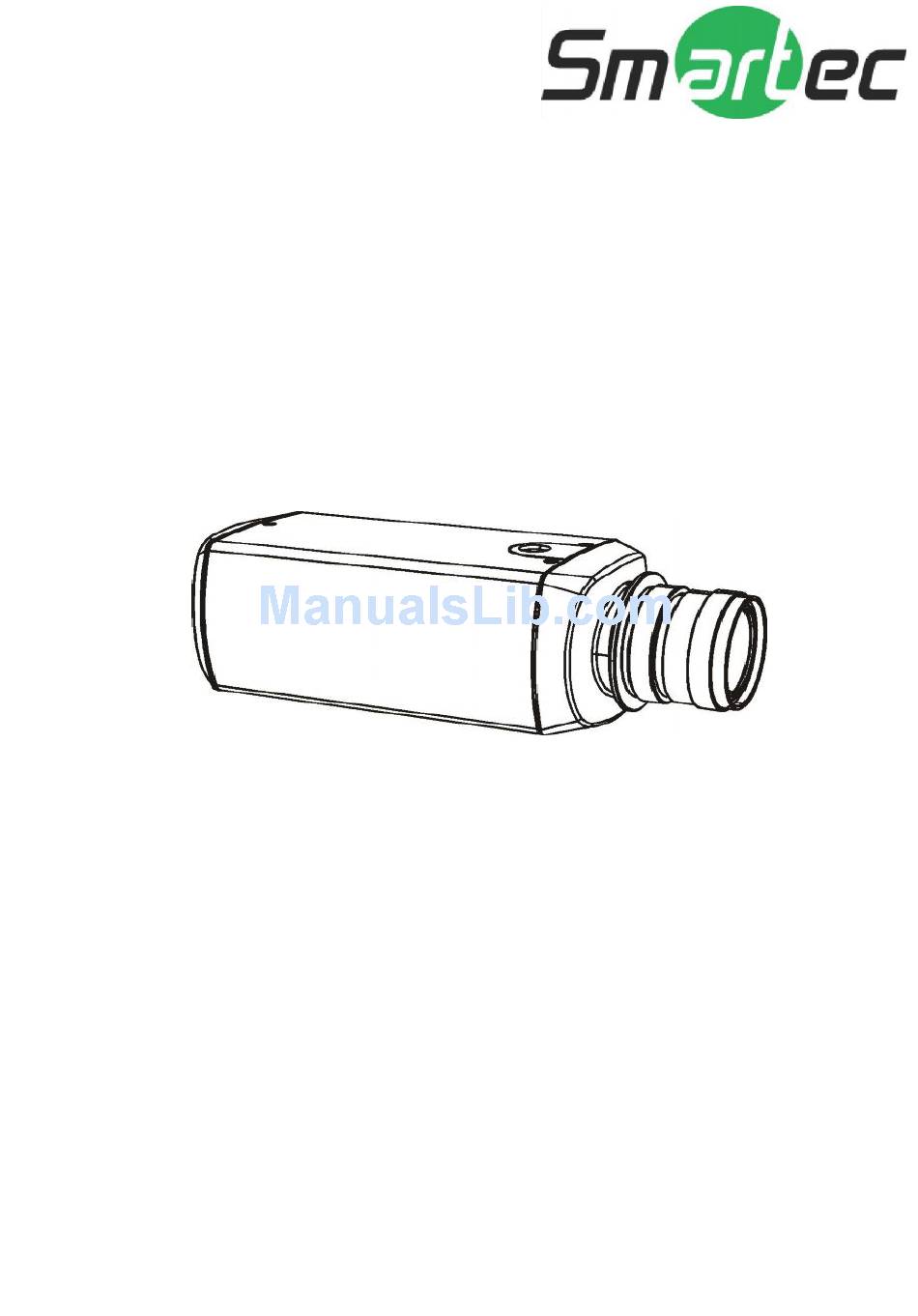

- Page 1 BLACK & WHITE CAMERA 1/3” INTERLINE TRANSFER CCD HIGH RESOLUTION Smartec STC-1000 USER’S MANUAL www.smartec-security.eu...
-
Page 2: Warnings And Cautions
WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS READ AND RETAIN INSTRUCTIONS GROUNDING OR POLARIZATION Read the instruction manual before Equipment that is powered through a operating the equipment. Retain the polarized plug (a plug with one blade manual for future reference. wider than the other) will fit into the power outlet only one way. - Page 5 13. DAMAGE REQUIRING SERVICE 14. REPLACEMENT PARTS Unplug the equipment from the wall outlet When replacement parts are required, be and refer servicing to qualified service sure the service technician uses personnel under the following conditions: replacement parts specified by the manufacturer or that have the same When the power supply cord or the characteristics as the original part.
-
Page 6: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ................1 SYSTEM INSTALLATION ............2 CAMERA OVERVIEW ..............4 MANUAL IRIS LENS ADJUSTMENT..........7 VIDEO AUTO IRIS INSTALLATION & ADJUSTMENT ....11 DC AUTO IRIS LENS INSTALLATION & ADJUSTMENT ...13 BACK FOCUS ADJUSTMENT ...........14 ZOOM LENS BACK FOCUS ADJUSTMENT......15 TROUBLESHOOTING AND MAINTENANCE ......16 SPECIFICATIONS..............18... - Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 8: Introduction
BLACK & WHITE CAMERAS HIGH RESOLUTION INTRODUCTION BLACK AND WHITE CAMERA The High resolution black and white security cameras provides quality images for use in closed circuit television (CCTV) and security surveillance applications. Features: High performance 1/3” Interline Transfer CCD : BW •... -
Page 9: System Installation
SYSTEM INSTALLATION Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Perform the following steps to install the camera. Remove all components from the package and identify the items that will be used during installation. - Page 10 Plug the other end of the cable into the video input port on the back of the monitoring device. On 24V AC models: Connect a two-conductor power cable from the power supply to the 24V AC input on the back of the camera. 24V AC CLASS 2 “Use of Listed Class 2...
-
Page 11: Camera Overview
BLACK and WHITE (B/W) CAMERA OVERVIEW SIDE VIEW C Mount Ring Back Focus Lock Screw ( C MOUNT LENS ) ( CS MOUNT LENS ) Camera Mounting Bracket Back Focus Ring BACK VIEW (24V AC) BACK VIEW (230V AC) Power LED V. - Page 12 Back Focus Ring This ring is used to adjust the back focus length (distance between the CCD and the back of the lens) by rotation of the ring in a clockwise or counter-clockwise direction. Back Focus Lock Screw The lock screw locks the back focus ring after adjusting. Auto Iris Lens Connector The auto-iris lens connector supplies either a video signal or DC control signal to an auto iris lens.
- Page 13 PHASE Adjustment Phase adjustment is used in a multi-camera system when power is supplied from different sources, causing the cameras to be out of phase. This situation affects the auto-switching of the camera by causing a vertical flip or roll during the switch interval. The vertical phase adjustment allows the camera’s line lock sync to be adjusted from 0 to 300 degrees with reference to the zero line crossing of the AC power source.
-
Page 14: Video Auto Iris Installation & Adjustment
VIDEO AUTO IRIS INSTALLATION & ADJUSTMENT The camera supports video-type auto iris lenses which adjust to changing light levels. Perform the following steps to install and adjust a video-type auto iris lens. If necessary, solder the lens control wires to the connector supplied with the camera. - Page 15 Plug the connector from the lens into the auto iris jack on the back of the camera. The connector is polarized and can only be inserted into the jack one way. The E/I switch should be in the “OFF” position. The A/I switch should be in the “VID”...
-
Page 16: Dc Auto Iris Lens Installation & Adjustment
DC AUTO IRIS LENS INSTALLATION & ADJUSTMENT The camera supports DC-type auto iris lenses. Perform the following steps to install and adjust a DC-type auto iris lens. Solder the lens control wires to the connector supplied with the camera. Connector Cover Automatic Pin 3... -
Page 17: Back Focus Adjustment
The E/I switch should be in the “OFF” position. The A/I switch should be in the “DC” position. Apply power to the camera. Adjust the auto iris lens for an optimum picture using the LEVEL control on the back of the camera. BACK FOCUS ADJUSTMENT For best results, perform back focus adjustments at night or while using a #6 or #8 welders glass in front of the lens. -
Page 18: Zoom Lens Back Focus Adjustment
ZOOM LENS BACK FOCUS ADJUSTMENT The objective of back focusing a zoom lens is similar to that of a fixed focal length camera except the back focus is also adjusted to maintain the focus when “zooming” the lens in and out on a scene. Choose an object at the farthest range set for viewing with a zoom lens. -
Page 19: Troubleshooting And Maintenance
TROUBLESHOOTING AND MAINTENANCE Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. - Page 20 THIS PAGE INTENTIONALLY LIGHT BLANK.
-
Page 21: Specifications
SPECIFICATIONS : ( BLACK and WHITE CAMERA ) Power Power source 24V AC, 60Hz or 24V AC, 50Hz or 230V AC, 50Hz or 12V DC Power consumption Max. 4.5 W at 24V AC Max. 5.0 W at 230V AC Sensor Information Image sensor 1/3”...
