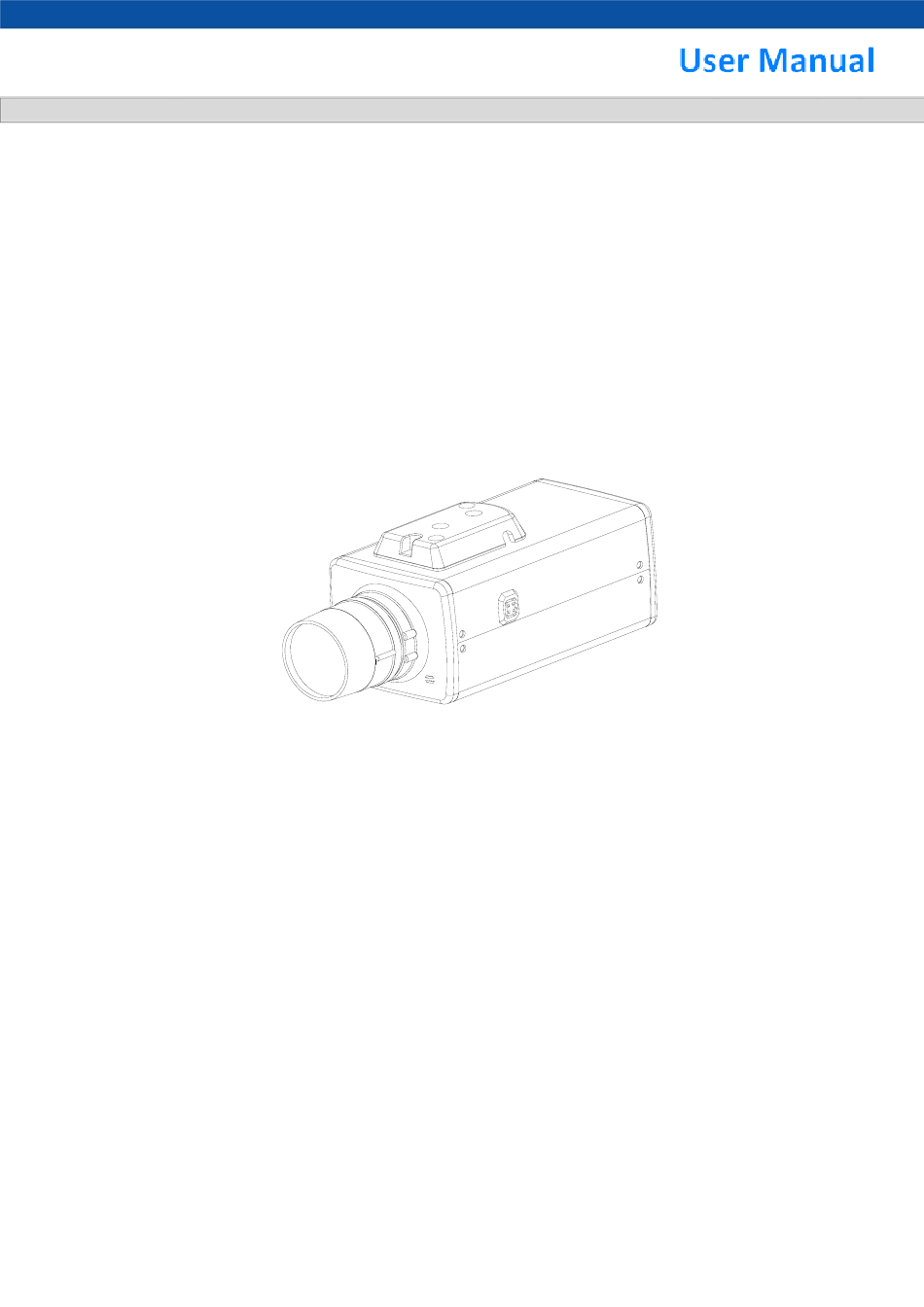

- Page 1 3.0 Megapixel Day & Night Box IP Camera STC-IPM3097A/1 Thanks for purchasing our product. Before operating the unit, please read the instructions carefully and keep this manual for future reference.
- Page 2 Safety Warning 1. Read this manual carefully before installing the unit Please read this manual first for correct installation and operation. 2. Never install the camera on a ceiling that cannot hold its weight The product may fall down and cause damages. 3.
- Page 3 10. Cleaning Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 11. Never disassemble the camera nor put impurities in it Disassembly or impurities may result in trouble or fire. 12.
-
Page 4: Table Of Contents
Table of Contents 1. CAMERA ....................................1 1.1 F ................................... 1 EATURE 1.2 L ................................1 IST OF ONTENTS 1.3 S ..............................1 YSTEM EQUIREMENTS 1.4 S .................................. 2 PECIFICATION 1.5 D ..................................3 IMENSIONS 1.6 C ................................4 AMERA VERVIEW 1.7 I .................................. -
Page 5: Camera
1. CAMERA 1.1 Feature Sony 1/2.8” EXmor™ 3.0 MP Progressive CMOS Sensor Super Low Lux, Color:0.1Lux@F1.2, B/W:0.01Lux@F1.2 Sense Up:0.001Lux@F1.2 Compression: H.264, MPEG-4, M-JPEG (Triple-code Encoder) Highest Resolution: 2048x1536@20fps, H.264/High-Profile Bit Rate Transmission up to 16,000 Kbps ... -
Page 6: Specification
1.4 Specification Image Sensor Sony 1 / 2.8" 3.0 Megapixel Progressive Exmor™ CMOS VIDEO Highest Resolution QXGA (2048x1536) Video Resolution 2048x1536, 1920x1080, 1280x1024, 1280x960, 1280x720, 720x480 Video Frame Rate 2048x1536@20fps, others up to 30fps Video Compression H.264, MPEG4, M-JPEG 2048x1536(20fps) , Other resolutions (H264 or MPEG4) Up to 30 fps for All Video Frame Rate Video Profile Minimum Illumination... -
Page 7: Dimensions
1.5 Dimensions IRIS (Size in mm) 120110-XE3423NEO-0475-V2.0-V1a... -
Page 8: Camera Overview
1.6 Camera Overview 1. Side View (Auto IRIS) Auto IRIS Pin (1) CON- (2) CON+ (3) DR+ (4) DR- 2. Mount Adaptor Mount Adaptor ① Mount adaptor can be attached to the top of the camera (for hanging) ② Mount adaptor can be attached to the bottom of the camera (for bracket) ③... - Page 9 4. Rear View LAN / PoE Audio/Video Out (RJ-45) Power 12V DC Function Switch Micro SD / Reset Switch SDHC Mini USB Video Out (BNC) DI / DO Power / LAN ■ Function Switch: (1) STATIC IP: Fixed IP (2) DHCP: DHCP Floating IP (3) DC IRIS: Auto IRIS (DC Driver Lens) (4) AES: Fixed Lens ■...
-
Page 10: Installation
1.7 Installation 1. Installation Flow Chart START Power Type Check the power of PoE Plug the Power Adapter Connect the RJ-45 LAN cable to the IP Turn on the PC/NB and log-in Windows IP setting for PC/NB (Please see the suggested IP address) Disable the anti-virus software and firewall Run IE browser (IE 8.0 or above) http://192.168.1.168... -
Page 11: Direct Link (Case 1)
2. Direct Link (Case 1) (1) Plug the power adapter to IP CAM. (2) Run the IE browser with http://192.168.1.168 (3) When the log-in window pop-up, please input the User Name and Password. (4) Whenever the connection is ready, the main page (setting window) of IP CAM will show on. Adapter DC12V Cat-5 LAN cable... -
Page 12: User Interface
2. USER INTERFACE 2.1 Login 1. Start the browser, and input http://192.168.1.168/ in the address field, then press Enter. (PS: The shown screen is in Microsoft Windows 7 English platform.) 2. Enter User Name and Password In the prompt window, and click OK. The default User Name and Password is admin and 9999. -
Page 13: Interface Overview
2.2 Interface Overview After login to the system, the screen will be displayed as below: There are many function buttons on the left side. They are as the table below. All of the function buttons and its details will be shown on the following sections. Live View Video Image... -
Page 14: Live View
1. Live View Main page. Display the image captured by the camera. Language: English / 日本語(Japanese) / 繁中(Traditional Chinese) / 簡中(Simplified Chinese) Full Screen Snapshot Folders Information Web View Upload Audio On Audio Off 120110-XE3423NEO-0475-V2.0-V1a... -
Page 15: Video
2. Video IP (Internet Protocol) video settings of the camera. Modify the settings of IP stream type, streams and local display. NOTE: Once the change completed, click Submit to save the settings. Stream Type Video Streams Single / Dual / Tri-stream Codec Profiles H.264 + MPEG4 + MegaPixel JPEG H.264: 720P, H.264: D1, H.264: SXGA, H.264:1080P, H.264:... - Page 16 H.264 Frame rate 1 / 3 / 5 / 10 / 15 / 20 / 25 / 30 fps Bitrate 4000 Kbps Rate Control OFF / VBR / CBR Local Display Local Display OFF / NTSC / PAL / HD720P Rotation OFF / HORIZONTAL / VERTICAL / BOTH Format...
-
Page 17: Image
3. Image Modify the settings of image, OSD and advanced image settings. Image Brightness 0 ~ 255 (Default 128) Contrast 0 ~ 255 (Default 128) Saturation 0 ~ 255 (Default 128) Sharpness 0 ~ 255 (Default 128) DeNoise 0 ~ 255 (Default 128) EV Compensation 0 ~ 255 (Default 128) Load Default... - Page 18 Advanced Settings Auto IRIS Manual / Auto Flicker Control 60hz NTSC / 50hz PAL AUTO_WIDE / AUTO_NORMAL / SUNNY / SHADOW / White Balance INDOOR / LAMP / FL1 / FL2 Back Light Compensation Off / On Back Light Level Min / Mid / Max WDR Enhancement Off / On...
-
Page 19: Audio
4. Audio Modify the settings of audio. Audio Enable Audio Enable / Disable Audio Mode MIC / SPEAKER / BOTH Input volume 0~100 Sample Rate 8KHz / 16KHz Bitrate Auto / 64Kbps Output Volume 0~100 (NOTE: The content may vary by models) 120110-XE3423NEO-0475-V2.0-V1a... -
Page 20: Datetime
5. DateTime Modify the settings of date and time. DateTime Set Manual Date Manual set the date and time Sync Current PC Date Synchronization the date and time with current PC Sync with SNTP Server Synchronization the date and time with SNTP Server Date Format / Position Select the format and position of date Time Format / Position... -
Page 21: Network
6. Network Modify the settings of network and IP address. DHCP Use DHCP Use DHCP for connection Static IP Use static IP for connection PPPoE Use PPPoE for connection Multicast Enable Multicast Enable / Disable H264 Main /Sub Port Communication port for H.264 MPEG4 Main / Sub Port Communication port for MPEG4 MJPEG Port... -
Page 22: Alarm
7. Alarm Modify the settings of alarm trigger and actions. Alarm Enable Alarm Enable / Disable Alarm Duration The duration time period of alarm DI1 / DO1 Level Alarm level of DI / DO Alarm Trigger Motion Motion trigger alarm (None support for single M-JPEG) Ethernet Loss Trigger alarm if Ethernet loss DI1 / DO1 Mode... -
Page 23: Storage
8. Storage Modify the settings of storage and files upload. Storage Upload via FTP File format for upload via FTP Local Storage Save File format for save files Schedule Scheduling the storage for every week 120110-XE3423NEO-0475-V2.0-V1a... -
Page 24: Maintain
9. Maintain Maintain the user name, password and update the firmware. Maintain Current Version Current version of the firmware Mac Address Mac address assigned by production Firmware Update Update the firmware IP CAM Restart Reboot this IP camera Name / Password Change the login User Name and Password Authority Change the authority level of users... -
Page 25: Ptz/Osd
10. PTZ/OSD Define the commands of PTZ(Pan/Tile/Zoom)/OSD. The default protocol is Pelco D and Pelco P. Use protocols other than Pelco D and Pelco P, define the commands in the field of Customer. General 0~255 Baud 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Pelco D / Pelco P Zoom 0~63...
