Smartec STC-IP2580 User Manual

Color ip dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

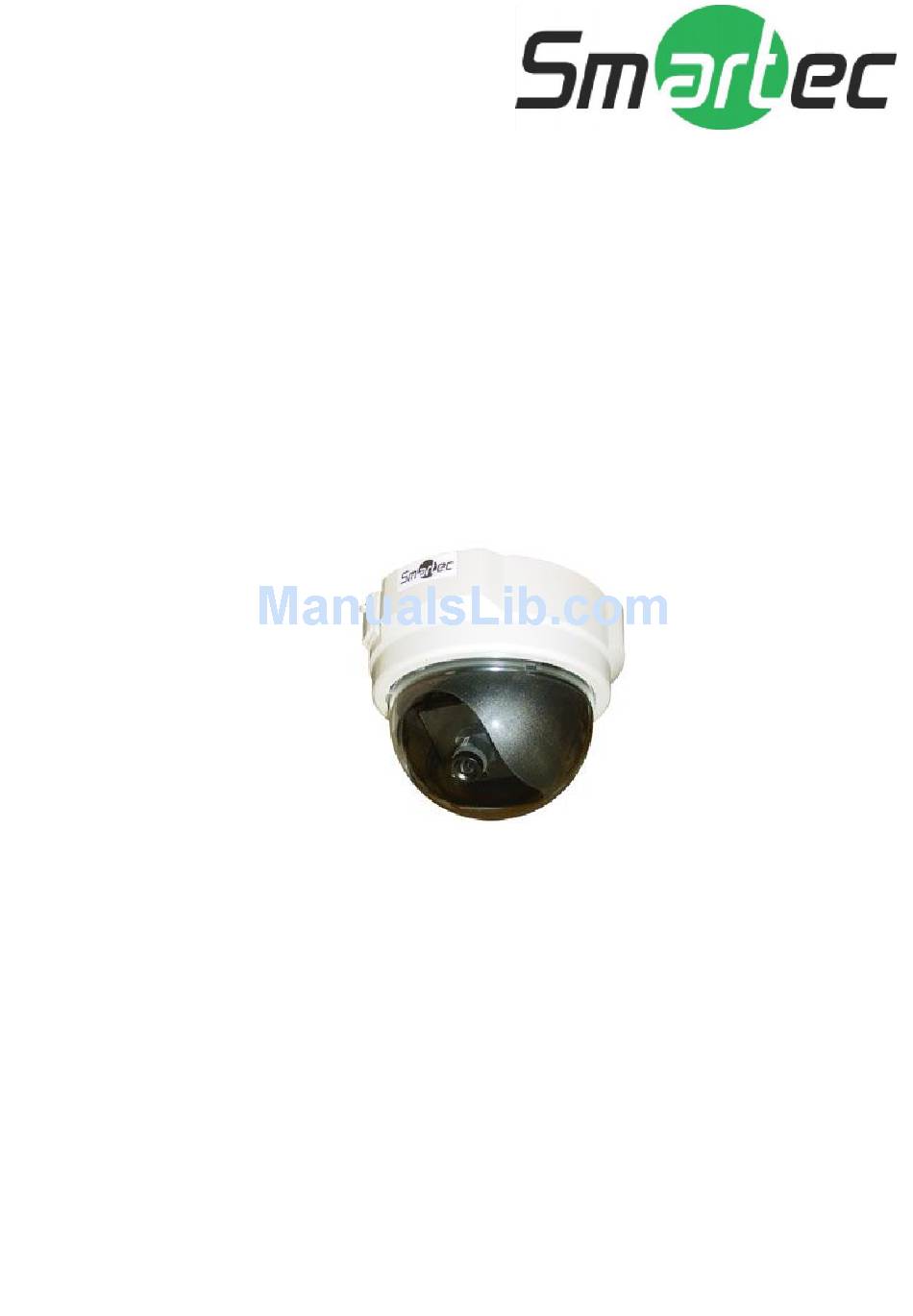

Smartec –
Color IP Dome Camera
STC-IP2580
Firmware User manual
www.smartec-security.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-IP2580 and is the answer not in the manual?

Questions and answers

Related Manuals for Smartec STC-IP2580

Summary of Contents for Smartec STC-IP2580

  • Page 1 Smartec – Color IP Dome Camera STC-IP2580 Firmware User manual www.smartec-security.eu...

  • Page 2: Table Of Contents

    Table of Contents INSTALLATION _______________________________________________ 1-1 Minimum System Requirements ___________________________________ 1-1 Preparation before setup _________________________________________ 1-2 1.2.1 Setup your PC network ________________________________________________ 1-2 Configuring the IP device_________________________________________ 1-7 1.3.1 Video Display _______________________________________________________ 1-9 1.3.2 PTZ (PT/TZ Camera only) ____________________________________________ 1-13 1.3.3 Host Setting ________________________________________________________ 1-18 1.3.4...

  • Page 3: Installation

    INSTALLATION 1.1 Minimum System Requirements Pentinum 4 2.4GHz and above Hard Disk 40 GB or above Memory 256 MB or above Operating System Windows XP with SP2 or above. IE6.0 SP2. IE7.0 only. Video Resolution SVGA or XGA with 1024x768 resolution...

  • Page 4: Preparation Before Setup

    1.2 Preparation before setup To configure your IP device, you have to use the Internet Explorer to login. Before that, your PC’s networks settings and the IP device’s IP address must be setup. Make sure all the connections are connected correctly, and then follow the procedures below to setup.
  • Page 5 The procedures below is the setup procedure of a PC using Windows XP as its OS. When running an OS other than Windows XP, please refer to the manual included with the OS. STEP1 Start up your PC. STEP2 Click the [Start] and select the "Control Panel"...
  • Page 6 STEP3 Double-click the "Network and Internet connections" icon. STEP4 Double-click the "Network connections" icon...
  • Page 7 STEP5 Click “Local Area Connections”, and then click “Change settings of this connection” in the network Task menu. STEP6 Click “Internet Protocol (TCP/IP)”, and then click the [Properties] button.
  • Page 8 STEP7 Click the “Use the following IP address” radio button and enter the IP address and the subnet mask. Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255. 0 (NOTE: xxx should be a number from 1 to 254, but 100 is excepted.) STEP8 Click the [OK] button and the window dialog box closes.

  • Page 9: Configuring The Ip Device

    1.3 Configuring the IP device This section describes how to configure the IP device. The product administrator has unlimited access to all setup windows and normal users can only watch the live image. The IP device is configured under a standard browser (Microsoft Internet Explorer 6.0 or above).
  • Page 10 Once successfully login, the “Video Display page” will be displayed as below.

  • Page 11: Video Display

    1.3.1 Video Display 1.3.1.1 Megapixel CMOS camera model This section tells you how to view live images via Internet Explorer. STEP1: Click the [Video Display] on the “Main Setup page”. The “Video Display page” is displayed as below. STEP2: Check the [MPEG4/MJPEG] to select the Compression type.
  • Page 12 out volume. Ex: while this function enabled you can talk to the people at the IP device site. STEP6: Click the [DO1] Button of trigger / dis-trigger DO function by DO1. STEP7: Click the [DO2] Button of trigger / dis-trigger DO function by DO2.
  • Page 13 1.3.1.2 (For PTZ CMOS camera) This section tells you how to view live images via Internet Explorer. Only root user can see this page. STEP1: Click the [Video Display] on the “Main Setup page”. The “Video Display page” is displayed as below. STEP2: Check the [MPEG4/MJPEG] to select the Compression type.
  • Page 14 function by DO1. STEP6: Click the [DO2] Button of trigger / dis-trigger DO function by DO2. STEP7: Click the [Quit] to exit the live view and return to “Main Setup page”. STEP7: Click the [PTZ] to Show “PTZ Control Window”. NOTE: If the streaming is disabled, you cannot see the live images here.

  • Page 15: Ptz (Pt/Tz Camera Only)

    1.3.2 PTZ (PT/TZ Camera only) This section tells you how to control the camera. Click the [PTZ] on the “Main Setup page” to show PTZ control panel. Select a page in “PTZ Panel ” There are three main pages, PTZ Preset Tour, to select. You also can control camera from preview display with mouse.
  • Page 16 Click each button to do pan and tilt control. PT Control Click this button of go to home function. Home Click this button of reset the pan/tilt/zoom function. Reset Click to start scan between left limit to right limit Auto-scan continuously.
  • Page 17 ■ Camera setting Parameters Description Show preset number and preset name. You can click to Preset Info edit the preset name Click this button to save current preset name and PTZ Set Preset position to this preset point Click this button to go to the “PTZ” position the preset Goto Preset point memorized.
  • Page 18 Click to apply the tour setting. Apply Click to adjust the sequence of this preset point by moving it up. Move Up Click to adjust the sequence of this preset point by moving Move Down it down. Click to adjust the sequence of this preset point by moving Move to top it to the top.
  • Page 19 ■ Camera setting Parameters Description Click area1 to P/T with fast speed Click area1 to P/T with normal speed Click area1 to P/T with slow speed Click area4 to do zoom in. Click area5 to do zoom out. Mouse wheel Use mouse wheel to do zoom in and zoom out.

  • Page 20: Host Setting

    1.3.3 Host Setting This section tells you how to setup IP device’s host settings and LAN settings. STEP1: Click the [Host Setting] on the “Main Setup page”. The “Host setting page” is displayed as below. STEP2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 21 ■ Network link speed & duplex Parameters Description This item lets you select the network transmission speed of WAN port. You can select from 1. Auto detect (default setting) 2. 100Mbps / Full duplex WAN port 3. 100Mbps / Half duplex 4.

  • Page 22: Wan Setting

    1.3.4 WAN Setting This section tells you how to setup IP device’s WAN, DNS server and DDNS server settings. STEP1: Click the [WAN Setting] on the “Main Setup page”. The “WAN setting page” is displayed as below STEP2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 23 ■ WAN Setting Parameters Description Click this to enable IP device’s DHCP function. Dynamic IP It will acquire its WAN port IP address from a DHCP server within the same network. (You must have a DHCP server in address order to enable this function.) Click this to manually enter the IP device WAN port IP address.

  • Page 24: Date Setting

    settings or click the [Reset] button to re-enter the parameters. NOTE: Check with your system administrator, if Client PC and IP device are setting in different VLANs, please connect to WAN port. NOTE: Once finished all settings, be sure to click the [Save Reboot] button, otherwise, some settings won’t take effect.
  • Page 25 STEP1: Click the [Date Setting] on the “Main Setup page”. The “Date setting page” is displayed as below STEP2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator. ■...
  • Page 26 End Time : Select the daylight savings end time. STEP3: Click the [Apply] button of each setting to confirm the settings or click the [Reset] button to re-enter the parameters. NOTE: Once finished all settings, be sure to click the [Save Reboot] button, otherwise, some settings won’t take effect.

  • Page 27: Video Setting

    1.3.6 Video Setting This section tells you how to setup IP device’s video and streaming settings. STEP1: Click the [Video Setting] on the “Main Setup page”. The “Video setting page” is displayed as below ■ Video setting Parameters Description The camera name is reserved for customer use. Camera name Select the streaming mode.
  • Page 28 RTP B2 Frame Checkbox to enable the B2 frame in RTP streaming Enable Select enable or disable the audio function. Audio Select HIGH or LOW of the audio input sensitivity Input Sensitivity Select the multicast IP. Default settings is 228.5.6.1 Multicast IP Select the multicast TTL.
  • Page 29 Only) STEP3: Click the [Apply] button of each setting to confirm the settings or click the [Reset] button to re-enter the parameters. 1-27...

  • Page 30: Video Adjustment

    1.3.7 Video Adjustment This section tells you how to adjust the streaming video. STEP1: Click the [Video Adjust] on the “Main Setup page”. The “Video adjust page” is displayed as below STEP2: Set the heckbox to enable motion detection function. STEP3: Click the checkbox to enable motion detection for this region.
  • Page 31 STEP4: Set the sensitivity of motion detection regions. STEP5: Set the interval time of motion detection. . Within the interval time after the motion event is triggered, no motion event will be triggered. STEP6: Set the trigger threshold of motion detection regions. STEP7: In motion activity window the bar shows the motion activitiy status.

  • Page 32: Camera Setup (Cmos Camera Model)

    1.3.8 Camera Setup (CMOS camera model) This section tells you how to adjust the camera. STEP1: Click the [Camera Setup] on the “Main Setup page”. The “Camera Setup page” is displayed as below ■ Camera setting Parameters Description Checkbox to flip the video. Video Flipping Checkbox to mirror the video.
  • Page 33 3. INDOOR2: Select the indoor white balance profile 4. OUTDOOR1: Select the outdoor white balance profile 1. 5. OUTDOOR2: Select the outdoor white balance profile 2 6. HOLD CURRENT: Select this to let the IP camera automatically obtain a best white balance setting according to current environment.

  • Page 34: Camera Setup (Ptz Camera Model)

    1.3.9 Camera Setup (PTZ camera model) This section tells you how to adjust the camera. STEP1: Click the [Camera Setup] on the “Main Setup page”. The “Camera Setup page” is displayed as below ■ Camera setting Parameters Description Checkbox to flip the video. Video Flipping Checkbox to mirror the video.
  • Page 35 Select exposure mode. Auto: The IP camera will adjust the exposure automatically. Shutter Priority: The IP camera will adjust the exposure by shutter priority first. Exposure mode Iris Priority: The IP camera will adjust the exposure by Iris priority first. Manual: Manually select the Exposure Gain and Shutter Speed below.

  • Page 36: User Account Management

    1.3.10 User Account Management This section tells you how to setup the accounts. STEP1: Click the [User account] on the “Main Setup page”. The “Account management page” is displayed as below STEP2: Setup the account names and their respective passwords. There are 1 root (administrator) account and 10 common user...

  • Page 37: System Info

    1.3.11 System Info This section tells you how to see the system information of this IP device including system information, WAN status and system log. STEP1: Click the [System info] on the “Main Setup page”. The “System information page” is displayed as below STEP2: View the information at the 3 columns.
  • Page 38 STEP3: Click [Parameter List] where you may see all configurations of the IP device. STEP4: Click [Server Report] to export related information of the IP device while reporting a support to your support channel. 1-36...

  • Page 39: Firmware Upgrade

    1.3.12 Firmware Upgrade This section tells you how to see update IP device’s firmware. You can always visit our web site for the latest firmware. STEP1: Click the [Firmware] on the “Main Setup page”. The “Firmware upgrade page-1” is displayed as below STEP2: Click [Apply] button.
  • Page 40 You can always get the latest version at our website. You can upload the MD5 file here. Click the [browse] to select an MD5 file and click the [enter]. MD5 file You can always get the latest version at our website. NOTE: The version of the firmware image and the MD5 file to be uploaded must be the same, otherwise, the firmware upgrading will...

  • Page 41: Factory Default

    1.3.13 Factory Default This section tells you how to see load IP device’s factory default setting. STEP1: Click the [Factory Default] on the “Main Setup page”. The “Factory default setting page” is displayed as below STEP2: Click the [Apply] button to go to loading confirmation page or click the [Reset] button to exit to previous page.

  • Page 42: Save Reboot

    1.3.14 Save Reboot This section tells you how to save all the settings and reboot this IP device. This is critical because some settings might not take effect before save and reboot. STEP1: Click the [Save and reboot] on the “Main Setup page”. The “Save and reboot page”...

  • Page 43: Logout

    1.3.15 Logout This section tells you how to logout the IP device. Be sure to logout this IP device once your setting is completed. STEP1: Click the [Logout] on the “Main Setup page”. You will logout and return to the “Login Page” displayed as below. 1-41...
