LST FC600 Series Specifications

Diode Base Series FC600
FC600/BRD
• Suitable for automatic detectors in
conventional technology
• Integrated Schottky diode ensures
access to detectors following a base
with missing detector
• Designed for indoor surface
mounting
• Terminals for connection of external
remote indicator
• Anti-tamper locking feature
Description

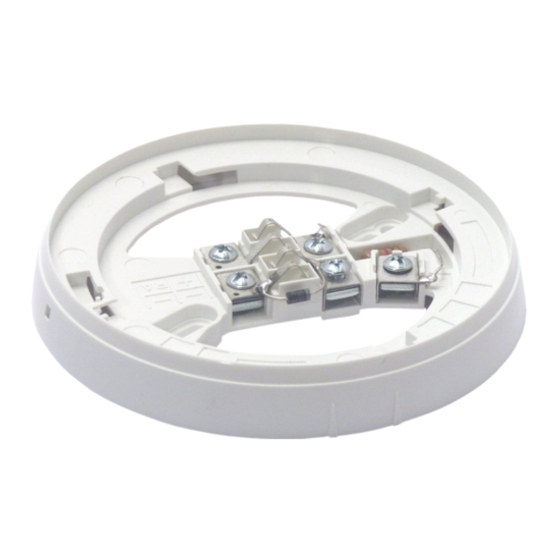

The detector base FC600/BRD is designed for the easy
connection of automatic detectors of Series FC600 in
conventional technology. Thanks to its robust sharable
connection terminals, the detectors can be durably wi-
red in secure screw joints with virtually no effort. The
base provides an easy connection option for an external
remote indicator and is designed for wall mounting in
dry rooms.
The integrated Schottky diode guarantees access to
detectors that follow a base where the detector is mis-
Specifi cations
Ambient temperature
Relative humidity
Dimensions ø × h
Colour
Weight
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
sing. In fi re detection systems with both automatic de-
tectors and manual call points connected to the same
detector line – provided that this feature is allowed by
local regulations, the diode ensures alarm detection
from detectors following the base.
By breaking out a plastic bolt in the base, the detector
that has been inserted can be secured against unautho-
rized removal.
-30°C to +70°C
5 – 95% (no condensation)
110 × 16 (mm)
white
36g
246071
Detector Base With Diode/FC600 FC600/BRD
A
FC600-BRD_DBL_LST_EN_0804.PDF • PAGE 1
