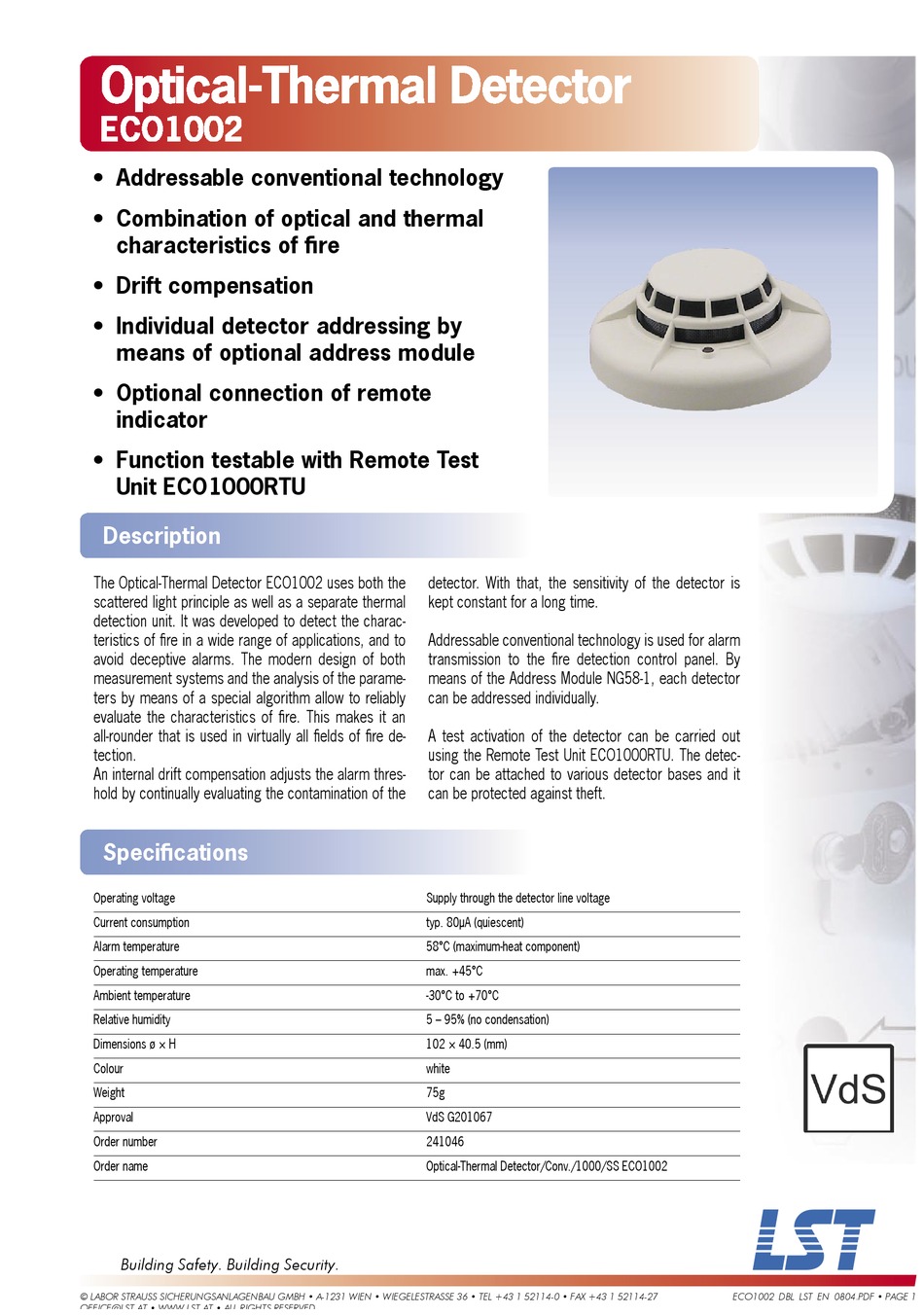

LST ECO1002 Specification Sheet

Optical-Thermal Detector
ECO1002
• Addressable conventional technology
• Combination of optical and thermal
characteristics of fi re

• Drift compensation

• Individual detector addressing by
means of optional address module
• Optional connection of remote
indicator
• Function testable with Remote Test
Unit ECO1000RTU
Description
The Optical-Thermal Detector ECO1002 uses both the
scattered light principle as well as a separate thermal
detection unit. It was developed to detect the charac-
teristics of fi re in a wide range of applications, and to
avoid deceptive alarms. The modern design of both
measurement systems and the analysis of the parame-
ters by means of a special algorithm allow to reliably
evaluate the characteristics of fi re. This makes it an
all-rounder that is used in virtually all fi elds of fi re de-
tection.
An internal drift compensation adjusts the alarm thres-
hold by continually evaluating the contamination of the
Specifi cations
Operating voltage
Current consumption
Alarm temperature
Operating temperature
Ambient temperature
Relative humidity
Dimensions ø × H
Colour
Weight
Approval
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
detector. With that, the sensitivity of the detector is
kept constant for a long time.
Addressable conventional technology is used for alarm
transmission to the fi re detection control panel. By
means of the Address Module NG58-1, each detector
can be addressed individually.
A test activation of the detector can be carried out
using the Remote Test Unit ECO1000RTU. The detec-
tor can be attached to various detector bases and it
can be protected against theft.
Supply through the detector line voltage
typ. 80µA (quiescent)
58°C (maximum-heat component)
max. +45°C
-30°C to +70°C
5 – 95% (no condensation)
102 × 40.5 (mm)
white
75g
VdS G201067
241046
Optical-Thermal Detector/Conv./1000/SS ECO1002
A
