- Page 1 United Kingdom U U ser Guide Gas Fired Wall Mounted Condensing System Boiler EcoBlue System 12 - 15 - 18 - 24 - 28 - 32 Please keep these instructions in a safe place. If you move house, please hand them over to the next occupier.
- Page 2 After Sales organization can assist with this. We hope you will receive many years of satisfactory service. © Baxi Heating UK Ltd 2015 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any...
-
Page 3: Table Of Contents
Contents Contents Introduction General Additional Documentation Symbols Used Abbreviations / Glossary Liabilities 1.5.1 Manufacturer’s Liability 1.5.2 Installer’s Responsibility 1.5.3 User’s Responsibility Safety General Safety Instructions Recommendations 2.2.1 Benchmark Commissioning Checklist Technical Specifications Technical Data Description of the Product General Description Operating Principle 4.2.1 In Operation... - Page 4 Contents Troubleshooting Error Codes Fault Finding Decommissioning Decommissioning Procedure Disposal 10.1 Disposal / Recycling Environmental 11.1 Energy Saving Warranty 12.1 General 12.2 Terms of Warranty 12.2.1 Standard Warranty Terms and Conditions Appendix 13.1 ErP Information 13.1.1 Product Fiche - Boiler Space Heaters 13.1.2 Package Fiche - Boilers EcoBlue System...
-
Page 5: Introduction
0800 408 5500 or online at www.gassaferegister.co.uk This manual is intended for the user of the Baxi EcoBlue System boiler. If the appliance is sold or transferred, or if the owner moves leaving the appliance behind you should ensure that the manual is kept with the appliance for consultation by the new owner and their installer. -
Page 6: Abbreviations / Glossary
Introduction Abbreviations / Glossary DHW: Domestic hot water CH: Central heating GB: Great Britain IE: Ireland BS: British standard HHIC: Heating and Hotwater Industry Council Pnc: Condensing output Extent of Liabilities 1.5.1. Manufacturer's Liability Our products are manufactured in compliance with the requirements of the various european applicable Directives. -
Page 7: Installer's Responsibility
Introduction 1.5.2 Installer's Responsibility The installer is responsible for the installation and initial start up of the appliance. The installer must adhere to the following instructions: Read and follow the instructions given in the manuals provided with the appliance. Carry out installation in compliance with the prevailing legislation and standards. -
Page 8: Safety
For advice please contact your Installer, Annual Service Provider or Baxi Customer Support - The Service Division of Baxi. You can contact Baxi Customer Support on telephone number 0344 871 1525. When contacting Baxi Customer Support it will be useful to have the ‘Benchmark Checklist’... -
Page 9: Recommendations
Safety Recommendations CAUTION Only qualified professionals are authorised to work on the appliance and the installation. The appliance has an integral frost protection mode as long as there is power to the boiler. Regularly check the water pressure in the system (recommended pressure is 1.5 bar). -
Page 10: Technical Specifications
Technical Specifications Technical Specifications Technical Data 12/15/18/24/28 Electrical Supply 230V~ 50Hz Central Heating Primary Circuit (Appliance must be connected to an Pressures earthed supply) Safety Discharge Electrical Protection Max Operating IPX5D (without integral timer) Min Operating IP20 (with integral timer) Recommended Operating Range External Fuse Rating Temperatures... - Page 11 Technical Specifications Technical Specifications Technical Data 32 Electrical Supply 230V~ 50Hz Central Heating Primary Circuit (Appliance must be connected to an Pressures earthed supply) Safety Discharge Electrical Protection Max Operating IPX5D (without integral timer) Min Operating IPX20 (with integral timer) Recommended Operating Range External Fuse Rating Temperatures...
-
Page 12: Description Of The Product
Description of the Product Description of the Product General Description 1. The Baxi EcoBlue System boilers are fully automatic gas fired wall mounted condensing boilers. They are room sealed and fan assisted, and will serve central heating and stored domestic hot water. -

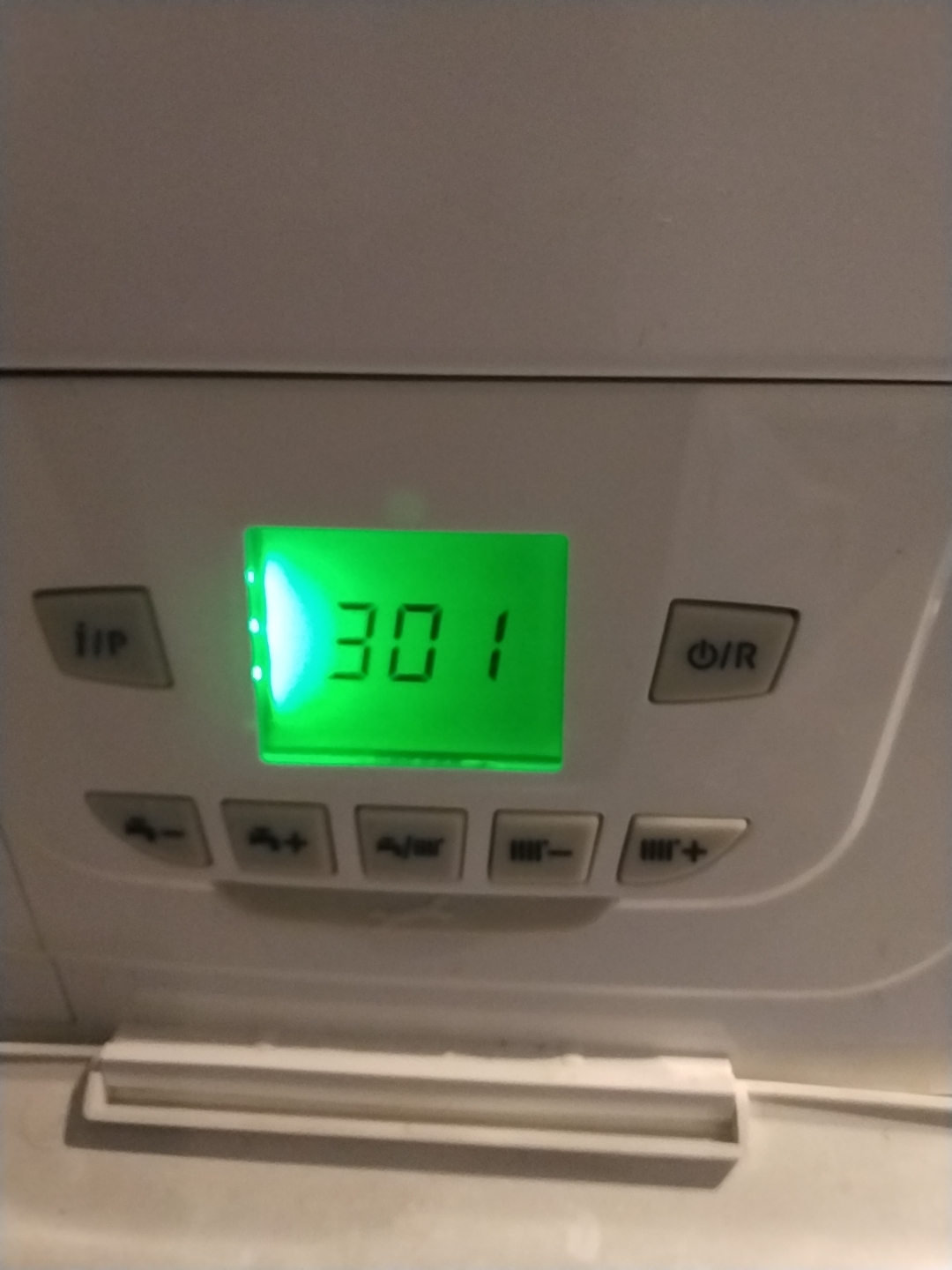

Page 13: Control Panel Description
Description of the Product Control Panel Description Key to Controls Standby - Reset - Esc Button Standby - Reset - Esc Boiler Information View Boiler Information View Button Increase CH Temperature Button Decrease CH Temperature Button Inactive Button Except when an outdoor sensor relay kit is connected Inactive Button... -
Page 14: Standard Delivery
3M Condensate Drain Pipe ‘Trace Heating’ Element 5M Condensate Drain Pipe ‘Trace Heating’ Element Any of the above MUST be fitted ONLY by a qualified competent person. Further details can be found in the relevant sales literature and at www.baxi.co.uk EcoBlue System 7219712 - 01 (02/15) -
Page 15: Operation
Operation Operation Shutdown 1. If it is anticipated that the boiler will not be used for a long period or the property is to be unoccupied it is recommended that the system drained if the electricity & gas supplies are to be turned off. -
Page 16: Operation Checking Procedure & Basic Fault Identification
Operation Operation Checking Procedure & Basic Fault Identification START Is there electricity to the Is the Burner Flame Make sure the gas boiler ? Is the display lit ? showing. supply is turned ON and check if other gas appliances are operating (e.g. - Page 17 Operation Is the E and R symbol Is the Spanner symbol illuminated or flashing ? illuminated or flashing ? Flame Reset Error Failure Symbol Code Spanner Error Symbol Symbol Press the Reset Button CONTACT YOUR If it does not reset INSTALLER OR SERVICE ENGINEER.
-
Page 18: Settings
Settings Settings Setting the Boiler Temperature 6.1.1 Boiler Flow Temperature Button Button To increase or decrease the boiler temperature:- 1. Press to increase the boiler flow temperature. 2. Press to decrease the boiler flow temperature. This sets the temperature at which the heated water flows from the boiler. -
Page 19: Maintenance
Maintenance Maintenance General 1. The boiler does not require any special maintenance. However, the boiler must be serviced annually in accordance with the Installation and Service Manual and the relevant section of the Benchmark Service Record completed in order to maintain the warranty. -
Page 20: Repressurising The System
12. If blanking caps are available fit them to the taps. Go to the ‘How to videos’ section of the ‘Information & advice’ page at www.baxi.co.uk for further details. 13. When the correct pressure is restored the boiler will reset automatically. -
Page 21: Venting The System
Maintenance Venting the System 1. If any air is present in the appliance or system it must be removed in order to prevent nuisance noises that may occur during heating or when drawing off hot water. Proceed as follows: Open the valves of all the radiators connected to the system. -
Page 22: Draining The System
Maintenance Draining the System 1. It may be necessary to drain the CH system if radiators need to be replaced or removed, if there is a major water leak or if there is a risk of freezing. Proceed as follows: Open the valves of all the radiators connected to the system. -
Page 23: Troubleshooting
When the spanner is displayed the error cannot be reset by the user. Please contact your Installer, Annual Service Provider or Baxi Customer Support - The Service Division of Baxi to arrange your Annual Service. You can contact Baxi Customer Support on 0344 871 1525. -
Page 24: Fault Finding
Troubleshooting Fault Finding 1. If the boiler is not working also check section 5.3 Operation Checking Procedure & Basic Fault Identification or contact your Installer. Problem Possible Causes Solution Check that the boiler is being supplied with power. The boiler is not working. Check fuses and the switches. -
Page 25: Decommissioning
Decommissioning / Disposal 9/10 Decommissioning Decommissioning Procedure CAUTION Only qualified professionals are authorised to work on the appliance and installation. 1. If you the boiler needs to be decommissioned either temporarily or permanently the following should be performed: • Switch off the boiler. •... -
Page 26: Environmental
Environmental Environmental 11.1 Energy Saving Tips on saving energy: Do not cover radiators. Do not hang curtains in front of radiators. Install reflective panels behind the radiators to prevent heat losses. Insulate the pipes in rooms that are not heated (cellars and lofts). -
Page 27: Warranty
12.2 Terms of Warranty 12.2.1 Standard Warranty Terms and Conditions Warranty Registration, Service & Repair For full terms and conditions, visit www.baxi.co.uk/terms. Benchmark Checklist The Benchmark Checklist will be completed by your installer and records that the boiler has been installed and commissioned correctly. - Page 28 If you experience a problem with your boiler For any in or out of warranty repair, Baxi Customer Support is on hand to help you. Call our award-winning team to arrange for one of our nationwide team of Gas Safe registered engineers to visit.
-
Page 29: Appendix
Appendix Appendix 13.1 ErP Information 13.1.1. Product Fiche - Boiler Space Heaters Product fiche for boiler space heaters Baxi EcoBlue System ErP Seasonal space heating energy efficiency class Rated heat output (Prated or Psup) Seasonal space heating energy efficiency 10323... -
Page 30: Package Fiche - Boilers
Appendix 13.1.2. Package Fiche - Boilers Package fiche for boilers indicating the space heating energy efficiency of the package fi f ‘I’ I I I Class IV = 2%, Class V = 3%, Class VI = 4%, c fi Class VII = 3.5%, Class VIII = 5% c fi... - Page 31 (1) The intermediate values are calculated by linear interpolation between the two adjacent values. (2) Prated is related to the preferential space heater or combination heater. Package efficiency Baxi EcoBlue System ErP Temperature control X Temperature control Y 7219712 - 01 (04/15)
- Page 32 For the warranty to be maintained, please make sure... Benchmark checklist is completed Warranty is registered with Baxi The boiler has an annual service For full terms and conditions, visit www.baxi.co.uk/terms. Failure to adhere to terms and conditions will void your manufacturer’s warranty. Baxi Brooks House,...
