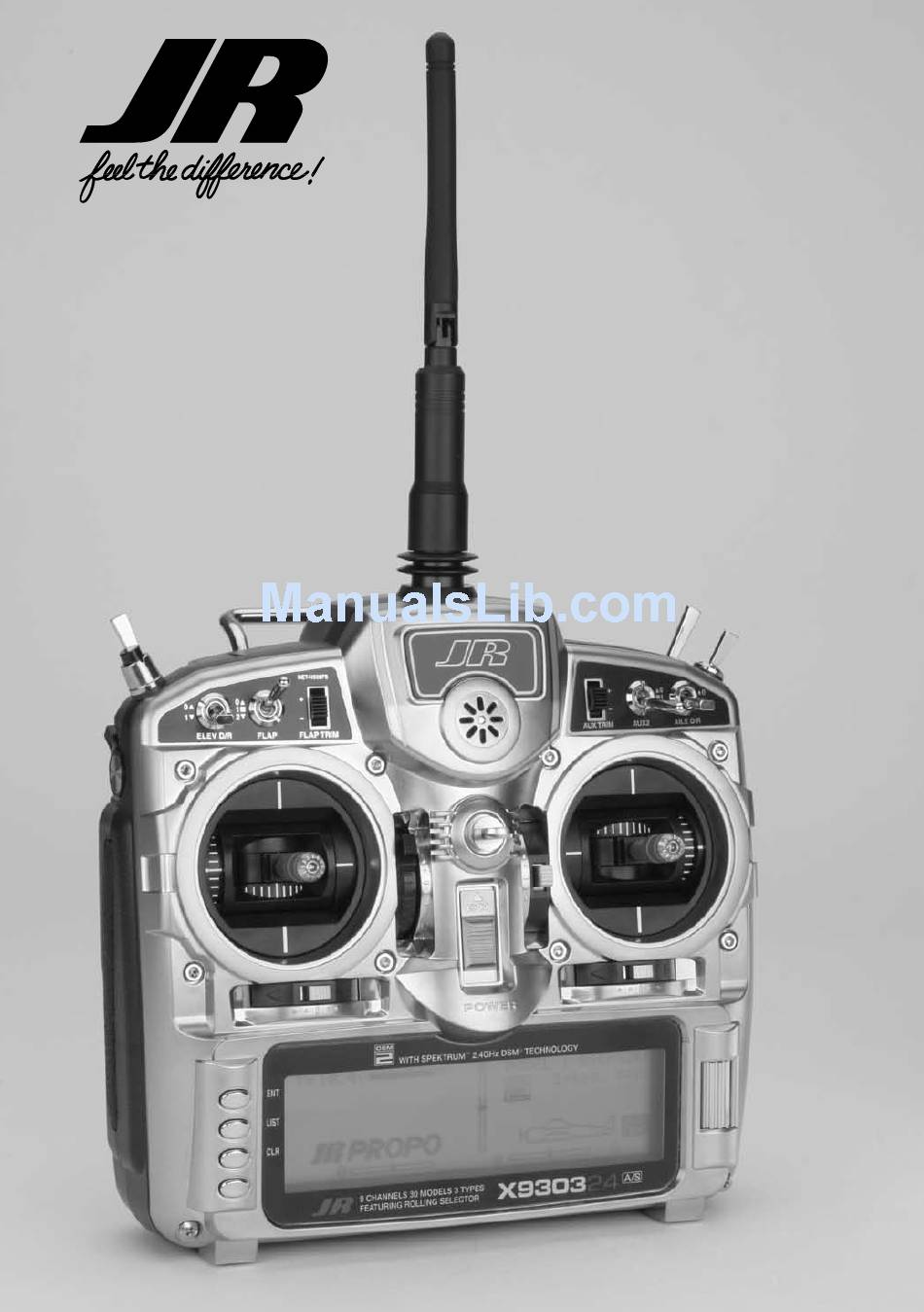

X9303 2.4
9-CHANNEL COMPUTER RADIO
SYSTEM WITH SPEKTRUM 2.4GHz DSM
TECHNOLOGY
INSTRUCTION AND
PROGRAMMING MANUAL
