Page 1: Ceiling Fan

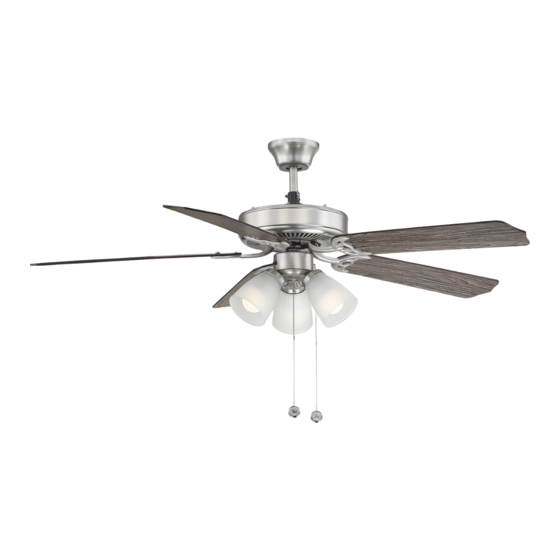

CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-EUP-5RV-WH 52-EUP-5RV-13 52-EUP-5RV-SN FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-552A... -
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutter 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (5) b. Hanger bracket c. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN REMEMBER to turn off the power. Follow CUL Listed the steps below to hang your fan properly. electrical box NOTE: This ceiling fan is supplied with two Hanger bracket types of hanging assemblies; the standard ceiling installation using the downrod with ball and socket mounting and the Mounting screws "close-to-ceiling"... - Page 6 CLOSE-TO-CEILING INSTALLATION 1. Pass the 120-volt supply wires through the center hole in the ceiling hanger Canopy bracket as shown in Fig. 5. Decorative canopy cover 2. Remove the decorative canopy cover Figure 8 from the canopy by turning canopy cover counterclockwise.
-
Page 7: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 11. Figure 11 7. -
Page 8: Finishing The Installation
NOTE: LIGHT KITS ARE AVAILABLE AT YOU POWER LINES 120V SAVOY HOUSE RETAILER. THE FAN IS ALREADY WIRED TO SUPPORT THE LIGHT GREEN GROUND KIT OPTION. WIRING LIGHT WARNING: TO REDUCE THE RISK OF FIRE, GROUND TO MOUNTING ELECTRIC SHOCK, OR OTHER PERSONAL... -
Page 9: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1. Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 17. Start screw into bracket. Repeat for the two remaining screws. -
Page 10: Installing The Light Bulbs & Glass Shade
11. INSTALLING THE LIGHT BULBS & GLASS SHADE 1. Mount the glass shades to the light fixture by unscrewing partway the thumb screws on the glass holders, inserting the glass, then gently tightening the thumb screws by hand evenly to the glass. DO NOT OVER TIGHTEN. -
Page 11: Operating Your Fan
13. OPERATING YOUR FAN NOTE: Wait for fan to stop before changing the setting of the slide switch. Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1 pull- High, 2 pulls-Medium, 3 pulls- Low, and 4 pulls-Off. -
Page 12: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds 1. Make sure all motor housing screws are snug. noisy.
